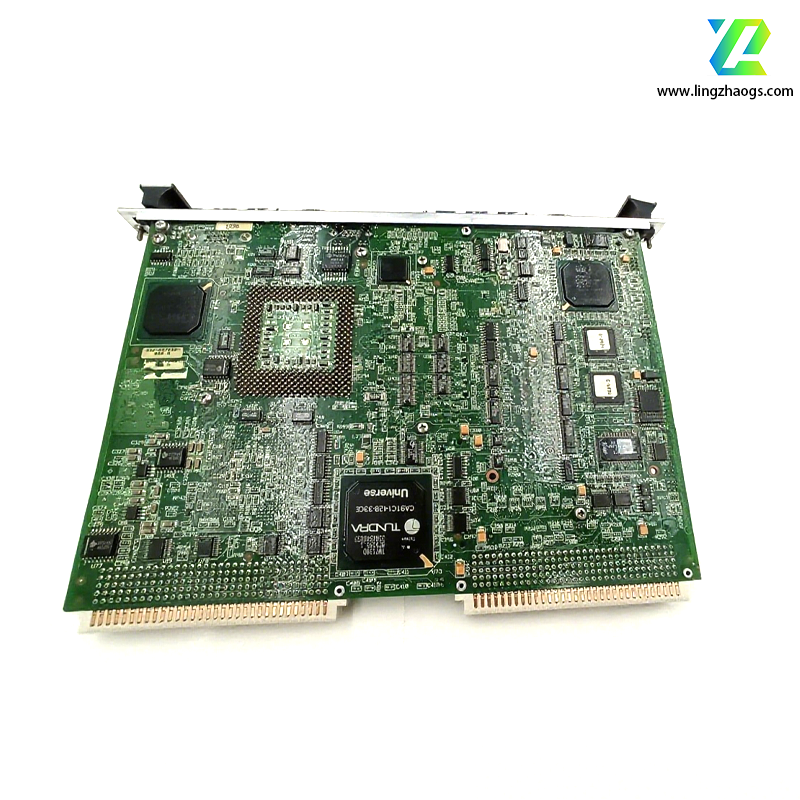

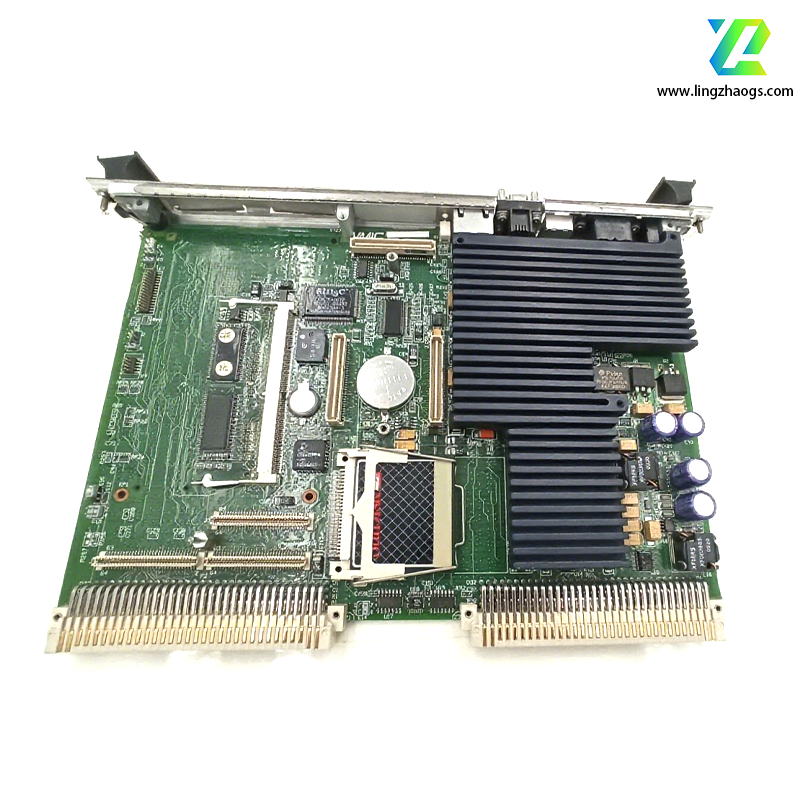

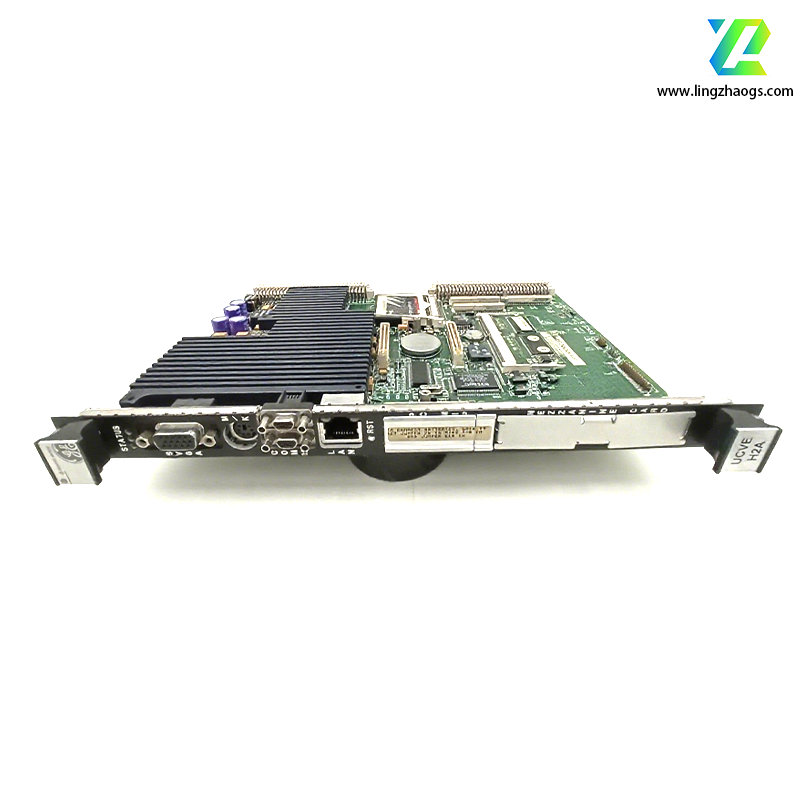

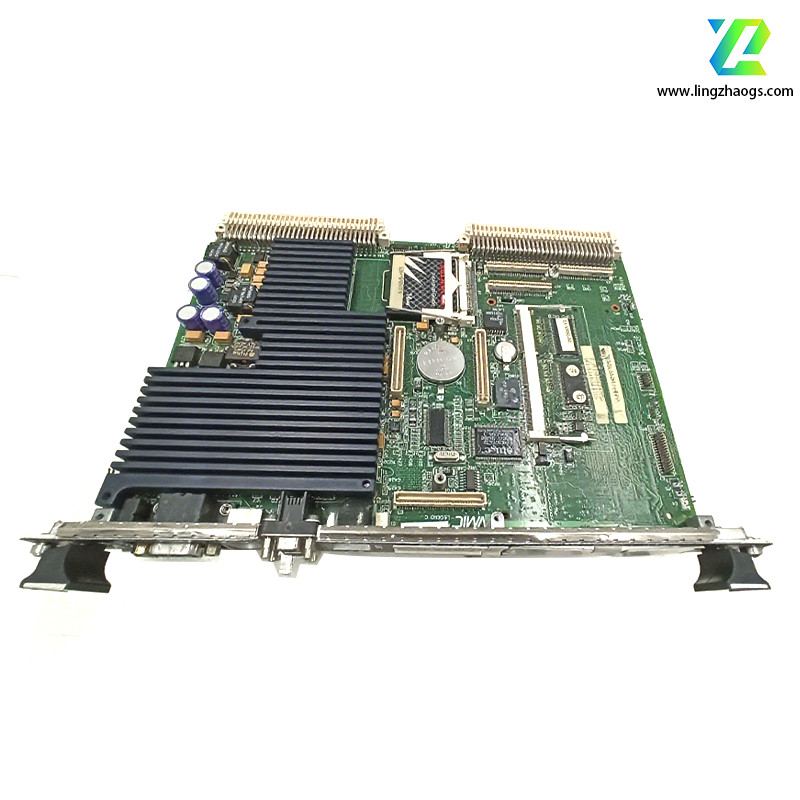

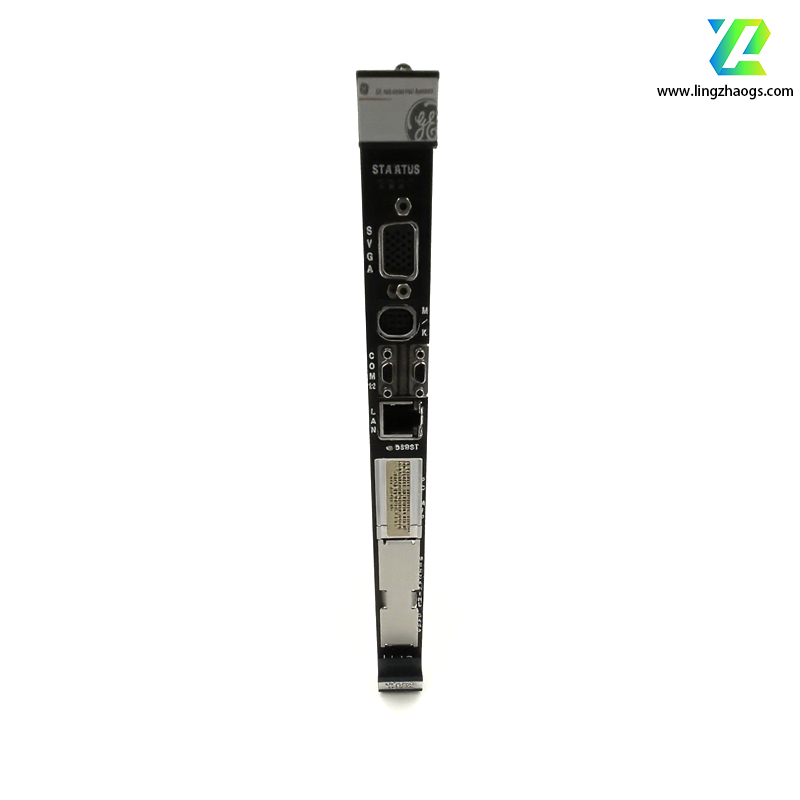

The VMIVME-7614-132 is an industrial-grade data acquisition and control module based on the VME bus standard, part of GE Fanuc's (now part of Emerson Automation Solutions) VMIVME product series. This module is primarily used in industrial automation and test measurement systems requiring high-precision signal processing and real-time control, particularly in fields such as power, energy, and aerospace where reliability is critical. Below is its detailed information:
- Module Type: VME bus data acquisition and control module, integrating analog input/output and digital I/O functions.
- Analog Input (AI):
- Channel Count: Typically provides 16 single-ended or 8 differential analog inputs (specific configuration varies slightly by model).
- Input Types: Supports voltage (e.g., ±10V, ±5V) and current (e.g., 4-20mA) signals.
- Resolution: 16-bit high-precision A/D conversion, ensuring accuracy in signal acquisition.
- Sampling Rate: Up to 100kHz per channel, with support for multi-channel synchronous sampling.
- Analog Output (AO):
- Channel Count: Generally 4 or 8 analog outputs.
- Output Range: Supports voltage (e.g., ±10V) and current (e.g., 4-20mA) outputs, with typical accuracy of ±0.1% of full scale.
- Digital I/O: Equipped with several (e.g., 16) isolated digital input/output channels, supporting TTL/CMOS levels for switch control or status monitoring.
- VME Bus Interface: Compatible with VMEbus Rev. C.1 standard, supporting 32-bit data transmission with a bus speed of up to 40MB/s, ensuring high-speed communication with VME hosts.
- Power Requirement: Typically requires ±5V and ±12V DC power supply (specific parameters refer to the manual), with power consumption adapting to industrial power specifications.
- Operating Environment:
- Operating temperature: 0°C to 60°C
- Storage temperature: -40°C to 85°C
- Humidity: 5% to 95% RH (non-condensing)
- Anti-interference: Features optical isolation and filtering design, compliant with industrial-grade EMC standards, suitable for strong electromagnetic interference environments.
- High-Precision Data Acquisition: 16-bit A/D converters combined with low-noise signal conditioning circuits ensure measurement accuracy over a wide range, meeting precision testing and control requirements.
- Multi-Channel Synchronous Sampling: Supports simultaneous sampling across multiple channels, capturing transient signals or phase-related multi-parameters (e.g., three-phase electrical signals), ideal for dynamic process analysis.
- Flexible Signal Adaptation: Software-configurable to adapt to different input signal types (voltage/current) and ranges, enabling adaptation to diverse scenarios without hardware modifications.
- VME Bus Advantages: Leverages the high reliability and real-time performance of the VME bus, allowing integration with other VME modules (e.g., processors, communication modules) to form distributed control systems for complex industrial logic.
- Diagnostic and Protection Functions: Built-in self-diagnostic circuits monitor module power supply and channel status. Some models include overvoltage/overcurrent protection to prevent damage from abnormal external signals.
- Real-time monitoring of multi-parameters in industrial process control (e.g., acquisition of analog signals such as temperature, pressure, flow).
- Condition monitoring and control of motors and transformers in power systems, collecting key parameters like voltage and current.
- Test benches in aerospace and defense sectors for equipment performance testing and data logging.
- Closed-loop control in automated production lines, driving actuators (e.g., valves, servo motors) via analog outputs.
- Cooperation with VME bus hosts (e.g., VMIVME-7805 processor modules) to build highly reliable distributed measurement and control systems.
- Compatible with VME bus-standard industrial computers or controllers, seamlessly integrating with other VMIVME series modules (e.g., digital modules, communication modules).
- Supports programming and configuration via the VME bus, providing standard drivers and APIs compatible with development environments such as LabVIEW and C/C++, facilitating rapid application development.
- Some models support industrial protocols like MODBUS (with a communication module), enabling integration into SCADA systems for remote monitoring.
With its high precision, reliability, and flexibility of the VME bus, the VMIVME-7614-132 serves as a key component in industrial measurement and control, particularly in scenarios demanding high stability and real-time performance.
