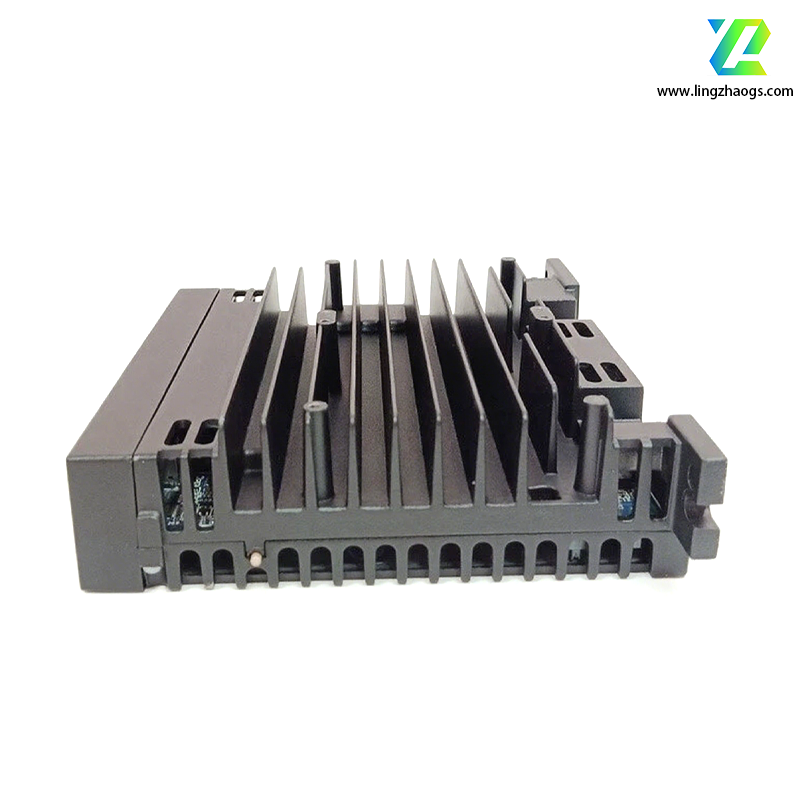

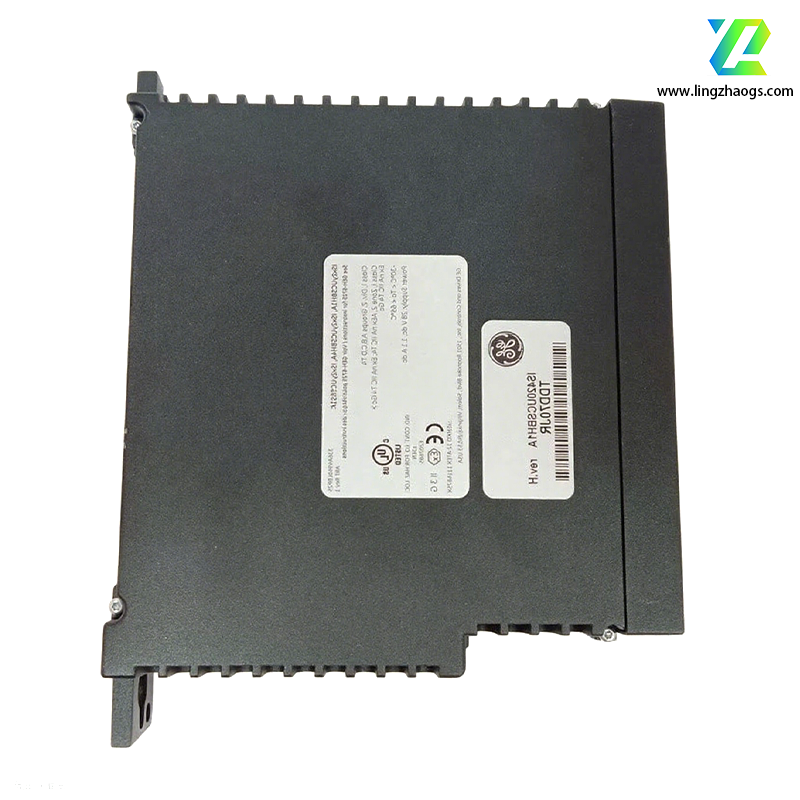

The IS420UCSBH1A is a high-performance Processor Module in GE's Mark VIe series control systems. It is primarily used for core control and data processing of large industrial rotating machinery (such as gas turbines, steam turbines, and generator sets), serving as a key component in the Mark VIe system responsible for complex control logic operations and system coordination. Below is its detailed information:
- Module Type: Main processor module, acting as the central control unit of the Mark VIe system, supporting redundant configuration to ensure high reliability.
- Processor Performance: Equipped with a high-performance industrial-grade processor (typically PowerPC architecture) with a high clock speed (typically above 1GHz), featuring strong parallel processing capabilities to quickly execute complex control algorithms (such as turbine speed regulation, load distribution, combustion optimization, etc.).
- Memory Configuration:
- Program memory: Usually 1GB or higher, used for storing control programs, algorithm libraries, system configuration files, and diagnostic data.
- Data memory: Supports large-capacity real-time data caching (e.g., 512MB DDR) to meet high-speed access requirements for multi-channel I/O data, process variables, and intermediate calculation results.
- Communication Interfaces:
- Built-in high-speed backplane bus interface for microsecond-level data interaction with in-system I/O modules, power modules, etc.

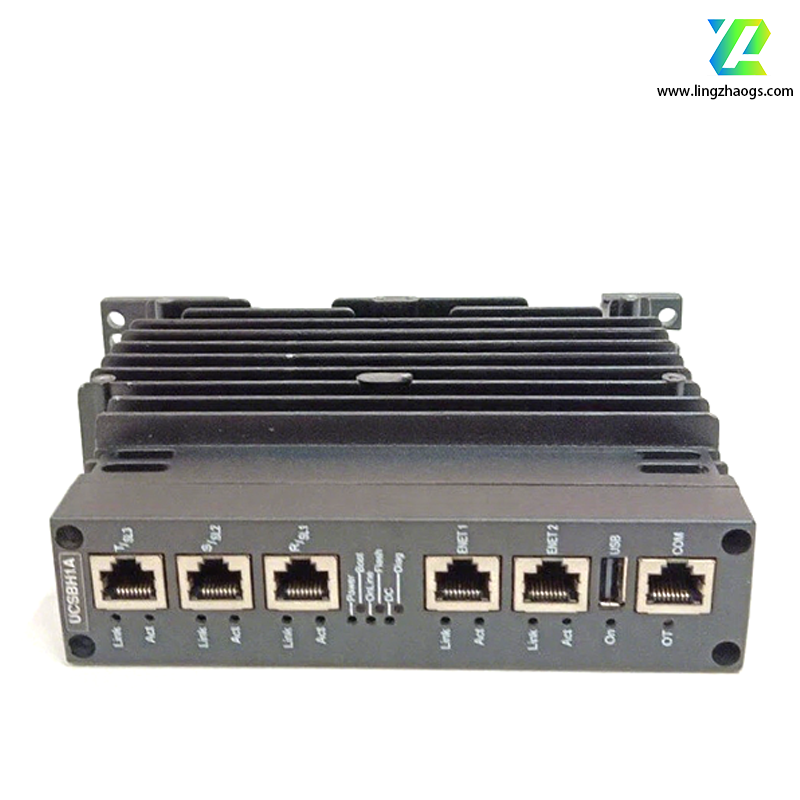

- Supports redundant industrial Ethernet interfaces (e.g., EtherNet/IP) for connecting HMIs, SCADA systems, engineering stations, and other external devices, with data transmission rates up to 100/1000 Mbps.
- Compatible with the dual-redundant communication architecture of the Mark VIe system, ensuring reliable transmission of control commands and status data.
- Power Requirement: Powered by a system redundant power module (e.g., IS220PPROS1B) with stable 24VDC, equipped with overvoltage and overcurrent protection, with power consumption adapting to system power specifications.
- Operating Environment:
- Operating temperature: 0°C to 55°C
- Storage temperature: -40°C to 85°C
- Humidity: 5% to 95% RH (non-condensing)
- Anti-interference capability: Complies with industrial-grade EMC standards, featuring robust design to resist electromagnetic interference, vibration, and dust, suitable for harsh industrial environments such as power plants and heavy industry facilities.
- Advanced Control Capability: Supports complex turbine control strategies, including speed control, load management, combustion stability control, and startup/shutdown sequences, ensuring precise and stable operation of large rotating machinery.
- Redundancy and Fault Tolerance: Configurable as a dual-redundant system, where the standby module automatically and seamlessly takes over in case of a primary module failure, minimizing system downtime and meeting the high availability requirements of critical industrial processes.
- High-Speed Data Processing: Enables real-time processing of massive I/O data (from modules such as IS200VTCCH1CBB and IS220PRTDH1A) with ultra-low latency, ensuring timely execution of control actions and rapid response to dynamic changes in equipment status.
- Comprehensive Diagnostics: Integrates advanced self-diagnostic functions to monitor hardware health, program execution status, and communication links in real time. Fault information is transmitted to the upper-level system via the network, facilitating quick troubleshooting and predictive maintenance.
- Flexible Programming and Integration: Supports configuration and programming through GE's ControlST software, compatible with standard industrial control languages (e.g., Function Block Diagram, Structured Text), enabling custom control logic development and easy integration with other system components.
- Core control of gas turbines and steam turbines in power generation, including speed regulation, load distribution, and protection logic execution.
- Coordinated control of generator sets in thermal power plants, combined cycle power plants, and renewable energy facilities.
- Automation control of large rotating machinery in petrochemical, metallurgical, and marine industries, ensuring safe and efficient operation.
- Integration with Mark VIe I/O modules, communication modules (e.g., IS420ESWBH2A), and HMI systems to form a complete control solution for complex industrial processes.
- Exclusively designed for the GE Mark VIe control system, requiring compatibility with the series' backplanes, power modules, I/O modules, and communication components.
- Seamlessly integrates with GE's Proficy software suite (including Proficy Machine Edition and Proficy Historian) for enhanced monitoring, data analysis, and system management.
- Supports communication with third-party systems (e.g., DCS, MES) via standard industrial protocols, enabling interoperability in complex industrial ecosystems.
As a high-performance processor module, the IS420UCSBH1A plays a pivotal role in ensuring the reliability, precision, and efficiency of large industrial rotating machinery, making it an indispensable component in modern industrial automation systems.
