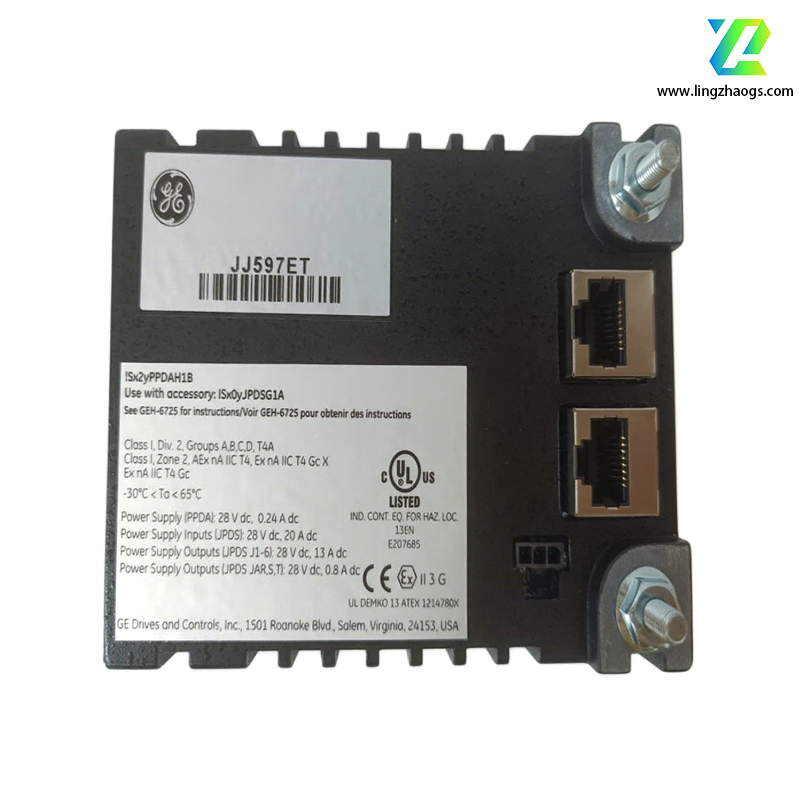

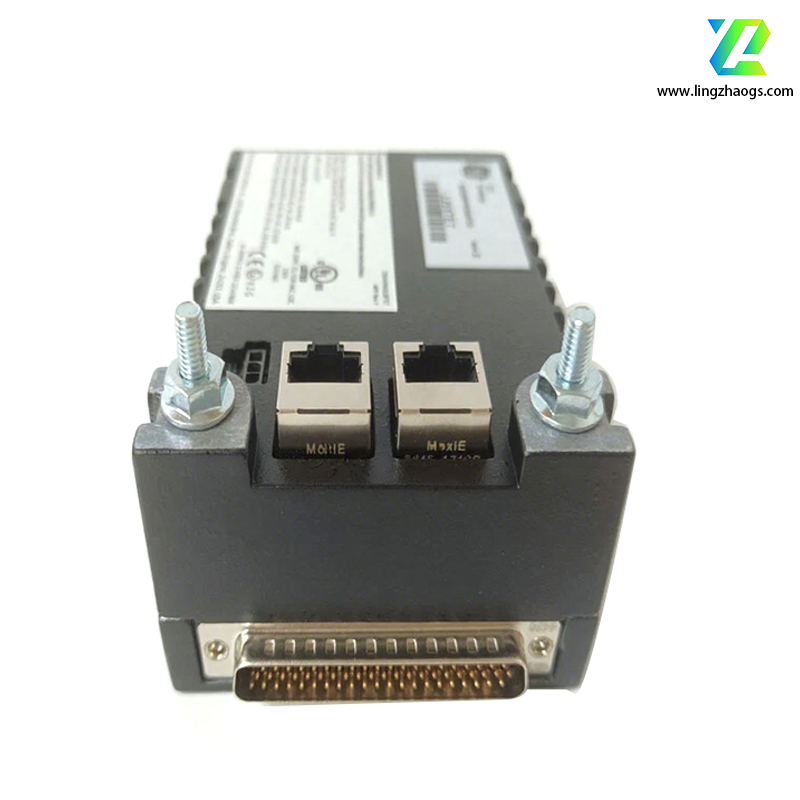

Details of IS220PPDAH1B

1. Core Specifications

• Module Type: Power distribution module, a key power management component of the Mark VIe system.
• Input Power: Typically supports AC input (e.g., 115/230VAC, 50/60Hz); specific parameters should refer to the system power configuration.
• Output Power: Provides multiple DC outputs, typically 24VDC, to supply power to Mark VIe series I/O modules, communication modules, etc. The output current capacity is adapted to the power consumption requirements of system components.
• Protection Functions: Equipped with overcurrent protection, short-circuit protection, overvoltage protection, etc. It can quickly cut off the output when abnormal power conditions are detected, preventing damage to downstream modules.
• Redundancy Support: Configurable as a redundant power architecture, forming dual-path power supply with another identical module to improve the reliability of the system power supply and avoid system shutdown caused by single-point failures.
• Operating Environment:
  • Operating temperature: 0°C to 55°C
  • Storage temperature: -40°C to 85°C
  • Humidity: 5% to 95% RH (non-condensing)
  • EMI resistance: Complies with industrial-grade standards, suitable for high-interference environments such as power plants and chemical factories.

2. Features

• Stable Power Supply Guarantee: Adopts high-precision power conversion and voltage regulation technology to ensure the stability of output voltage (e.g., 24VDC±5%), meeting the strict requirements of control systems for power quality.
• Centralized Power Management: Realizes multi-channel power distribution through a single module, simplifying system wiring and facilitating maintenance personnel to centrally monitor power status.
• Status Monitoring and Indication: Equipped with LED indicators to display real-time input/output power status, fault alarms, etc. (e.g., normal power, overcurrent, short circuit), facilitating quick troubleshooting of power issues.
• Hot-Swappable Support: Supports hot-swappable functionality in some configurations, allowing module replacement during system operation to reduce maintenance downtime (specific operating specifications must be followed).
• Compatibility Design: Specifically developed for the Mark VIe control system, it seamlessly integrates with the same series of CPU modules (e.g., IS200CPUH1B), I/O modules (e.g., IS200VTCCH1CBB), ensuring matching of the overall system power supply.

3. Typical Applications

• Power distribution and management in gas turbine and steam turbine control systems (Mark VIe system).
• Providing power supply support for core control modules in automation control systems of thermal power plants and combined cycle power plants.
• Ensuring stable power supply for key I/O components in large rotating machinery control systems in petrochemical, metallurgical, and other industries.
• Serving as part of a redundant power system for industrial control scenarios with extremely high reliability requirements.

4. System Integration and Compatibility

• Exclusively applicable to the GE Mark VIe control system, requiring compatibility with the series' backplane, power input modules, and load modules.
• Supports uploading power status data to the main controller via the system diagnostic bus, facilitating remote monitoring of power health.
• Needs to work with GE ControlST software for system configuration to ensure the power distribution scheme matches the load requirements.
