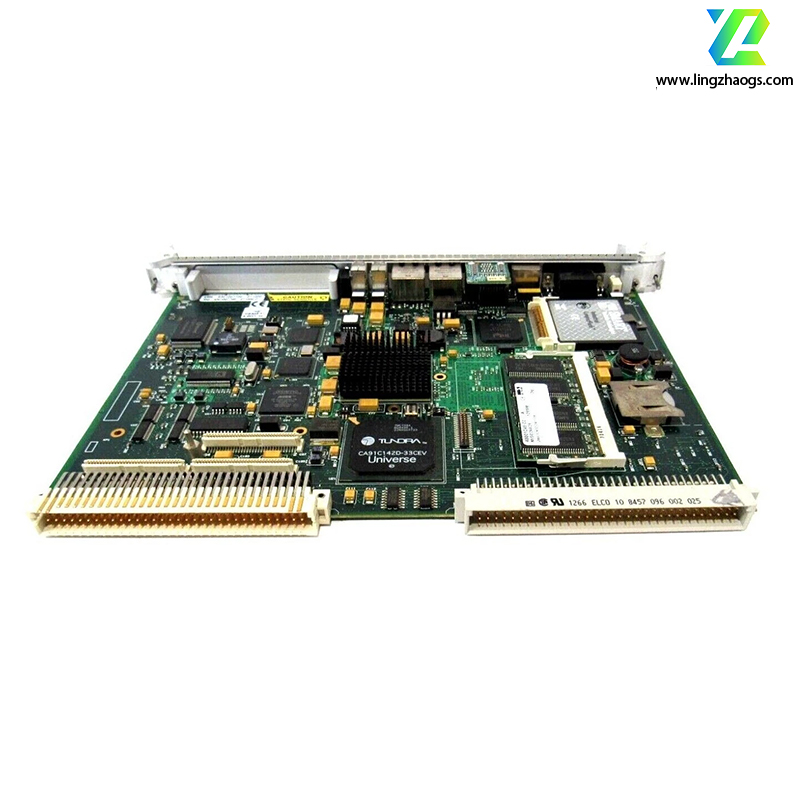

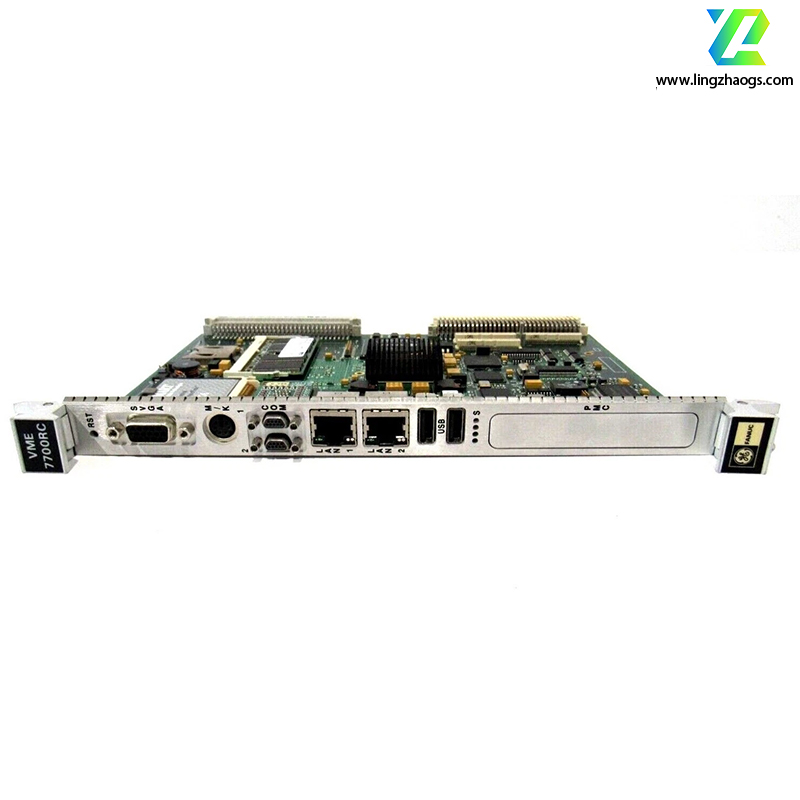

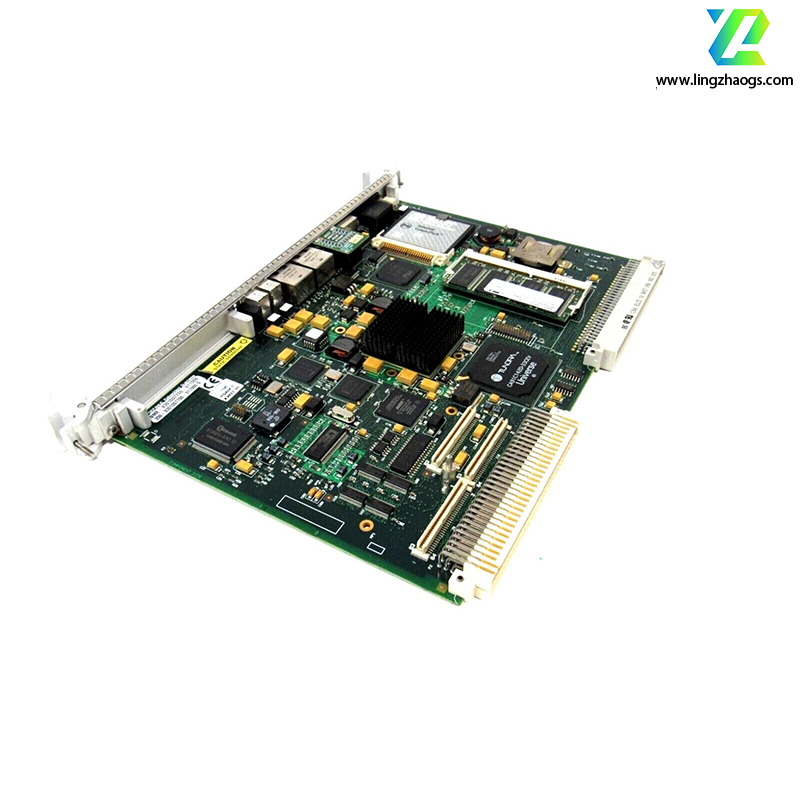

The GE VME7700RC is a VME bus single-board computer based on the Intel Ultra-Low Voltage Celeron processor. The following is its detailed information:
- Dimensions: 263mm × 58mm × 28mm
- Weight: 4.3kg
- Operating Temperature Range: 0°C to +70°C
- Country of Origin: United States
- Type: Intel Ultra-Low Voltage Celeron processor, available in two options: 400MHz or 650MHz
- Cache: Up to 256KB of on-chip L2 cache
- System and Memory Bus: 100MHz SDRAM
- Maximum Memory Configuration: 512MB PC-100 SDRAM
- Storage: On-board socket supports up to 1GB of CompactFlash (CF) memory, which can be set as a boot device via BIOS
- Ethernet: Two 10BaseT or 100BaseTX Ethernet interfaces, connected to RJ45 connectors on the front panel
- USB: Two USB ports, both connected to the front panel, supporting isochronous data transmission, asynchronous message passing, peripheral self-identification and configuration, and dynamic (hot) connection
- Others: One PMC (PCI Mezzanine Card) expansion site for increasing I/O; supports VME64 mode; two 16-bit and two 32-bit programmable timers; 32KB non-volatile SRAM
- High Performance with Low Power Consumption: Based on the Intel Ultra-Low Voltage Celeron processor and 815 chipset, it delivers high performance while maintaining low power consumption
- Compact Design: Adopts a 6U single-slot Eurocard form factor, featuring a small size that is suitable for application scenarios with limited space
- Integrated Multiple Functions: As a full-function single-board computer, it integrates multiple functions including processor, memory, and I/O interfaces, and can serve as the core controller of embedded systems
- Strong Communication Capability: Equipped with communication interfaces such as Ethernet and USB, facilitating data transmission and communication with other devices; supports application protocols like SRTP and Modbus TCP/IP to provide real-time links for connected systems
- Industrial Automation: Can be used in scenarios such as process control, machine vision, and motion control to realize monitoring and control of industrial production processes
- Test and Measurement: Suitable for instruments, meters, and test systems to perform data acquisition, signal processing, and analysis
- Military and Defense: Its excellent thermal characteristics and compact design make it an ideal choice for low-power, heat-sensitive applications in the military and defense fields, such as radar and communication equipment.
