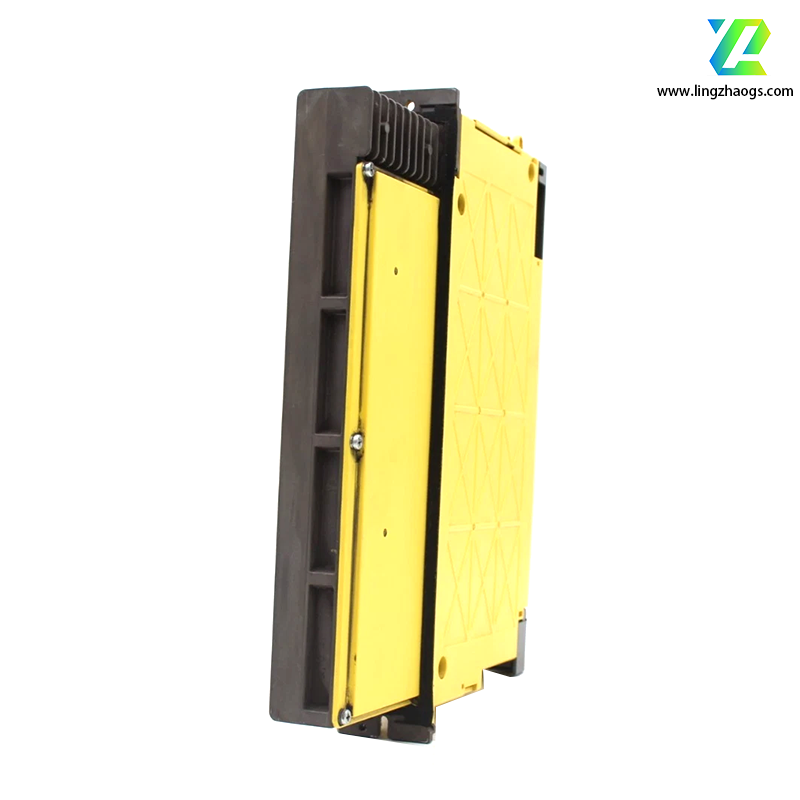

The following is the detailed information about FANUC A06B-6240-H105 in English:
- Part Number: A06B-6240-H105
- Part Title: Servo Amp Module AISV 80-B
- Product Series: A06B - 6240
- Manufacturer: FANUC
The FANUC A06B-6240-H105 is a top - tier servo amplifier designed to provide precise control and efficient power management in CNC machinery. Engineered for reliability and durability, this servo drive ensures smooth and accurate machine movements. As part of the AISV 80 category, it offers robust performance in industrial automation applications, particularly within the 30i - b series.
- Power Input
- Input Voltage: 283 - 339 VDC
- Output Voltage: 200 - 240 VAC
- Current: 19.5 A, with L/M/N axis specifications allowing for a maximum output current of 22.5 A
- Phase: 3 - ph
- Frequency: 0 - 550 Hz
- Other Specifications
- Amp Width: 60 mm.
- Weight: 5 kg
- Compatible Controllers: For use with FANUC R - 30iB & R - 30iB plus controllers.
- Compatible Servo Motors: α if: 12/3000, 22/3000; α is: 8/4000, 8/6000, 12/4000.
- Availability: Available, but the lead time needs to be inquired by phone.
- Core Exchange: Required.
- Repair: Available.
