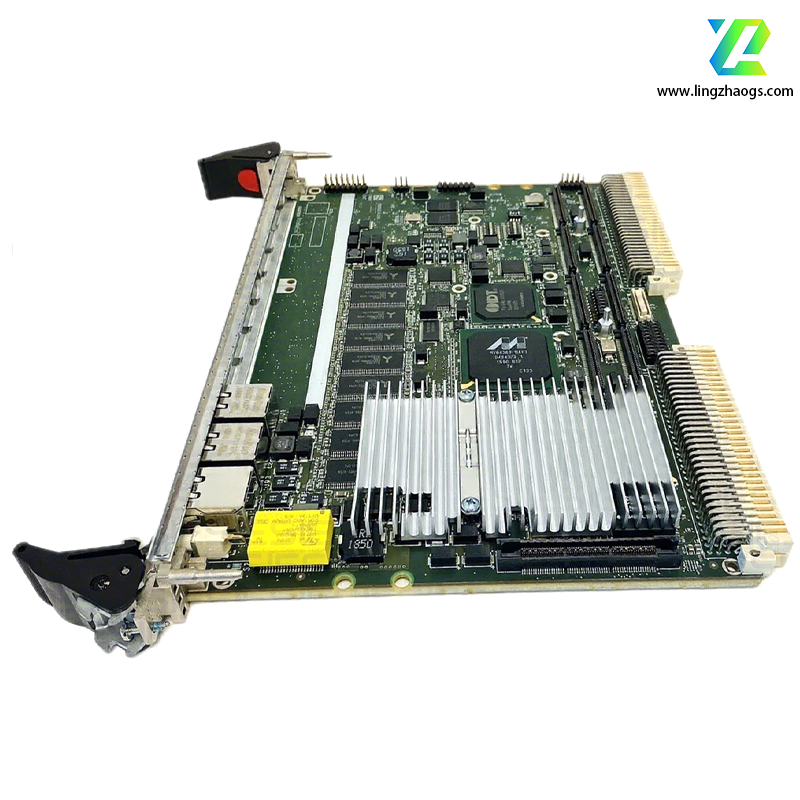

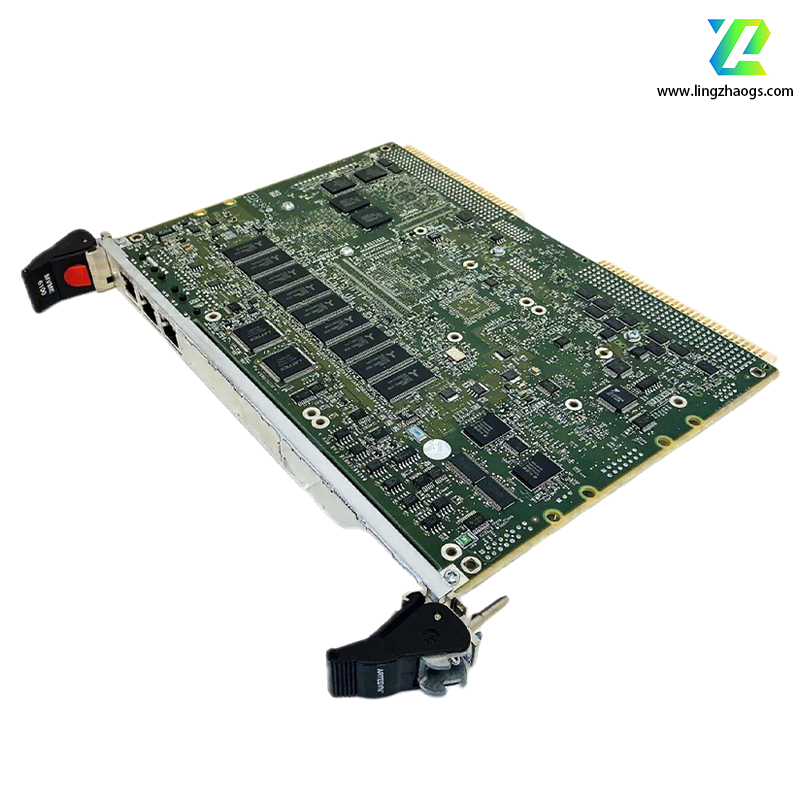

The Emerson MVME6100 is a high-performance VMEbus single-board computer applied in industrial automation. Here is the detailed information in English:
- Brand: Emerson
- Model: MVME6100
- Type: VMEbus single-board computer
- Processor
- Adopts the NXP MPC7457 PowerPC processor, with a running frequency of up to 1.267 GHz.
- Equipped with a 128-bit AltiVec coprocessor for parallel processing, which is very suitable for data-intensive applications.
- Memory
- Onboard DDR ECC memory of up to 2GB, which supports ECC verification to ensure data integrity and system stability.
- 128MB of flash memory is used to store firmware or the operating system.
- Cache
- 512KB of on-chip secondary cache and 2MB of tertiary cache to enhance the processor performance.
- Communication Interface
- Dual Gigabit Ethernet interfaces can achieve high-speed network connection.
- Provides a variety of interface options, including USB 2.0, RS-232/422/485 serial ports, PCI/PCI-E expansion slots, etc., which are convenient for connecting various external devices and expanding functions.
- Scalability
- Two 33/66/100 MHz PMC-X interfaces, which facilitate the addition of specific application modules that comply with industry standards.
- Standard VME board size, which can be adapted to common VME system chassis.
- Power Supply
- Supports a wide voltage input range of 9V to 36V DC and has overvoltage and overcurrent protection functions to ensure the reliability of system operation.
- Operating Environment
- The operating temperature range is generally 0°C - +55°C (forced air cooling is required, and 400 linear feet per minute of forced air cooling is recommended for operation in the upper temperature range), and the storage temperature range is - 40°C - +85°C.
- Operating relative humidity is 5% - 90% (non-condensing), and non-operating relative humidity is 5% - 90% (non-condensing).
- Dimensions and Weight
- Standard 6U Eurocard size, with a weight of about 1.5 kg, which is convenient to be installed in various cabinets and chassis.
- High Performance: Based on the MPC7457 PowerPC processor, it provides powerful computing power and can meet the requirements of various complex industrial control applications.
- High Reliability: Adopts redundant design, including CPU redundancy, power redundancy, and memory redundancy, etc., which can ensure stable operation in harsh industrial environments.
- Easy to Maintain: Supports hot swapping, which can be maintained without shutting down the system, reducing downtime.
- Industrial Automation: It is used in industrial control systems, robot control, process control, etc., and can be used as the core control unit to execute control logic and realize automated production processes.
- Aerospace: It meets the needs of original equipment manufacturers in the aerospace field and can be used in the control and navigation systems of aircraft, missiles, ships, etc.
- Medical Imaging: It provides stable and reliable control and computing support for medical imaging equipment, such as CT, MRI, etc.
- Power System: It is used in the monitoring and control of power systems to ensure the stable operation of power equipment.
