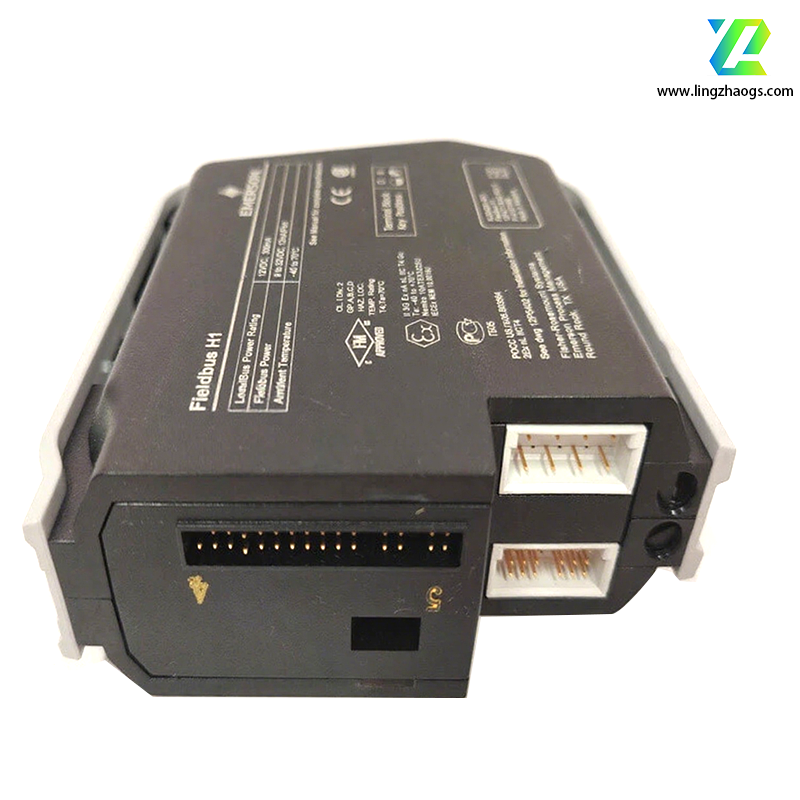

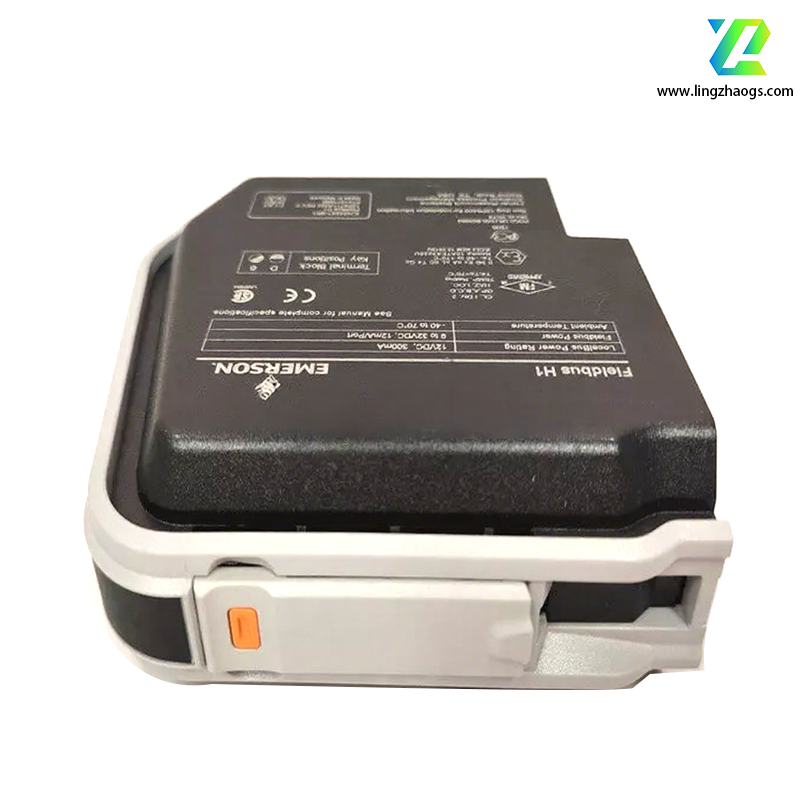

The Emerson KJ3242X1 - BK1 is a multifunctional module applied in industrial automation. Here is the detailed information in English:
- Brand: Emerson
- Model: KJ3242X1 - BK1
- Series: S - series
- Type: It can be a discrete input module, a fieldbus H1 card module, or a pressure measurement module, etc., depending on different application scenarios and hardware configurations.
- Power Supply

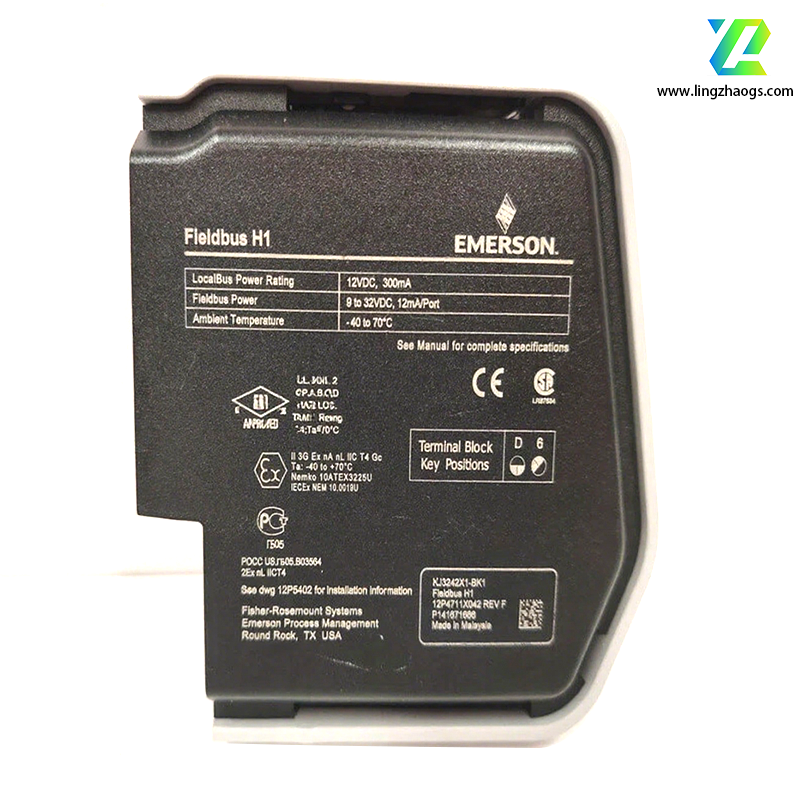

- When used as a fieldbus H1 card module, it is powered by a 12V DC local bus (300mA), and the field circuit is 32V DC (12mA per port).
- Communication
- Protocol: Supports Foundation Fieldbus H1, and is also compatible with protocols such as DeviceNet, Profibus, and EtherNet/IP (stated by some suppliers).
- Rate: When used as an S - Series fieldbus H1 board card, the communication rate is 93.75 kbps.
- I/O Capacity
- Discrete Input Module: Has 32 - channel digital input (DI), which is used to collect the switch status of devices such as switches and relays. It supports dry contact/active input (24V DC).
- Operating Environment
- Temperature: The operating temperature range is generally - 40°C to + 70°C (some data indicates - 40°C to + 85°C).
- Humidity: Relative humidity 5% - 95% (non - condensing).
- Shock and Vibration Resistance: It can withstand an impact of 10g (half - sine wave for 11 milliseconds), and the vibration tolerance is 1mm peak - to - peak vibration when the frequency is 5 - 16Hz, and 0.5g when the frequency is 16 - 150Hz.
- Protection Level: The protection level is IP20/IP66, and it meets the IECEx explosion - proof certification (Ex d IIC T6).
- Dimensions and Weight
- Dimensions: There are different dimensions in different sources, such as about 85mm×50mm×35mm or 90mm×60mm×35mm, etc.
- Weight: About 0.2kg - 0.5kg.
- High Reliability: It is designed with dust - proof, waterproof, impact - resistant and vibration - resistant features, and can adapt to harsh industrial environments. Each module has undergone rigorous testing to ensure compliance with international standards and customer expectations.
- Easy to Configure: The parameters can be set and monitored through DeltaV Control Studio software, and it supports hot - swapping and on - site diagnosis.
- Explosion - proof Design: It meets the Ex d IIC T6 explosion - proof grade, and is suitable for dangerous areas such as petroleum and chemical industries.
- Process Automation: It is widely used in process control systems such as petroleum, natural gas, chemical, pharmaceutical, food and beverage, and water treatment.
- HVAC and Cold Chain: It is used for temperature control of refrigeration and freezing equipment.
- Industrial Heating and Cooling: It is used for monitoring and regulating temperature, pressure and flow.
- Mechanical and Equipment Monitoring: It is used for on - site data collection of injection molding machines, compressors, pump stations, etc.
