Basic Information

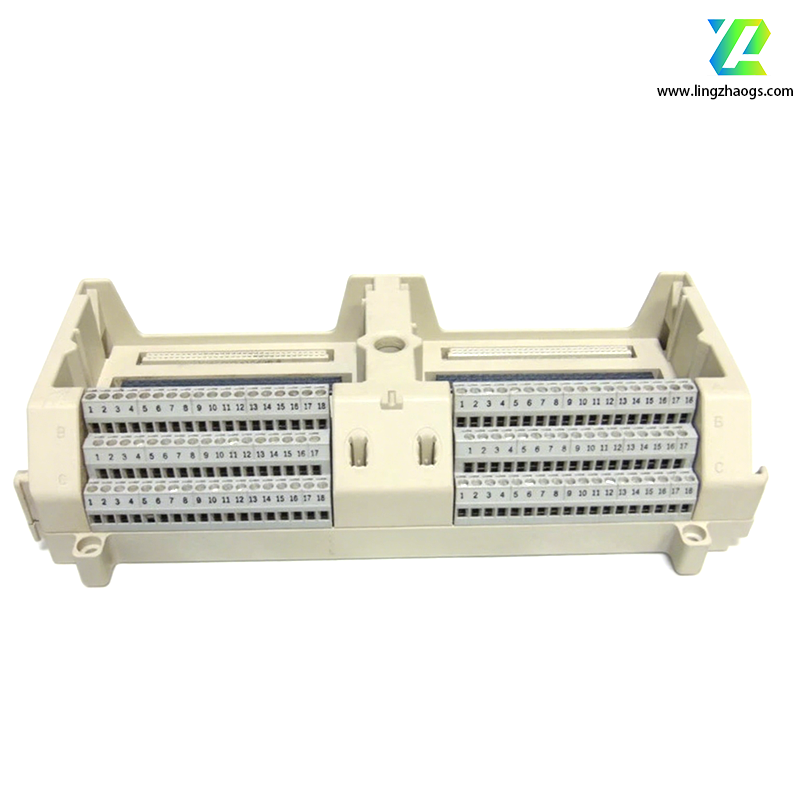

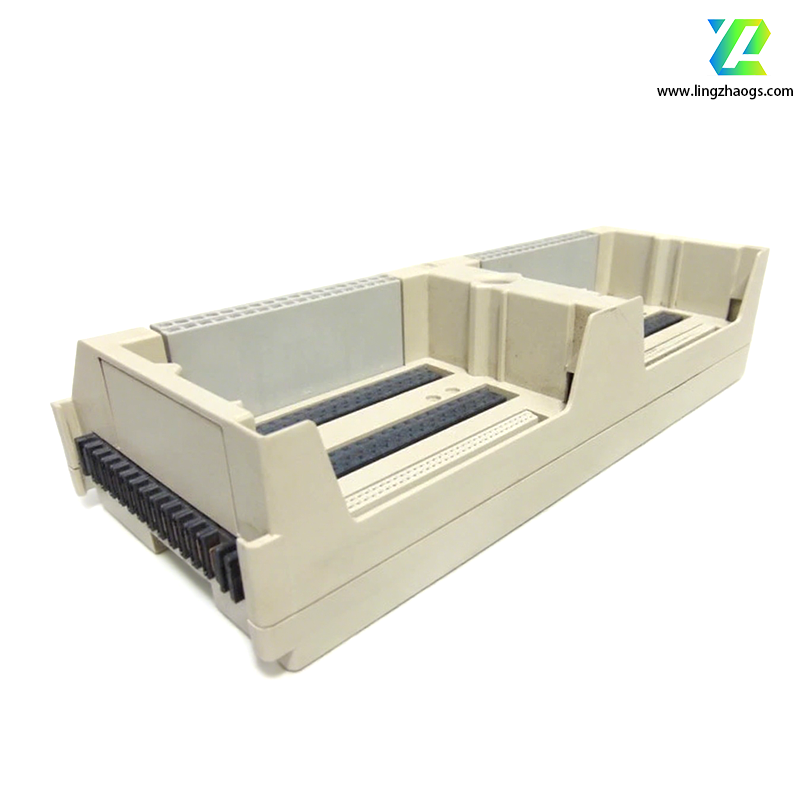

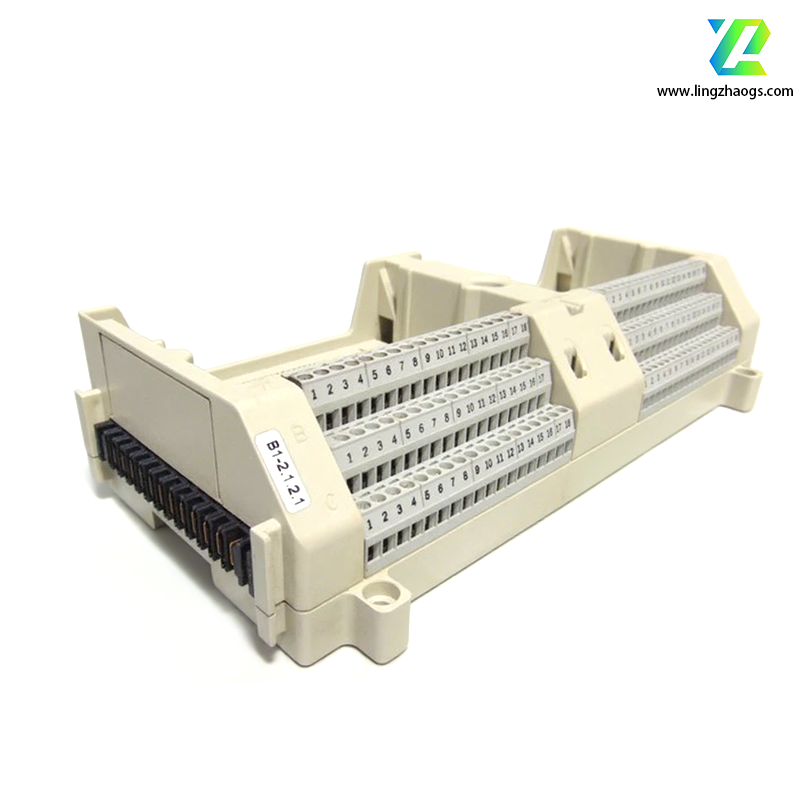

• Product Name: Analog Output Module
• Package / Specification: SOP-16 (Small Outline Package-16)
• Operating Voltage: 5-24V
• Output Frequency: 50kHz
• Weight: Approximately 0.2kg
• Mounting Method: On-site Mounting
• Temperature Range: -10℃ to 55℃
• Environmental Humidity: 5% to 95% (non-condensing)

Performance Features

• Powerful Signal Processing Capability: It can accurately collect and process analog signals such as temperature, pressure, flow rate, and liquid level. It is compatible with various types of sensors, including 4-20mA current signals and 0-10V voltage signals, and is equipped with high-precision analog-to-digital conversion (ADC) functionality.
• Flexible Control Algorithms and Logic: Integrates a variety of control algorithms, including support for PID (Proportional-Integral-Derivative) control algorithms with flexible parameter adjustment. It also features cascade control, feedforward control, and other algorithms, as well as providing multiple logical operation functions such as AND, OR, and NOT.
• Reliable Communication and Data Interaction: Supports multiple communication protocols such as Modbus and Profibus, enabling stable and efficient communication with upper computers, PLCs, and other devices. It also has data storage functionality.

Application Fields

• Temperature control of chemical reaction kettles in the chemical industry;
• Temperature monitoring and control of power equipment in the electric power industry;
• Temperature control of food processing equipment in the food industry;
• Aeration control in sewage treatment plants in the water treatment industry.
