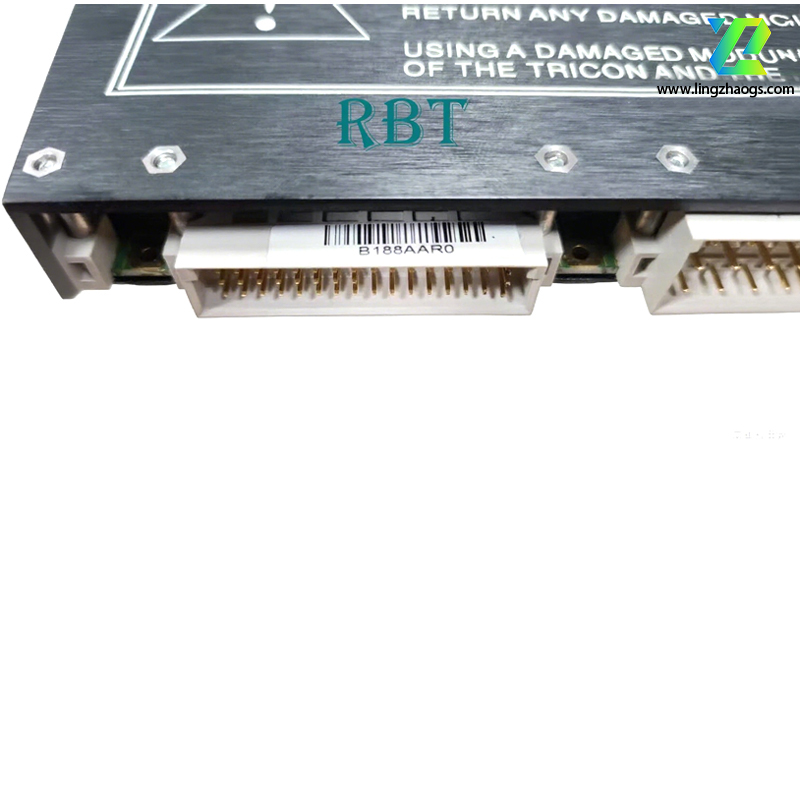

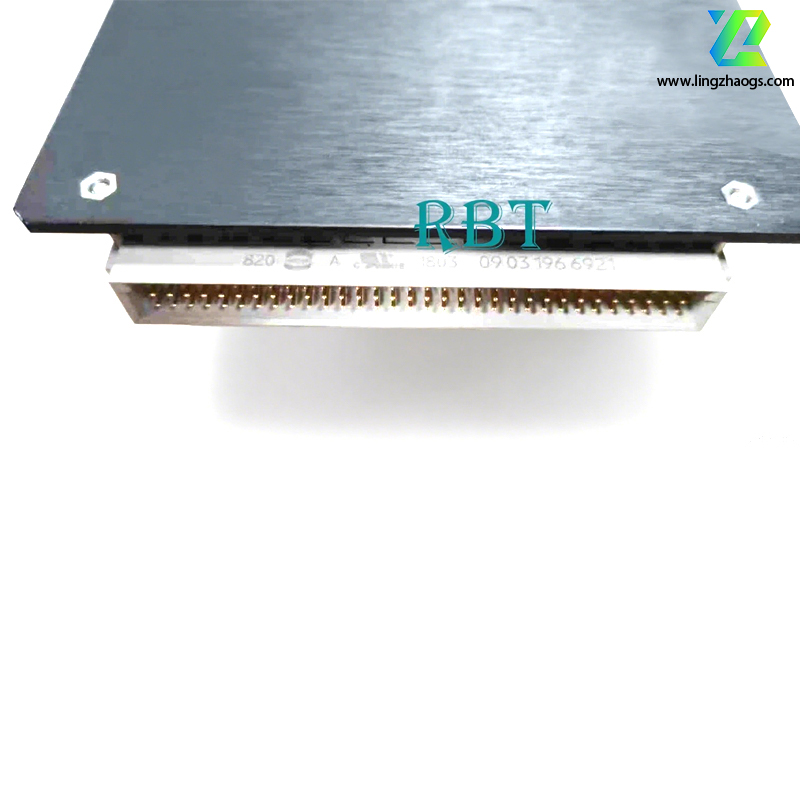

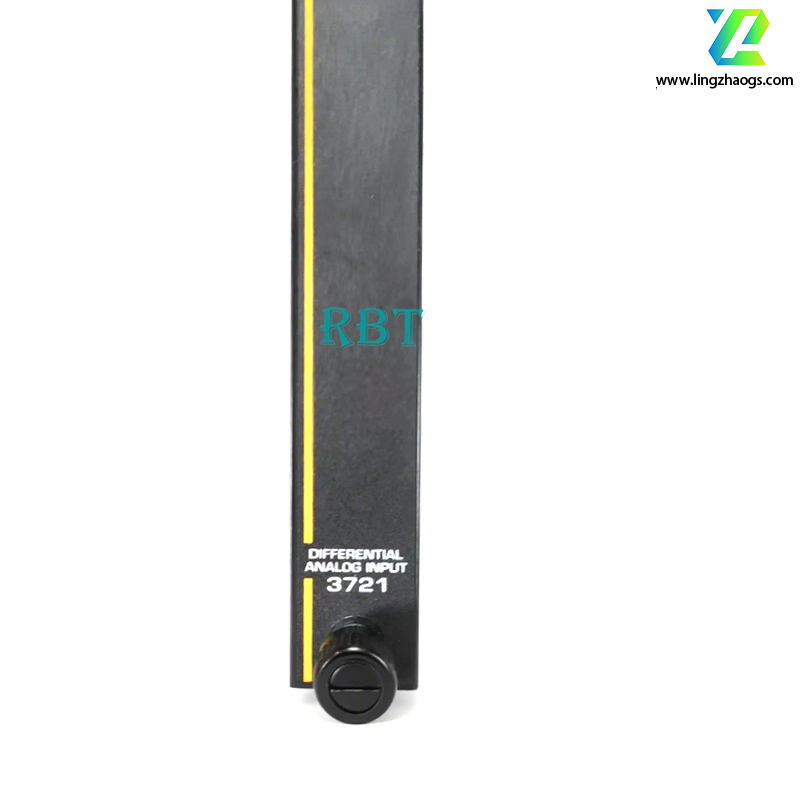

Functional Features

• Signal Conversion: Can convert analog signals from field devices, such as temperature, pressure, and flow signals, into digital signals, which are transmitted to the control system to realize process monitoring and control.
• High Reliability: Adopts Triple Modular Redundancy (TMR) design to improve system availability and reliability, ensuring normal operation even in case of faults.
• Strong Anti-Interference Ability: Differential input design can reduce the impact of common-mode noise; meanwhile, it has low noise characteristics, which can minimize the impact of electrical noise on measurements.
• High Configurability: Supports multiple input types and configuration options; parameters such as input range, resolution, and sampling rate can be configured to meet different application requirements.
• Hot-Swap Function: Supports hot swapping, allowing online replacement of faulty modules without shutting down the system, facilitating maintenance.

Electrical Parameters

• Input Voltage Range: 0-5VDC or -5-+5VDC, ±6%.
• Number of Input Points: 32 differential, DC-coupled.
• Input Update Rate: 10ms.
• Resolution: 12-bit or 14-bit programmable.
• Accuracy: Less than 0.15% of Full Scale Range (FSR) at 0-60°C.
• Input Resistance (Load): Minimum 10MΩ (DC).
• Power-Off Resistance: Typical value 140kΩ (DC).
• Common-Mode Rejection Ratio: -85dB at DC-100Hz.
• Input Overrange Protection: Can withstand 150VDC/115VAC continuous overvoltage.

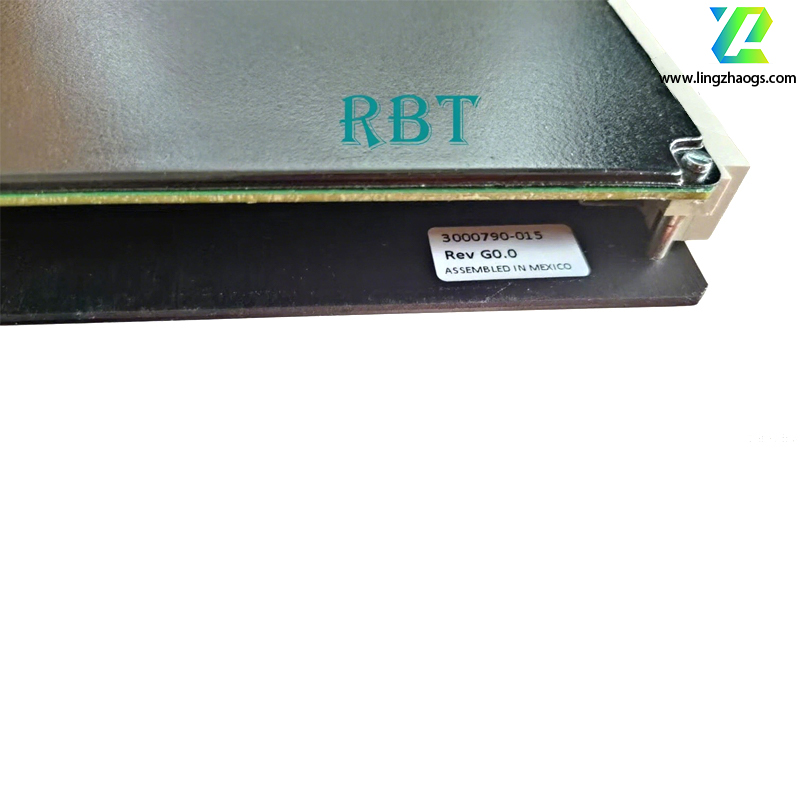

Physical Characteristics

• Dimensions: Approximately 49x45.3x6.8cm.
• Weight: Approximately 2.85kg.
• Safety Certification: Certified with SIL 3 Safety Integrity Level, meeting high safety standards and suitable for safety-critical applications.
