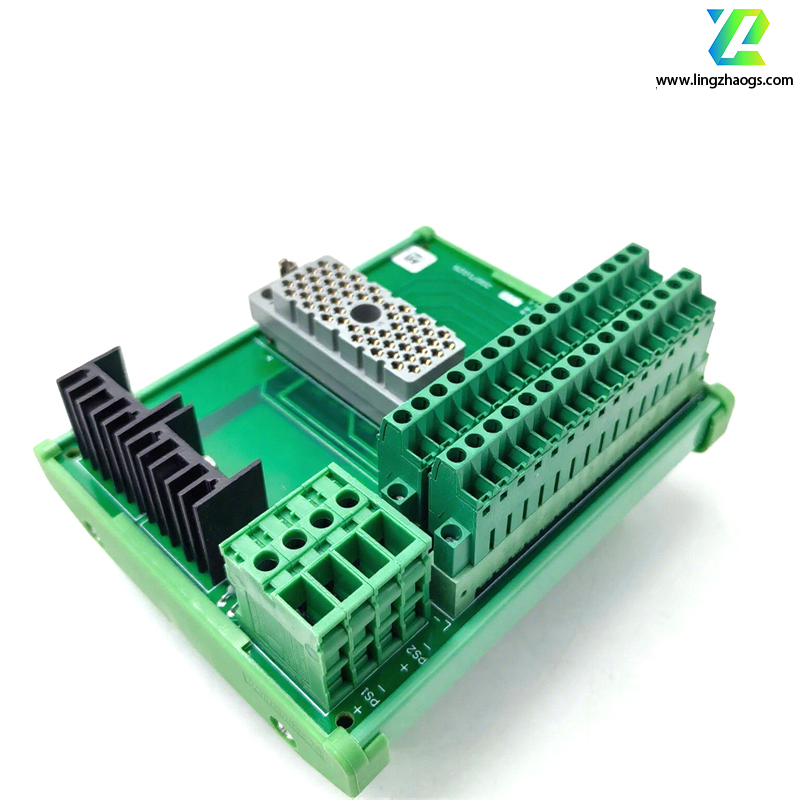

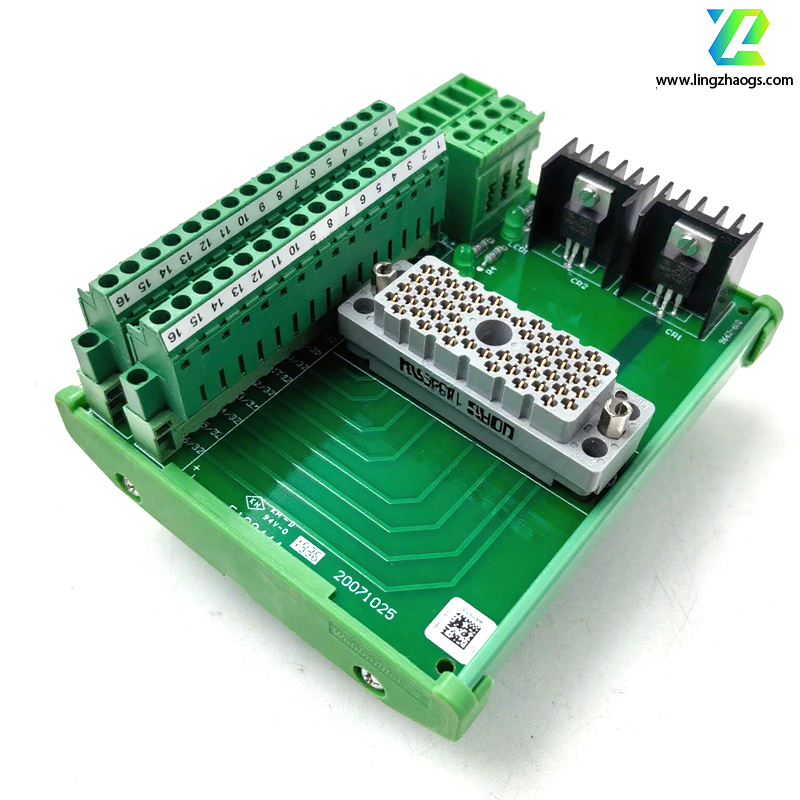

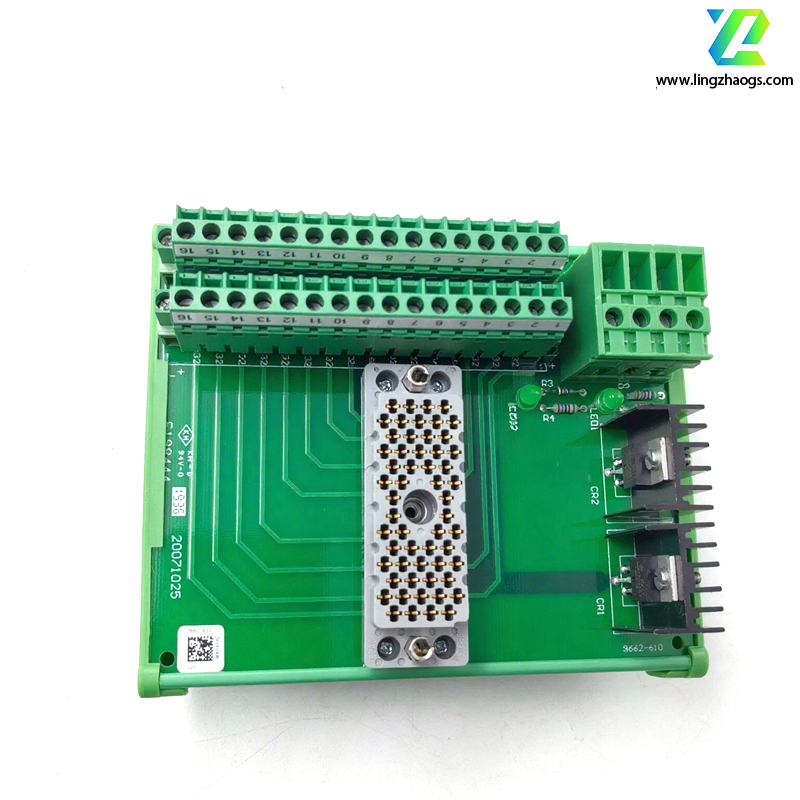

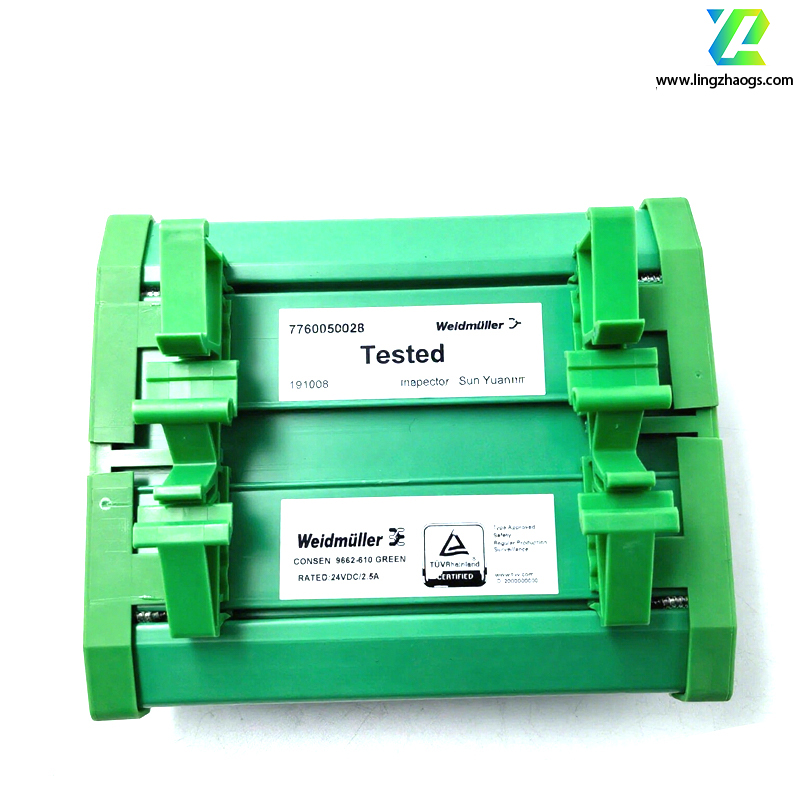

The TRICONEX 9662-610 is a digital output terminal board belonging to the Triconex T3000 series, and it is part of the auxiliary components for the series’ I/O modules. Detailed information is as follows:
It adopts a Triple Modular Redundancy (TMR) architecture, featuring high reliability and a modular design, making it suitable for harsh industrial environments. It is mainly used to connect on-site equipment with Triconex Safety Instrumented Systems (SIS) and supports signal connection, isolation, and conversion functions.
- I/O Voltage: 24VDC
- Number of Channels: 16 digital output channels
- Communication Protocols: Supports multiple communication protocols such as RS485
- Operating Temperature Range: -40°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Power Consumption: Maximum 10W
- Protection Level: IP67
- Dimensions: 140mm x 60mm x 44mm
- Weight: 1.2kg
- High Reliability: The TMR architecture ensures the system can still operate normally when a fault occurs, with no single point of failure. It adopts a two-out-of-three voting mechanism to provide high integrity, error-free, and uninterrupted process operations.
- Modular Design: Facilitates installation and maintenance.
- Strong Anti-Interference Capability: Equipped with an electromagnetic interference (EMI) protection design.
- Flexible Configuration: The function and parameters of each output channel can be configured according to requirements.
Widely used in the petrochemical, power, metallurgy, and pharmaceutical industries, it is applied for on-site signal acquisition and control, signal isolation and protection, and signal management. It plays a key role in industrial automation and safety control systems—especially in scenarios requiring high reliability and safety, such as fire alarm systems, safety monitoring systems, and emergency shutdown systems.
