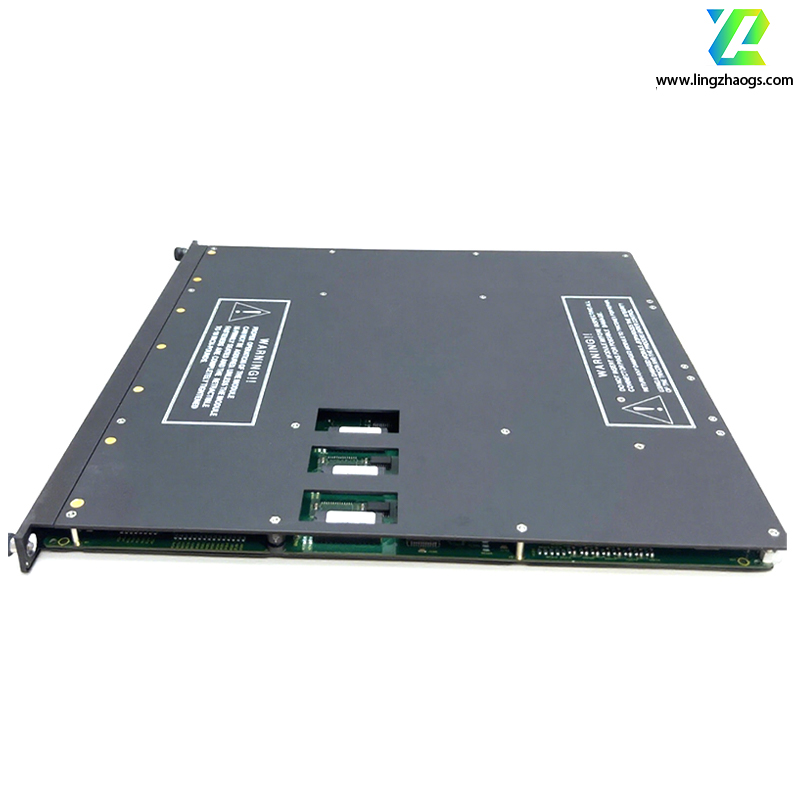

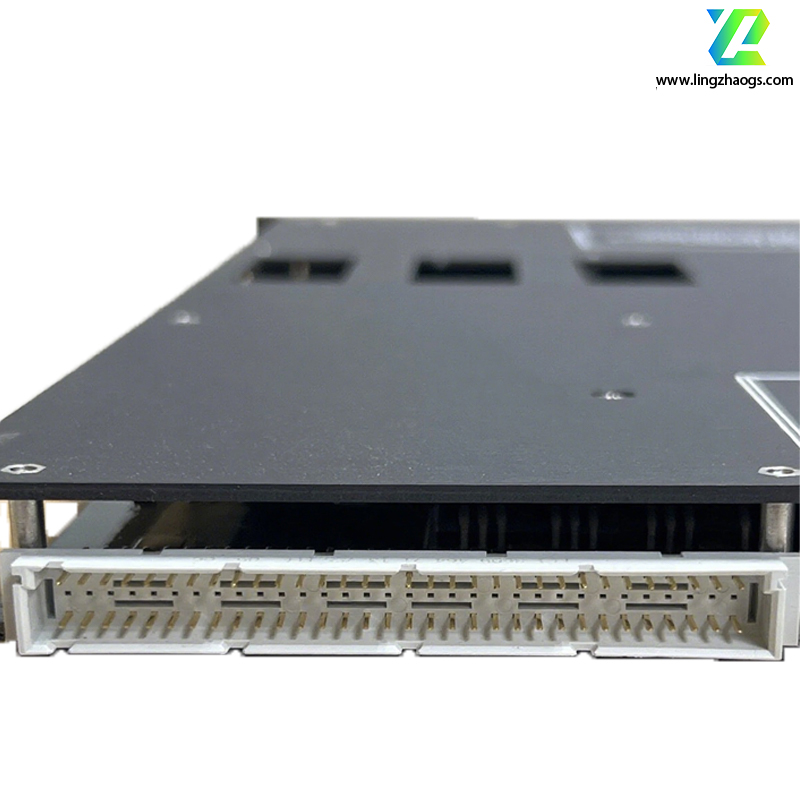

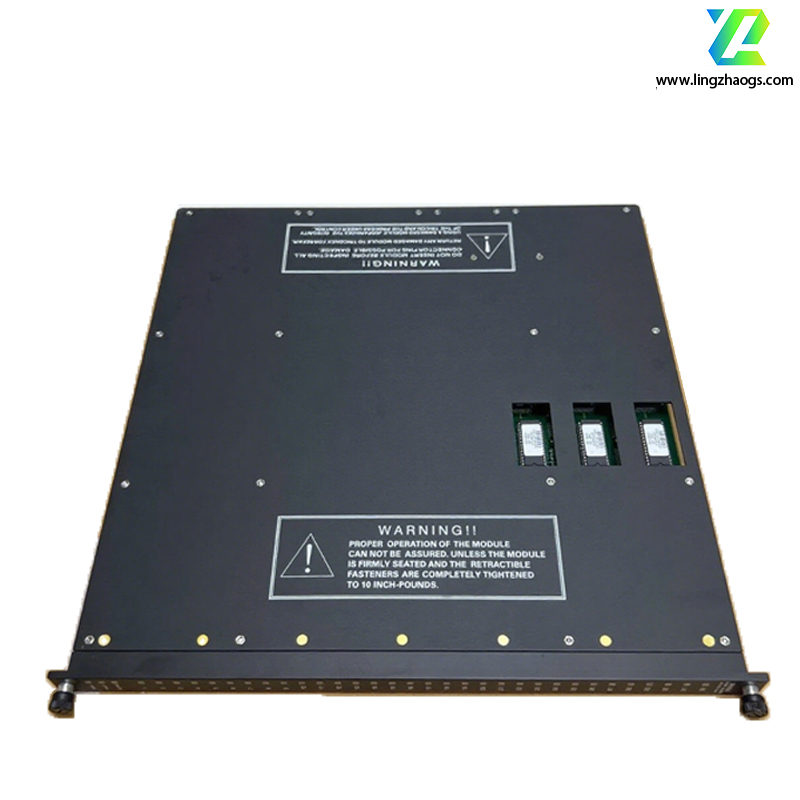

It is a high-reliability relay output module and a core component of TRICONEX’s Tricon and Trident Safety Instrumented System (SIS) platforms. It is mainly used in safety-critical industrial automation systems as a key interface between safety controllers and on-site equipment requiring high-power drive, such as emergency shutdown valves, fire protection system actuators, and isolation relays.
- Operating Voltage: 24V DC
- Maximum Current per Relay: 1.5A
- Number of Isolated Relay Outputs: 8
- Relay Rating: 5A @ 250V AC / 30V DC (resistive load)
- Isolation Voltage: 2500V DC (between channels and bus, and between channels)
- Dimensions: 102mm (height) × 152mm (width) × 51mm (depth)
- Weight: Approximately 0.85kg
- Mounting Method: 19-inch rack mounting, compatible with DIN rails
- Vibration Resistance: Up to 5g (10 - 2000Hz)
- Operating Temperature Range: -40℃ to 70℃
- Relative Humidity: 5% - 95% (non-condensing)
- Complies with SIL 3 standard (IEC 61508)
- Certified by ATEX / IECEx (Zone 1/2)
- Listed in UL 508
It adopts a Triple Modular Redundancy (TMR) architecture. Each output signal is processed through three independent channels, using a 2-out-of-3 voting mechanism to eliminate single points of failure. This ensures continuous operation even if one channel fails—a feature crucial for applications such as emergency shutdown systems on offshore oil platforms, where downtime could lead to environmental disasters or significant economic losses.
