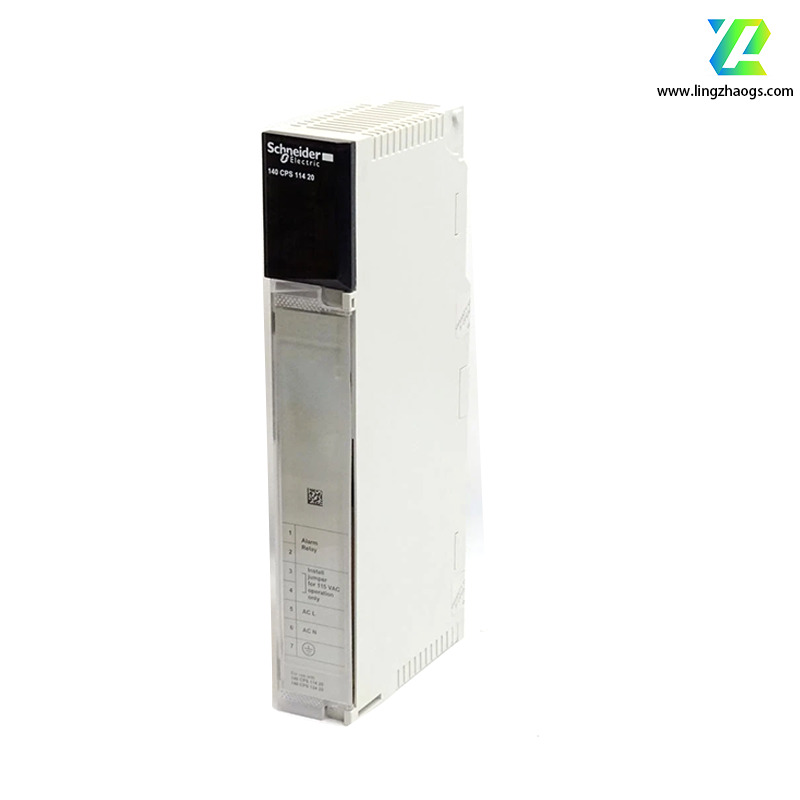

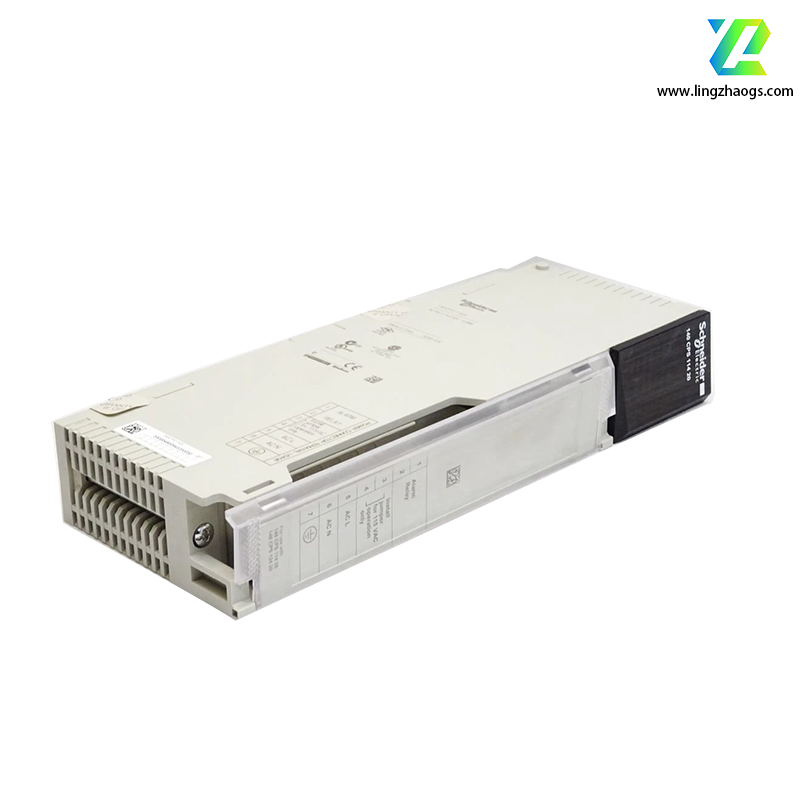

The Schneider 140CPS11420 is a power supply module of the Modicon Quantum series, which is an integral component of the Modicon Quantum automation platform. Here is its detailed information:

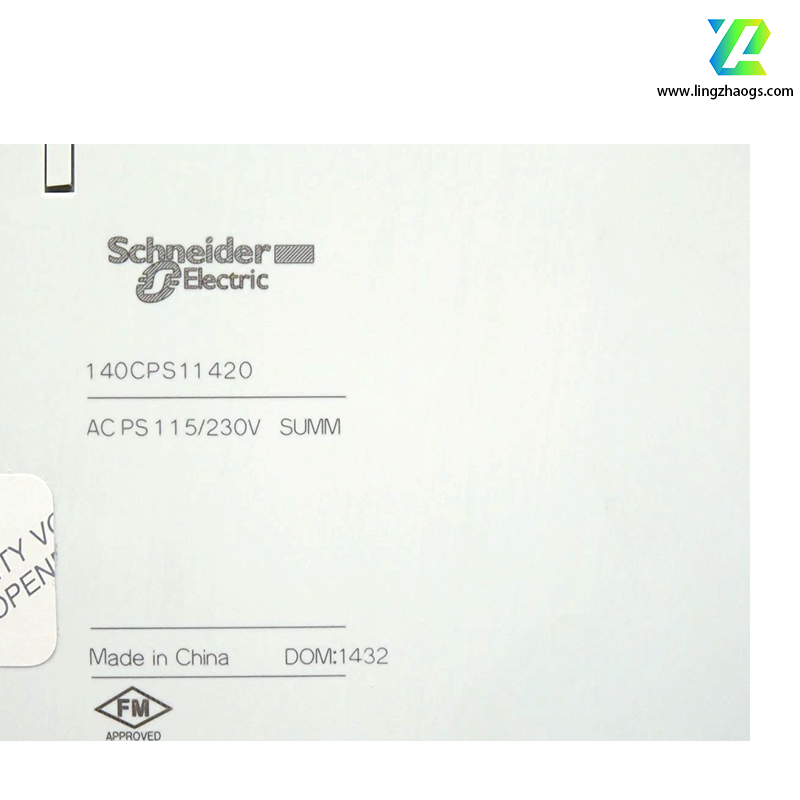

- Model: 140CPS11420
- Power Supply Type: It can be used in both summable and standalone power supply types.
- Input Voltage: 115/230 VAC (the input voltage range is 93-132 VAC for 115 VAC and 170-276 VAC for 230 VAC).
- Input Current: 1300 mA at 115 VAC and 750 mA at 230 VAC.
- Output Voltage: 5.1 VDC.
- Output Current: In standalone mode, it can provide 11 A at 140°F (60°C), and in summable configurations, it can provide 20 A at 140°F (60°C).
- Inrush Current: 38 A at 115 VAC and 19 A at 230 VAC.
- Associated Fuse Rating: 2 A, slow-blow.
- Output Overload/Overvoltage Protection: Internal protection is provided against overvoltage and overload.
- Local Signalling Power: There is 1 green LED for indicating the power status (Pwr OK).
- Power Dissipation: The power dissipation is calculated as 6+(1.5×Iout), where Iout is in amperes.
- Certifications: It complies with UL 508 and CSA C22.2 No 142 standards and holds CUL certifications.
- Environmental Resistance: It can withstand electrostatic discharge (4 kV contact, 8 kV on air) and electromagnetic fields (9.14 V/m up to 2000 MHz). The operating temperature range is 32-140°F (0-60°C), and the storage temperature range is -40-185°F (-40-85°C).
- Weight: The net weight is 1.43 lb (0.65 kg).
