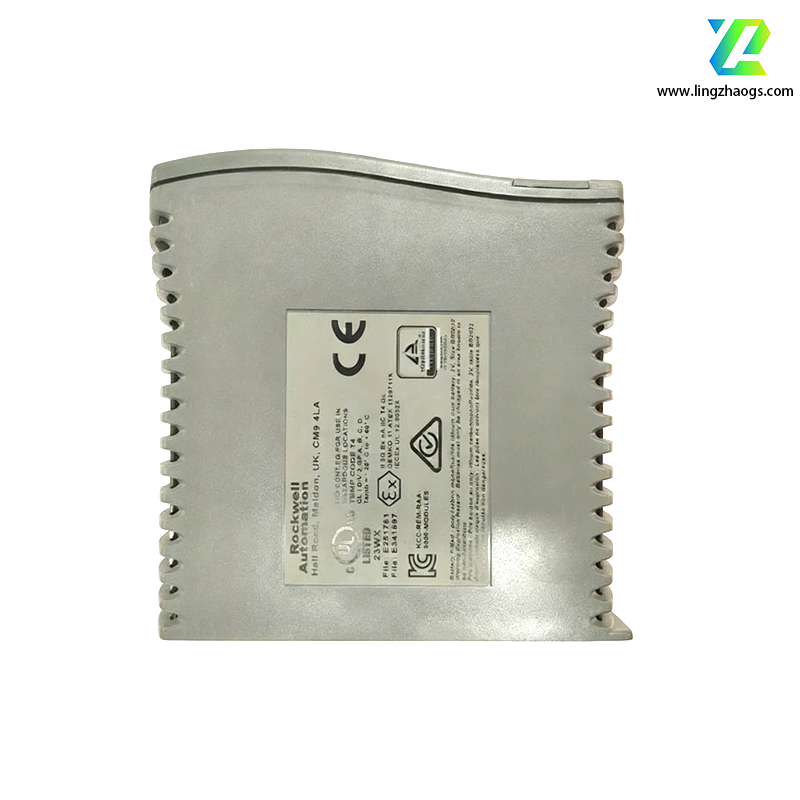

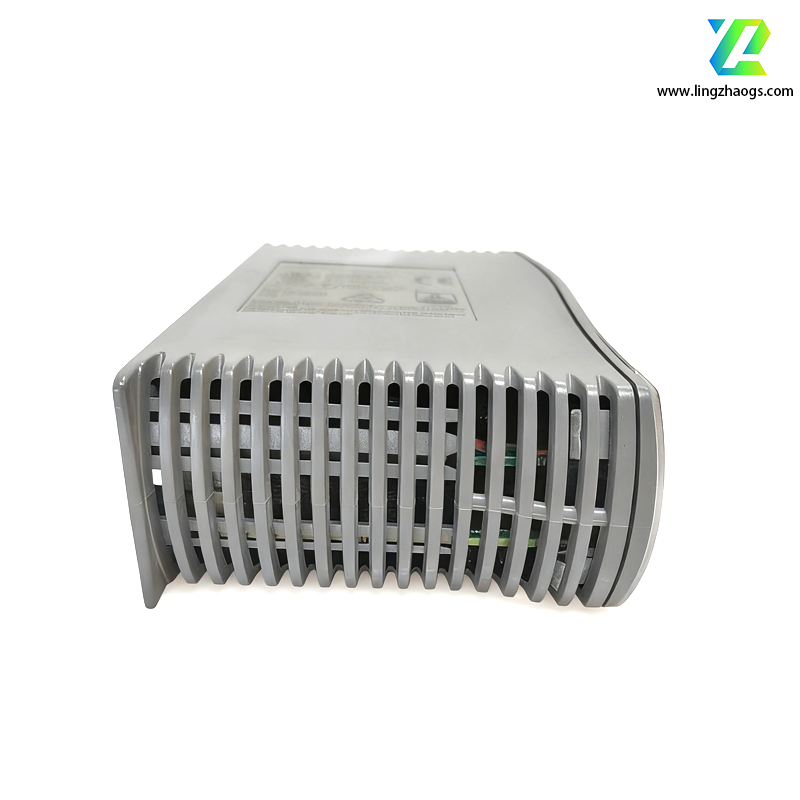

The ICS Triplex T9110 is a high - reliability processor module for AADvance controllers, designed for industrial control systems. Here are the detailed contents:
- Manufacturer: ICS Triplex (now part of Rockwell Automation)
- Part Number: T9110
- Product Type: Processor Module
- Country of Origin: USA
- Dimensions: 166mm x 42mm x 118mm (6 - ½ in. x 1 - 5/8 in. x 4 - 5/8 in.)
- Weight: 430g (15 oz.)
- Casing Material: Plastic, non - flammable
- Input Voltage: Redundant 24VDC nominal, with a range of 18 - 32VDC
- Power Dissipation: 8W (27.3 BTU/h)
- Protection: Incorporates under - and over - voltage protection for internal power supplies
- Processor: Dual - core ARM Cortex - A9
- Memory: 2GB RAM, 8GB flash storage
- Communication Ports: Two functionally independent, electrically isolated Ethernet ports, which can be configured for multiple protocols such as Modbus RTU, Open Modbus/TCP and proprietary AADvance protocols; two serial ports supporting RS485 (4 - and 2 - wire) communications for Modbus RTU slave communications, with data rates from 1,200 to 115,200 baud; also has a USB port
- I/O Interface: Interfaces with controller I/O modules, capable of reading and processing input data and writing output data, with a maximum I/O capacity of up to 1000 I/O points
- Diagnostic Function: Periodically initiates internal diagnostic tests with a watchdog circuit to monitor internal performance. Has comprehensive automatic diagnostic and self - test functions, and can detect faults in the module itself and external connections
- Redundancy: The controller can use one, two or three processor modules. Using two or three processor modules provides a fault - tolerant processor architecture. The module will continue to operate in the event of failure of one of its dual - redundant 24VDC power supplies
- Event Reporting: On - board Sequence of Events (SOE) reporting with high - resolution, which can accurately record the order of input and output signal changes
- Operating Temperature Range: - 20°C to 70°C
- Humidity: 5% to 95% non - condensing
- Certifications: Meets relevant industrial safety standards, such as being suitable for safety - critical applications with a safety integrity level up to SIL 3 (specific certifications may vary depending on the application configuration)
- Industrial Automation: Used as the central control unit in industrial control systems, responsible for executing control logic and managing I/O operations
- Process Control: Suitable for applications in the petrochemical industry, power plants, and metallurgy industry, etc., for precise control of production processes
- Safety - Critical Systems: Can be used to build safety - critical systems, ensuring the stable and safe operation of the system under various conditions
