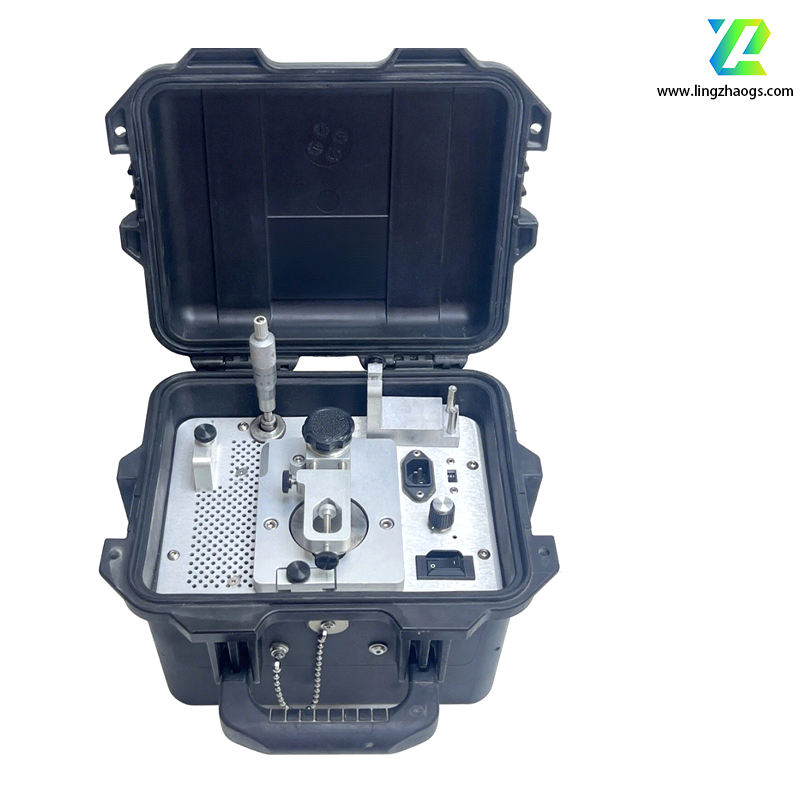

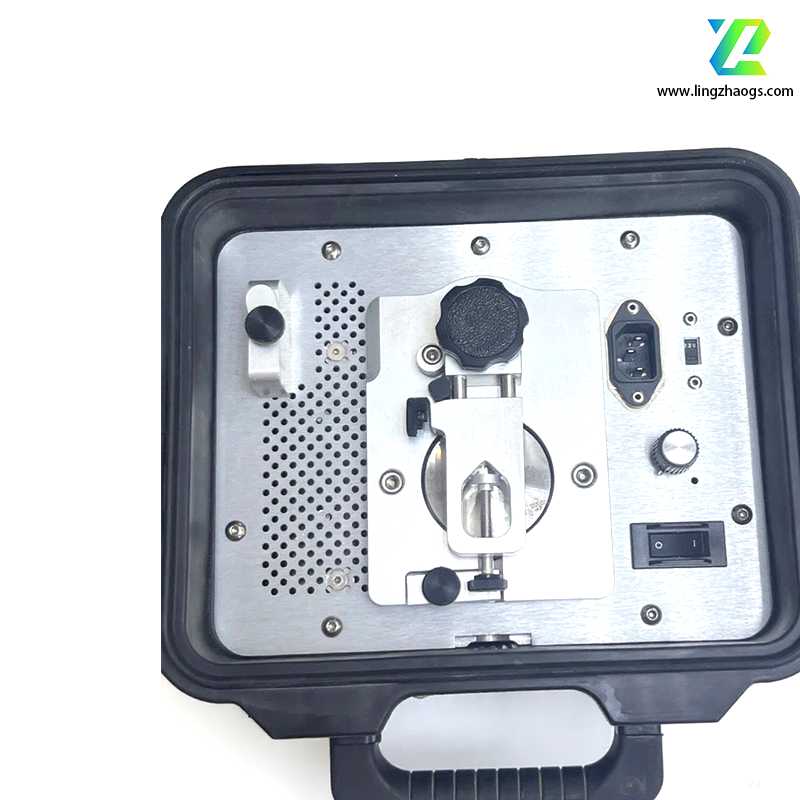

It is used for static and dynamic calibration of eddy current probes. It can calibrate various EPRO and Bently 3300XL sensor systems, Bently 3300XL probes, extension cables and preamplifiers, and can also be used for on-site installation and commissioning of Bently eddy current probes.

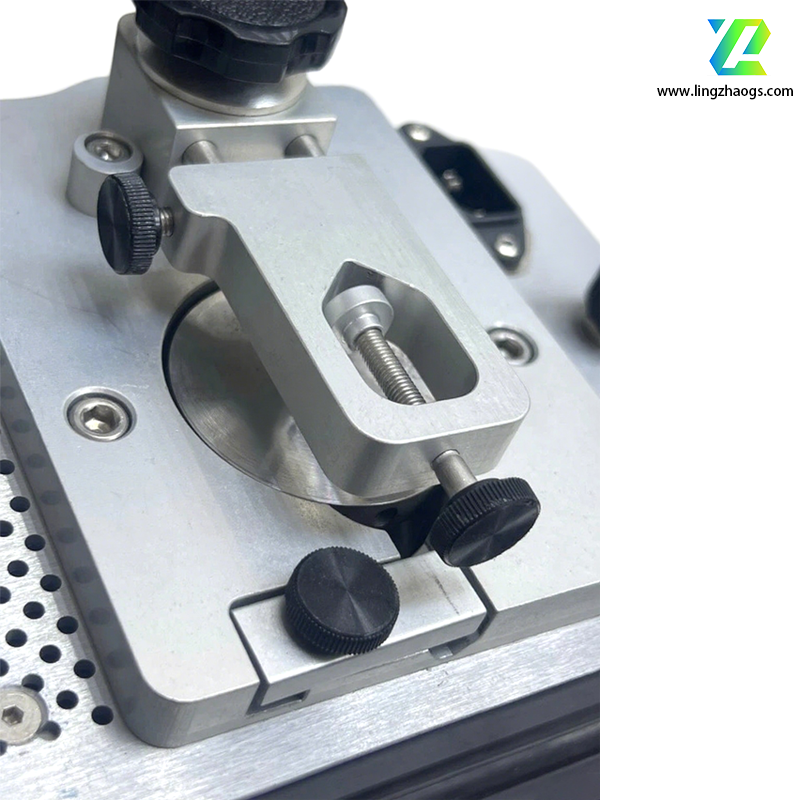

Static calibration is completed by an attached micrometer, while dynamic calibration is achieved through a special rotating "tilted disc" that simulates dynamic mechanical vibration.
- Micrometer Range: The spindle micrometer has a range of 0-25.4mm (0-1000 mils).
- Material of Tested Target Surface and Tilted Disc: AISI 4140 alloy steel.
- Dimensions: Height 215mm, Width 184mm, Depth 285mm.
- Weight: 5.9kg.
The monitoring units are applicable to machines including steam turbines, fans, reciprocating compressors, motors, water pumps, blowers, centrifuges, generators, etc. It is widely used in enterprises of iron and steel, electric power, metallurgy, chemical engineering, petrochemical industry and other fields.
