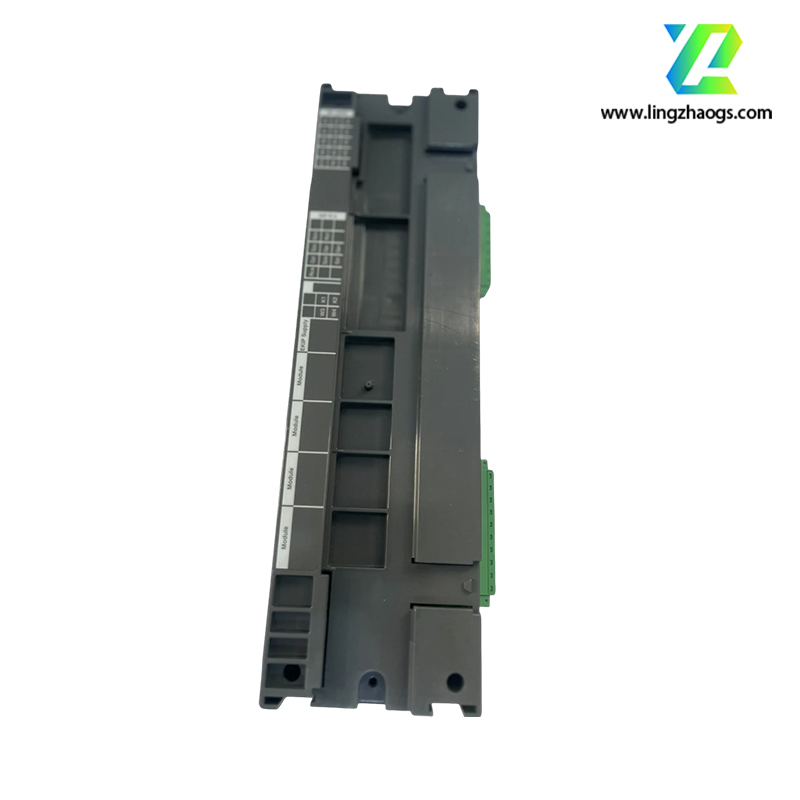

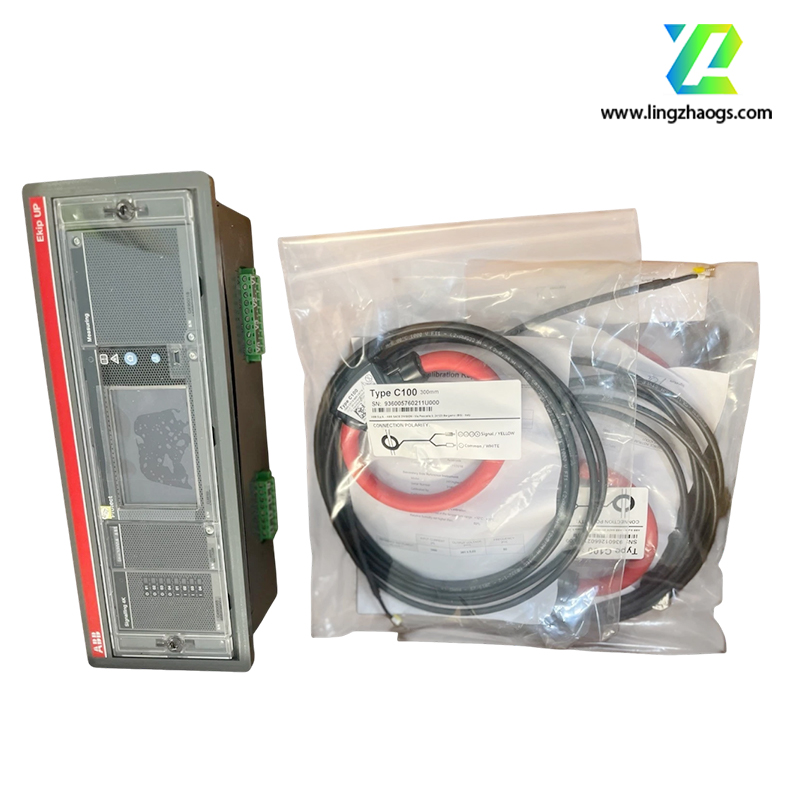

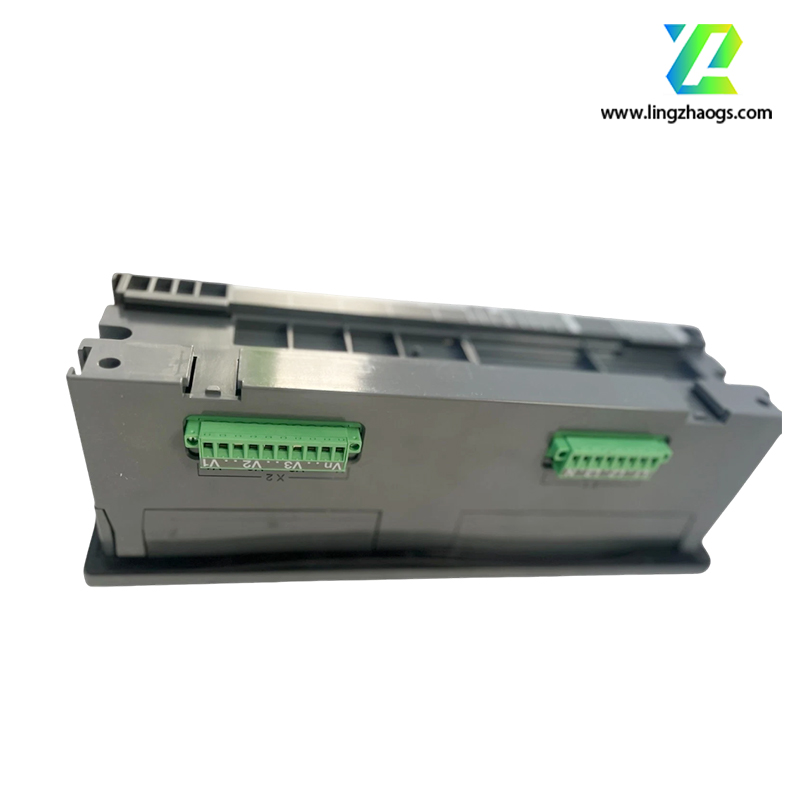

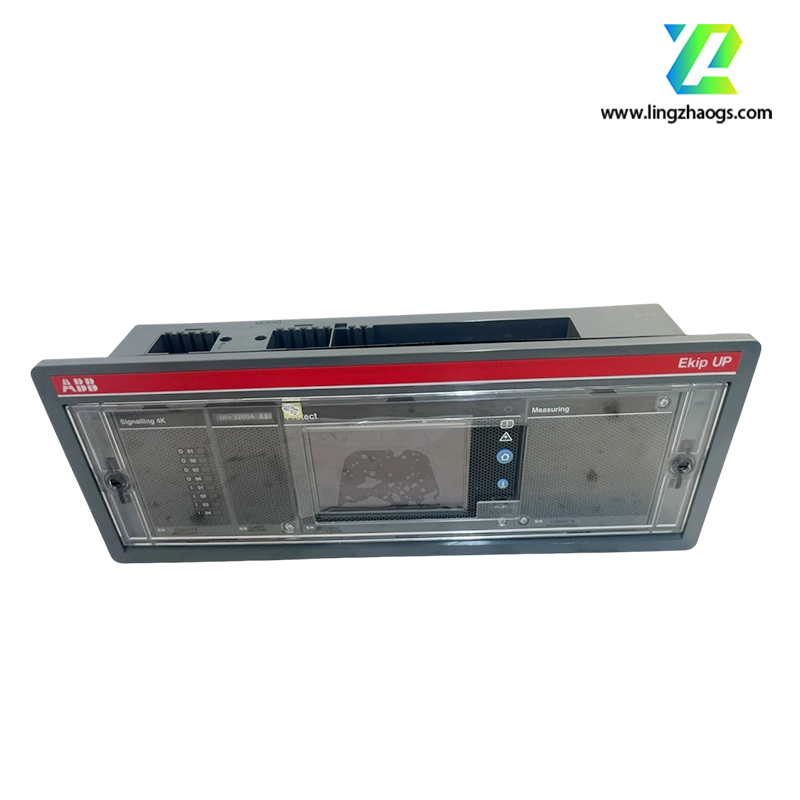

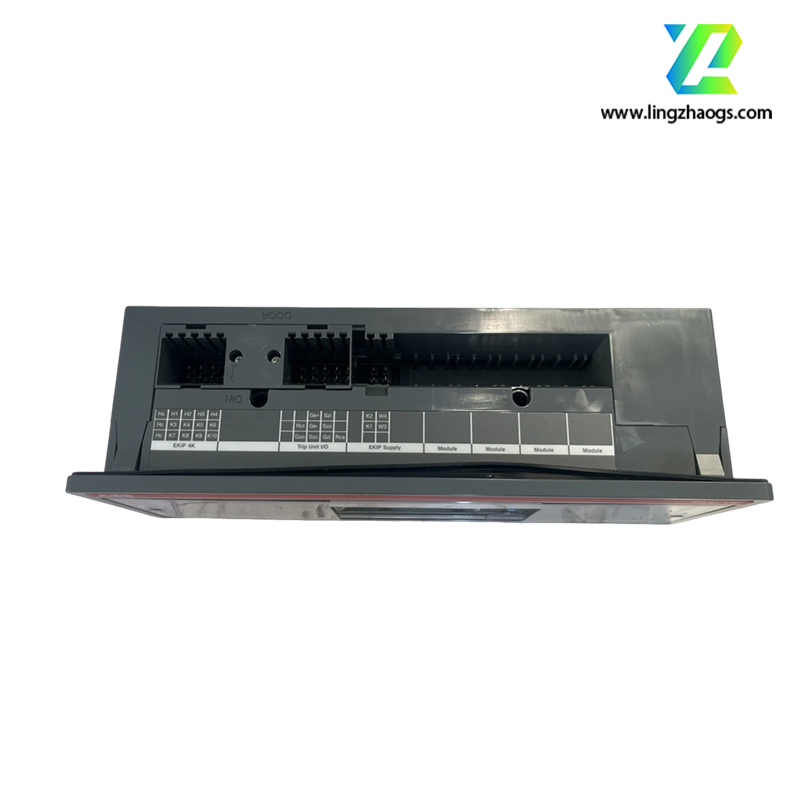

Based on the available information, the ABB 1SDA083360R1 is a product within the Ekip UP Protect series, which are versatile protective relays used in power distribution and generation systems. Here is the detailed information in English:
- Manufacturer: ABB
- Part Number: 1SDA083360R1
- Product Series: Ekip UP Protect
- Product Type: Protective Relay
- Protection Functions: It offers a comprehensive list of ANSI protections. This includes current - based protections such as overload, short - circuit (instantaneous or delayed), differential and ground fault, and current unbalance. It also provides voltage - based protections like under - over voltage, under - over frequency, synchrocheck, and reverse power.
- Switching Device Interface: It can be interfaced with every switching device, ensuring feeder protection by sending opening and closing commands for trips or manual operations. When used with a switch disconnector, it can guarantee the breaking capacity equal to the value of the rated short - time withstand current (Icw) for one second. If used with an existing circuit breaker, it can maintain the short - circuit breaking capacity of the breaker (excluding current - based protection on Ekip UP) and upgrade it with more functions.
- Commissioning Software: It can be configured using the Ekip Connect 3.0 commissioning software. This software helps in reducing the complexity of programming and enables features such as automatic transfer switch (ATS), fast load shedding, and synchro reclosing capability.
- Power Distribution: Ideal for protecting electrical distribution systems, ensuring the reliability and safety of power flow in various industrial and commercial applications.
- Generator Protection: Although not as comprehensive as the Ekip Protect+ version, it still provides some basic generator - related protection functions in addition to its main distribution protection capabilities.
It should be noted that the above information is based on the available online resources, and for more detailed and accurate technical specifications, such as physical dimensions, electrical ratings, and environmental requirements, it is recommended to refer to the official ABB product datasheet.
