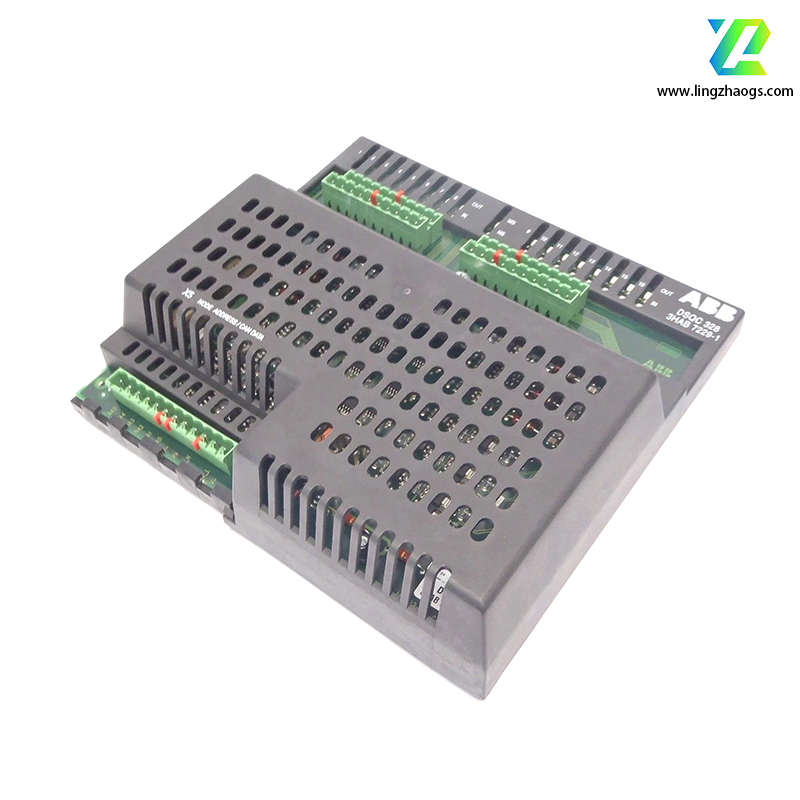

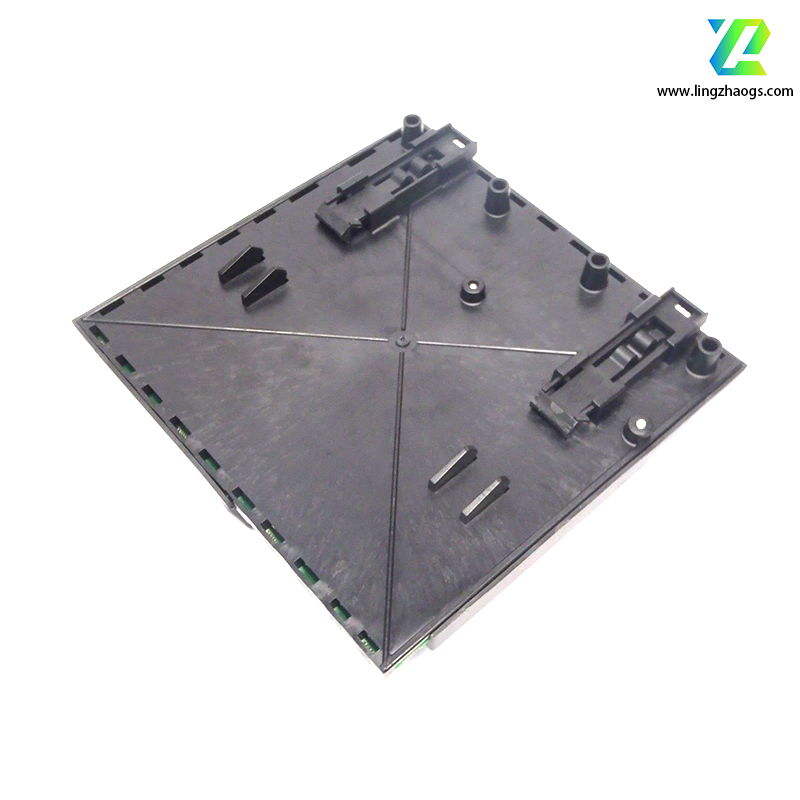

The ABB DSQC-328 (Order Code: 3HAB7229-1) is a high-reliability digital I/O relay module specifically engineered for ABB industrial robot systems, with primary compatibility for legacy models such as the S4 and S4C series. As a critical interface component in robot control architectures, it bridges the main controller and external devices by managing digital input/output signals and driving relay-based operations. This module enables precise control of peripheral equipment (e.g., grippers, sensors, conveyors) while ensuring stable signal transmission, making it essential for maintaining operational efficiency in automated manufacturing environments relying on ABB’s older robot platforms.
- Integrates digital I/O processing and relay driving in a single module: Input channels receive signals from sensors (e.g., photoelectric switches, limit sensors), while relay-driven outputs control high-power external devices (e.g., solenoid valves, motor starters). This eliminates the need for separate I/O and relay modules, simplifying system architecture.
- Low signal latency (<1ms) ensures real-time synchronization between the robot and peripherals—critical for time-sensitive tasks like precision assembly or automated material handling.
- Designed as a direct replacement for original I/O relay modules in S4/S4C robots, supporting plug-and-play installation without modifying existing control programs or wiring. This minimizes downtime during maintenance or module replacement.
- Compatible with ABB’s legacy programming software (e.g., RobotStudio for S4 series), enabling easy parameter configuration, signal monitoring, and troubleshooting via a PC interface. Technicians can quickly map I/O signals to robot operations without specialized training.
- Conformal coating on the printed circuit board (PCB) protects against common industrial environmental stressors, including dust, oil mist, and temperature fluctuations. This extends the module’s operational lifespan (MTBF ≥ 10,000 hours in standard factory conditions).
- Robust relay contacts with high switching endurance (≥100,000 operations) ensure reliable performance in high-cycle applications, reducing the frequency of component replacements.

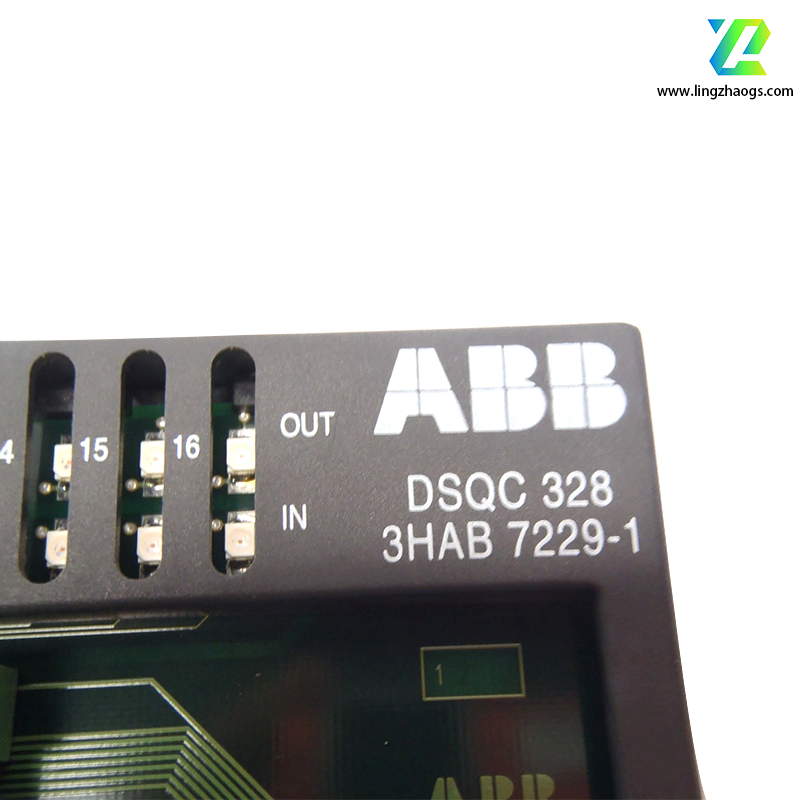

- LED indicators for each I/O channel and system status (power, communication, relay activation) allow at-a-glance troubleshooting. Technicians can quickly identify issues such as open circuits, short circuits, or lost communication with the main controller.
- Overcurrent protection on input channels prevents damage from wiring errors or sensor malfunctions, enhancing system safety and reducing repair costs.
The DSQC-328 3HAB7229-1 is tailored for legacy ABB robot systems in industrial automation, including:
- Automotive manufacturing: Control of welding fixtures, part feeding mechanisms, and conveyor synchronization for S4/S4C assembly robots.
- Material handling: Management of gripper actuation, pallet detection sensors, and automated guided vehicle (AGV) docking signals.
- Electronics production: Precision control of component placement tools, vision system triggers, and PCB handling equipment.
- General manufacturing: Integration with packaging machines, labeling systems, and machine tending robots for seamless production line coordination.
- Condition: New or fully refurbished original ABB module (100% authentic, tested to meet ABB’s legacy robotics performance standards).
- Warranty: 12-month warranty covering manufacturing defects (excludes damage from improper installation, voltage spikes, or physical impact).
- Technical Support: Access to ABB’s legacy robotics documentation library, including wiring diagrams, I/O configuration guides, and compatibility lists. Our team provides remote assistance for module setup, signal mapping, and troubleshooting.
- Packaging: Anti-static industrial packaging to protect sensitive electronic components during shipping and storage.
For assistance verifying compatibility with your specific S4/S4C robot model or guidance on integrating the module with new peripherals, contact our technical support team for personalized solutions.
