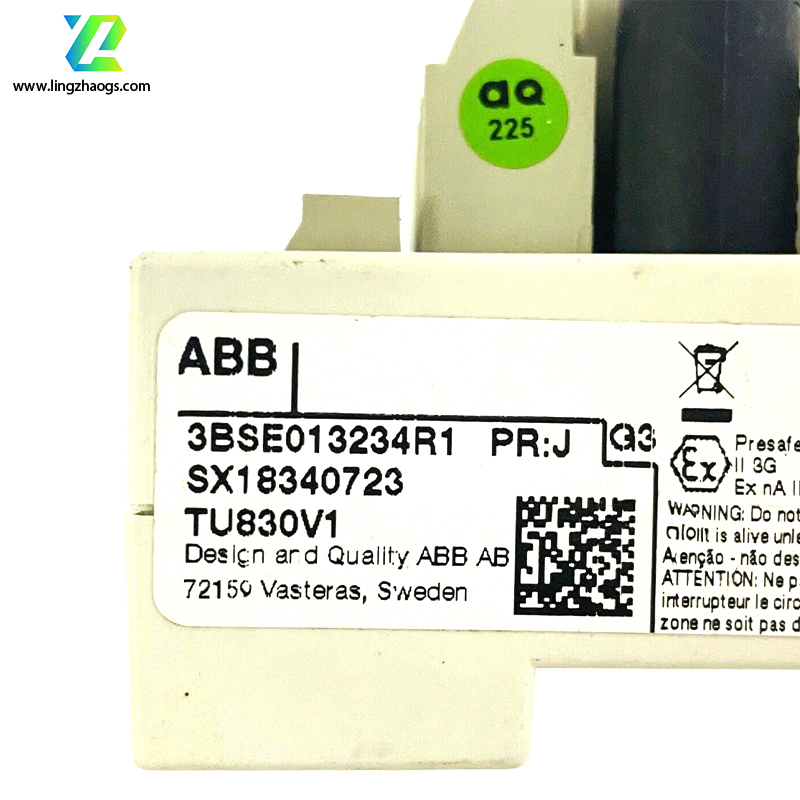

TU830V1 is typically an input/output (I/O) module manufactured by ABB. The following is a detailed introduction from aspects of its functional features, technical parameters, installation, and protection:
It is mainly used for the expansion of control systems and can be connected to the main controller via the module bus, enabling the control of digital and analog input/output signals. This expansion capability allows the control system to adapt to scenarios with more complex I/O requirements, such as large-scale industrial production lines that need to monitor and control multiple devices simultaneously.

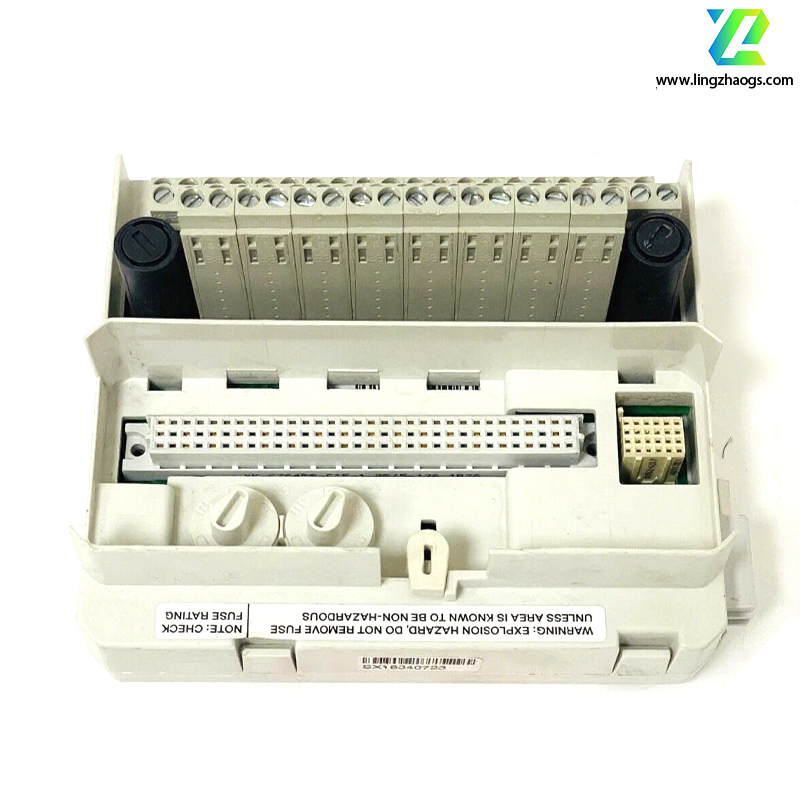

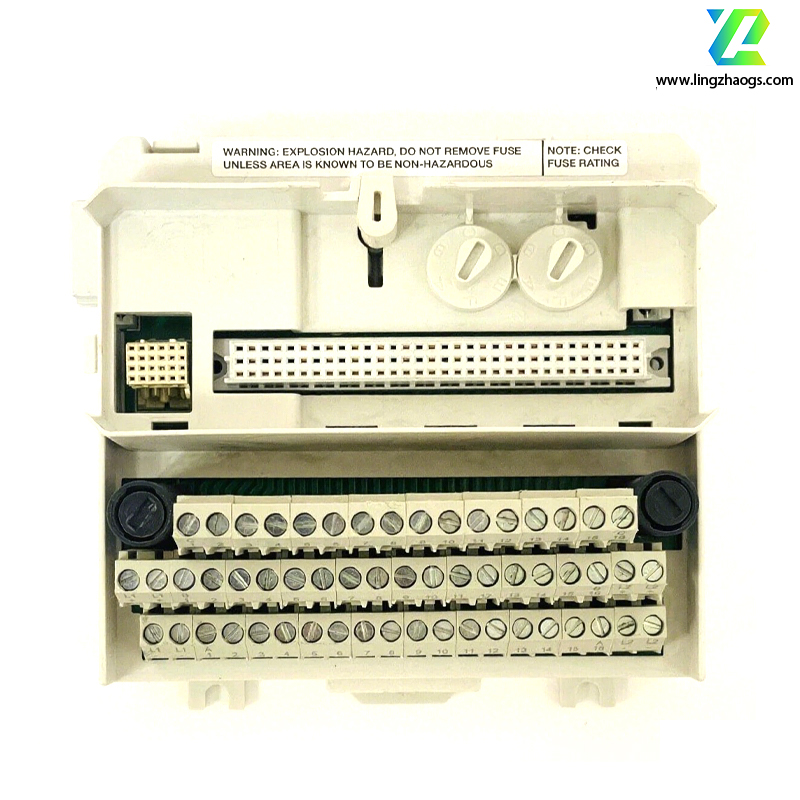

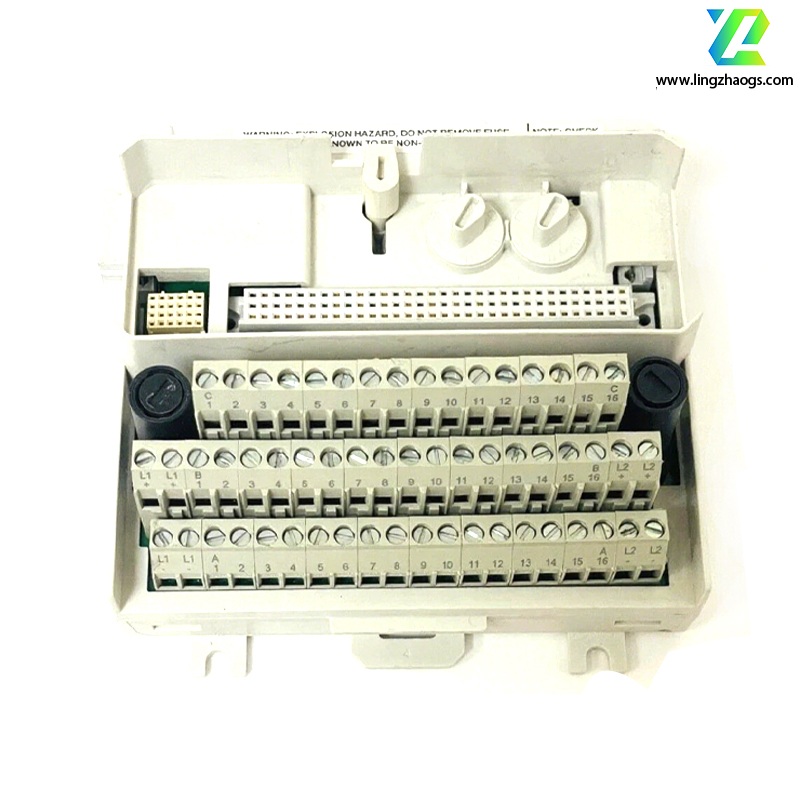

It can have a maximum of 16 I/O channels and two process voltage connections. Each channel is equipped with two I/O connections and one ZP (Zero Potential) connection. The multi-channel design ensures that the module can connect to a large number of on-site devices (such as sensors and actuators) at the same time, while the ZP connection helps maintain signal stability and reduces interference between channels.
It has built-in diagnostic and fault detection functions, which can promptly identify problems occurring during the module's operation (such as channel faults, power abnormalities, or communication interruptions). This helps maintenance personnel quickly locate and troubleshoot faults, minimizing system downtime and improving the overall reliability of the industrial control system.
- Input Voltage: 24V DC
- Input Current: 200mA
- Output Voltage: 24V DC
- Output Current: 500mA
The standardized 24V DC power supply is widely used in industrial environments, ensuring compatibility with most on-site sensors (such as proximity switches) and small actuators (such as micro-solenoid valves). The output current of 500mA can provide sufficient driving capability for common industrial execution components.
The response time is less than 1ms. This fast response capability ensures that the module can quickly react to input signals (such as emergency stop signals from sensors) and promptly output control commands to actuators. It is particularly critical for high-speed industrial control scenarios (such as automated assembly lines and precision machining equipment), where it helps maintain the accuracy and efficiency of the production process.
It adopts a PROFIBUS DP communication interface. As a widely used fieldbus protocol in the industrial automation field, PROFIBUS DP supports high-speed data transmission (up to 12Mbps) and has strong anti-interference performance. This allows the TU830V1 module to easily communicate and exchange data with other devices (such as PLCs, DCS controllers, or remote I/O stations) in the industrial control system, meeting diverse communication needs in complex automation networks.
The operating temperature range is -20℃ to 70℃. This wide temperature adaptability enables the module to work stably in harsh industrial environments, such as low-temperature outdoor control cabinets or high-temperature workshops (such as metallurgical and chemical production sites), without being affected by extreme temperature changes.

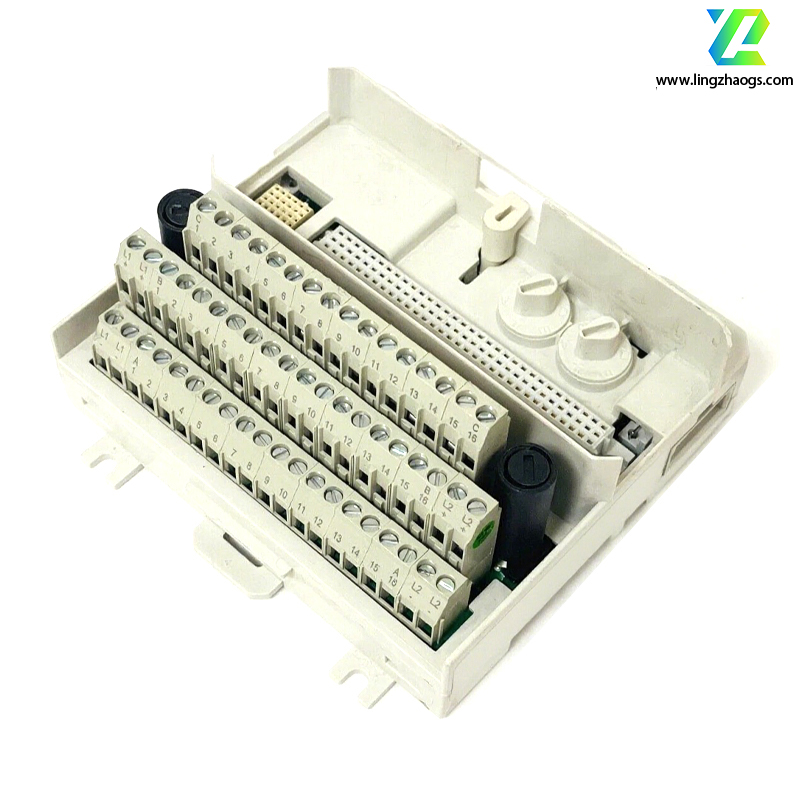

It adopts DIN rail mounting. DIN rail is a standard mounting structure in industrial control cabinets, which allows quick installation and disassembly of the module. This not only simplifies the system integration process but also facilitates later maintenance and expansion (such as adding or replacing modules without modifying the overall cabinet structure).
- Overvoltage and Short-Circuit Protection: It is equipped with overvoltage and short-circuit protection functions. When an overvoltage (such as power surges) or short-circuit (such as accidental wiring errors) occurs in the circuit, the protection mechanism is triggered immediately to cut off the abnormal current/voltage, preventing damage to the TU830V1 module and connected on-site devices.
- Mechanical Keying: It is designed with mechanical keying, which can prevent incorrect insertion of I/O modules (i.e., avoiding inserting modules of incompatible models into the wrong slots). This reduces the risk of system malfunctions or module damage caused by human operation errors, improving the safety and stability of the entire control system.
TU830V1 is suitable for application fields that require control of multiple input and output signals. It is widely used in automated control systems, industrial process control, power systems, and manufacturing industries. For example:
- In automated production lines (such as automobile parts assembly lines), it can monitor the status of multiple sensors (e.g., part in-place detection) and control the action of actuators (e.g., clamping cylinders);
- In industrial process control (such as chemical reaction tanks), it can collect analog signals (e.g., temperature and pressure) and output control signals to adjust valves or pumps;
- In power systems (such as substation auxiliary control), it can monitor the on/off status of switches and control the operation of cooling fans or indicator lights.
Overall, it helps achieve precise control and monitoring of the production process, thereby improving production efficiency and product quality.
