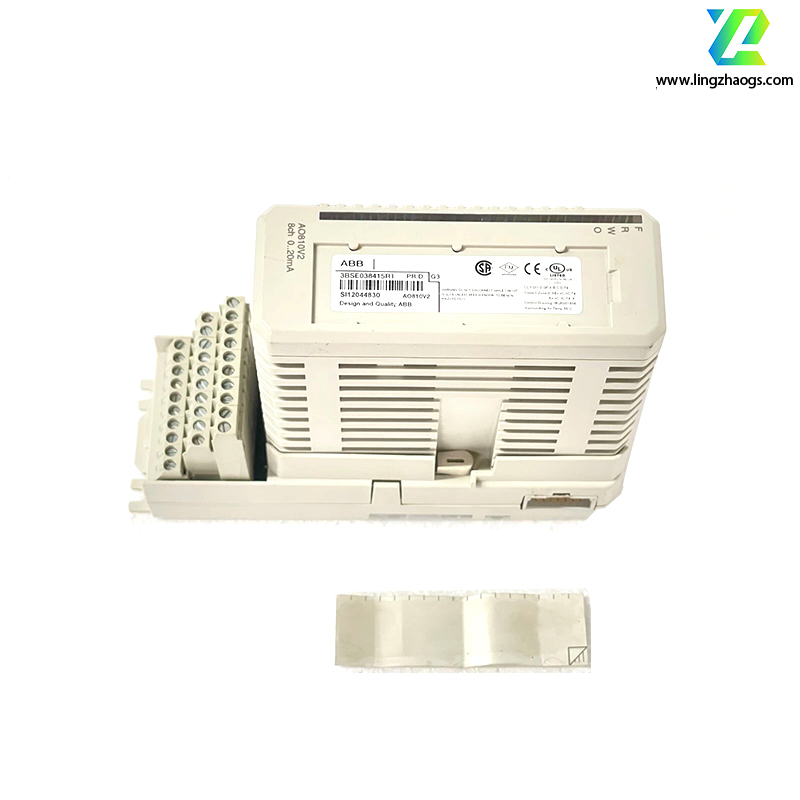

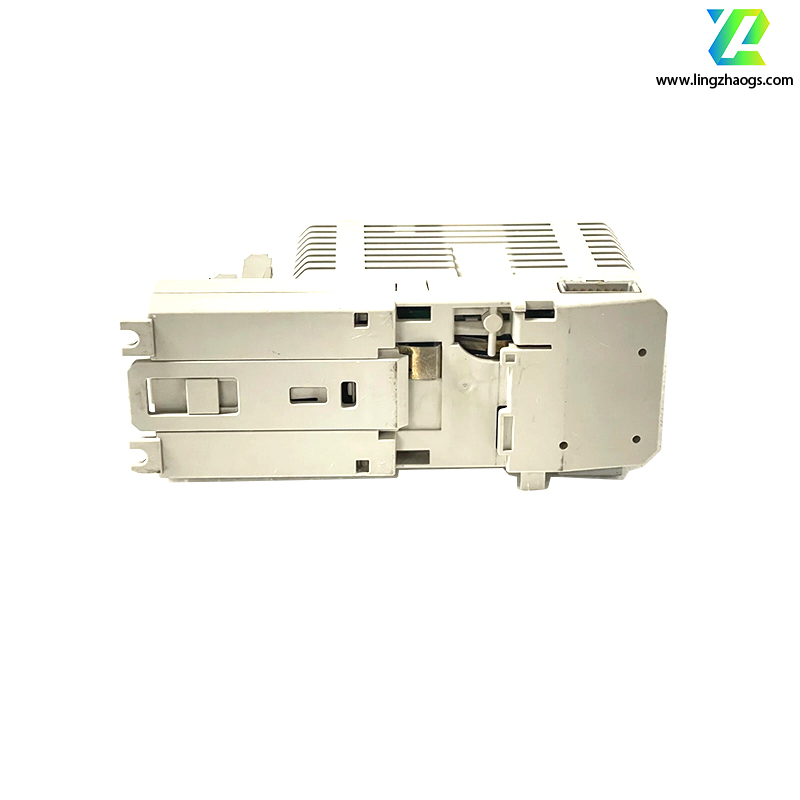

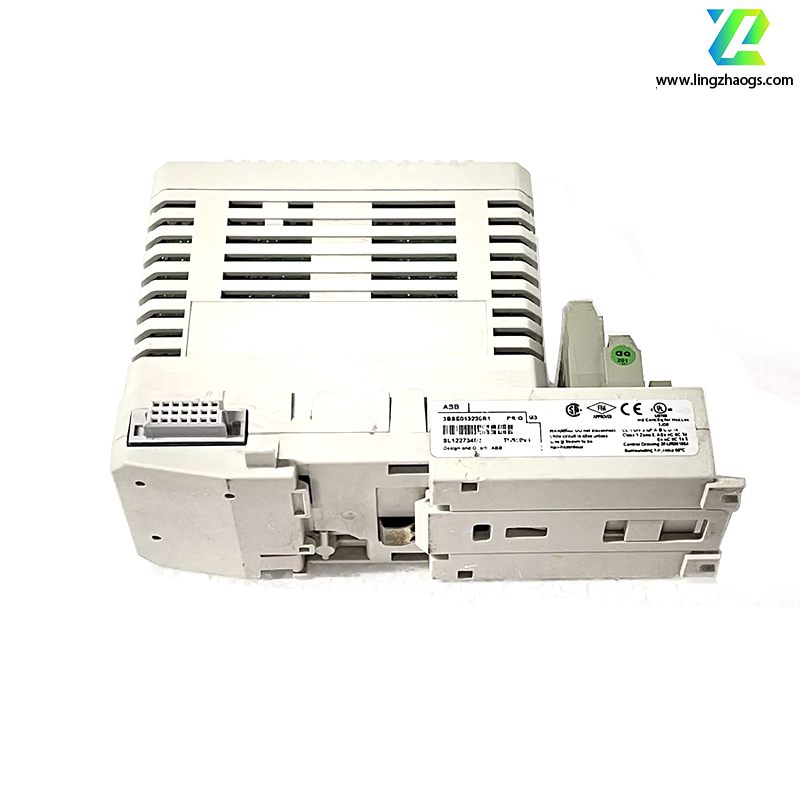

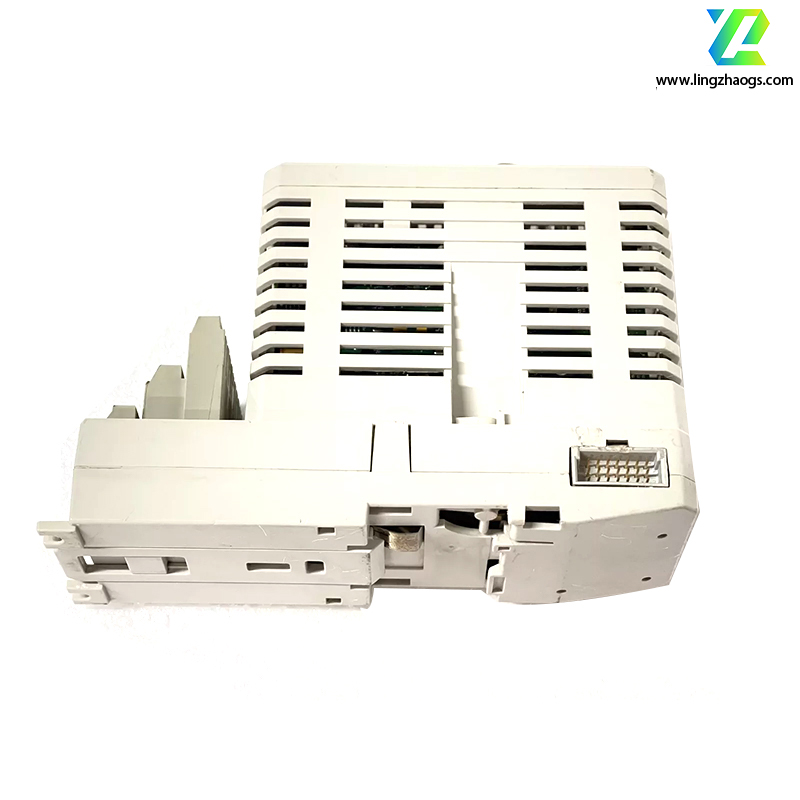

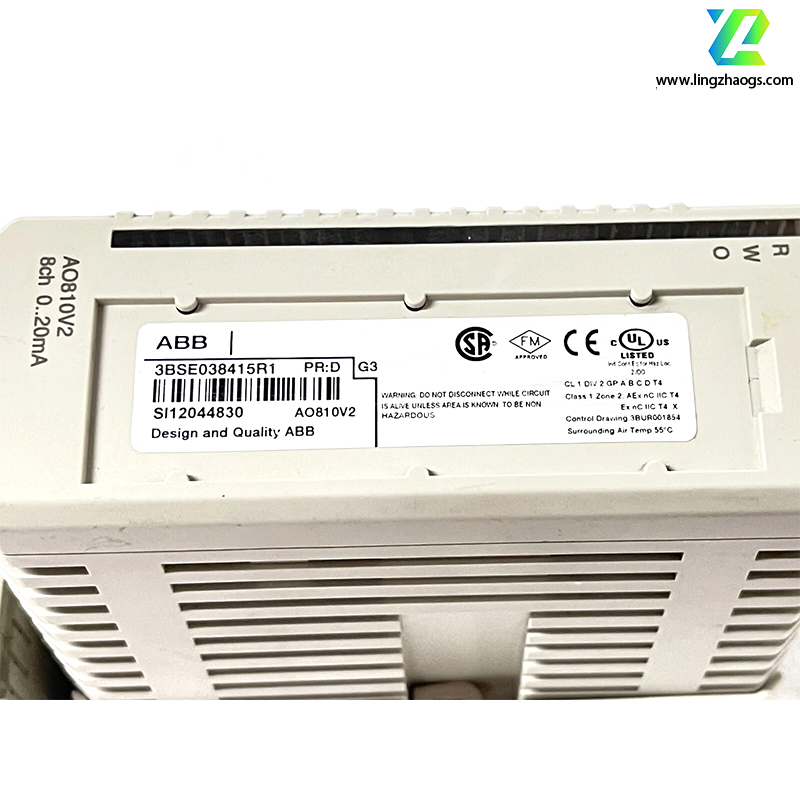

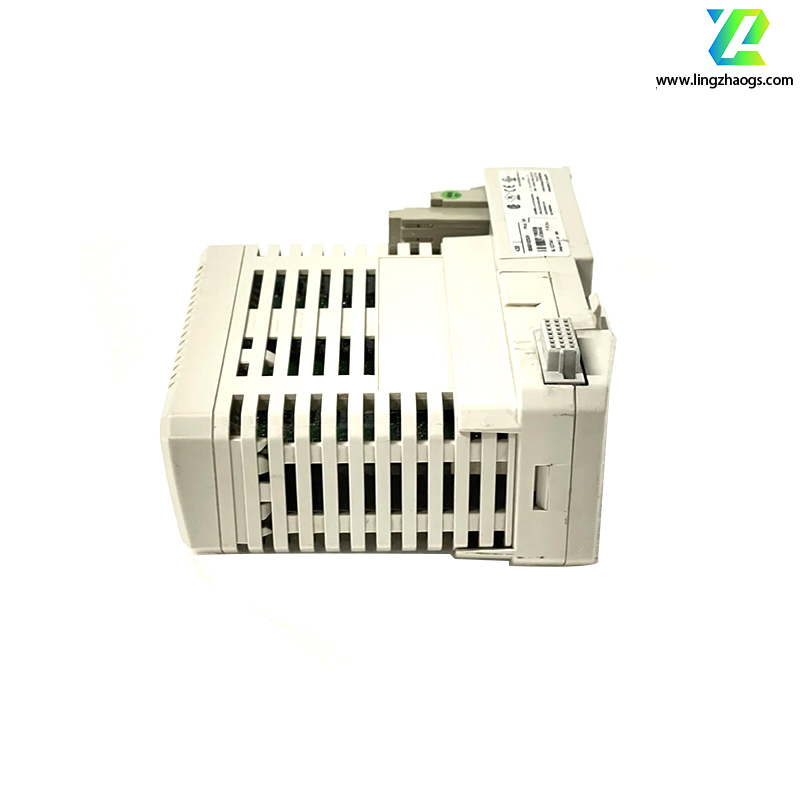

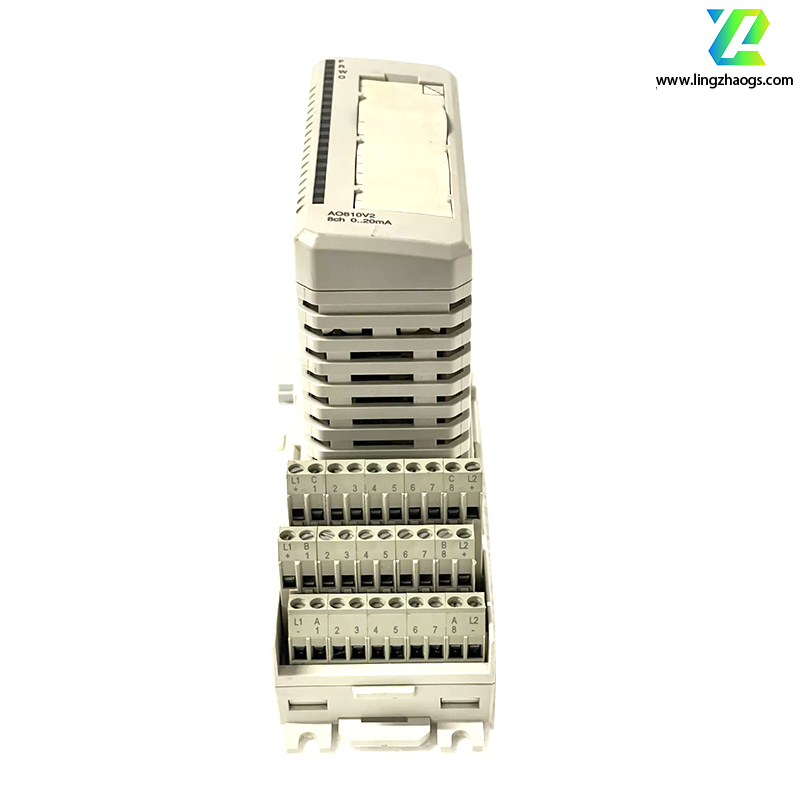

The AO810V2 is an analog output module from ABB, with the part number 3BSE038415R1. Here are its detailed specifications:
Primarily used to convert digital signals into analog signals for controlling analog devices or systems. This conversion enables precise regulation of industrial processes by translating discrete digital commands from controllers into continuous analog outputs.
Ensures the accuracy and stability of output signals, making it suitable for high-precision control scenarios where even small deviations could affect process quality (e.g., fine-tuning of chemical reaction parameters or precision temperature control).
Supports various output types including voltage and current outputs, allowing it to adapt to different application requirements. This flexibility enables compatibility with a wide range of actuators and analog devices in industrial systems.
Users can configure and control the module’s output signals through programming. This customizable feature allows the module to be tailored to specific process needs, such as adjusting output ranges or response characteristics.
Equipped with simple configuration and debugging functions, facilitating user-friendly setup, testing, and maintenance. This reduces the time and effort required for on-site commissioning and troubleshooting.
Constructed with high-quality components and manufacturing processes, it offers strong stability and a long service life. This meets the high reliability requirements of industrial automation applications, ensuring continuous operation in demanding environments.
- Number of Channels: 8 unipolar analog output channels.
- Output Ranges: Supports 0-10mA, 0-20mA, 0-5V, 1-5V, and other ranges.
- Resolution: 14-bit resolution, ensuring fine-grained control over output signals.
- Load Resistance: Maximum load resistance of 500/850 ohms, compatible with most industrial actuators.
- Power Consumption: Approximately 1.1 watts, with low energy consumption to minimize power supply load.
- Operating Temperature: 0°C to +55°C, suitable for standard industrial control cabinet environments.
- Humidity: 5% to 95% non-condensing, preventing moisture-related damage in humid conditions.
- Dimensions: Net product depth 102mm, height 119mm, width 45mm—compact design for space-efficient installation.
- Weight: Approximately 0.2kg, lightweight for easy handling during installation and maintenance.
- Process Power Monitoring: Reports a channel error when the power voltage of the output circuit is too low, enabling timely detection of power supply issues.
- Channel Fault Detection: Only active on operational channels. An error is reported if the output current is less than the set output value and the set output value exceeds 1mA, helping identify issues such as open circuits or underload conditions.
Suitable for various industrial applications requiring control and regulation, including:
- Process Control: Regulating parameters such as flow, pressure, and temperature in chemical, pharmaceutical, and food processing lines.
- Servo Control: Precise control of servo motors in automated machinery and robotics.
- Speed Control: Adjusting the speed of motors in conveyor systems, pumps, and fans.
- Heating Control: Regulating heating elements in industrial ovens, furnaces, and temperature-controlled chambers.
