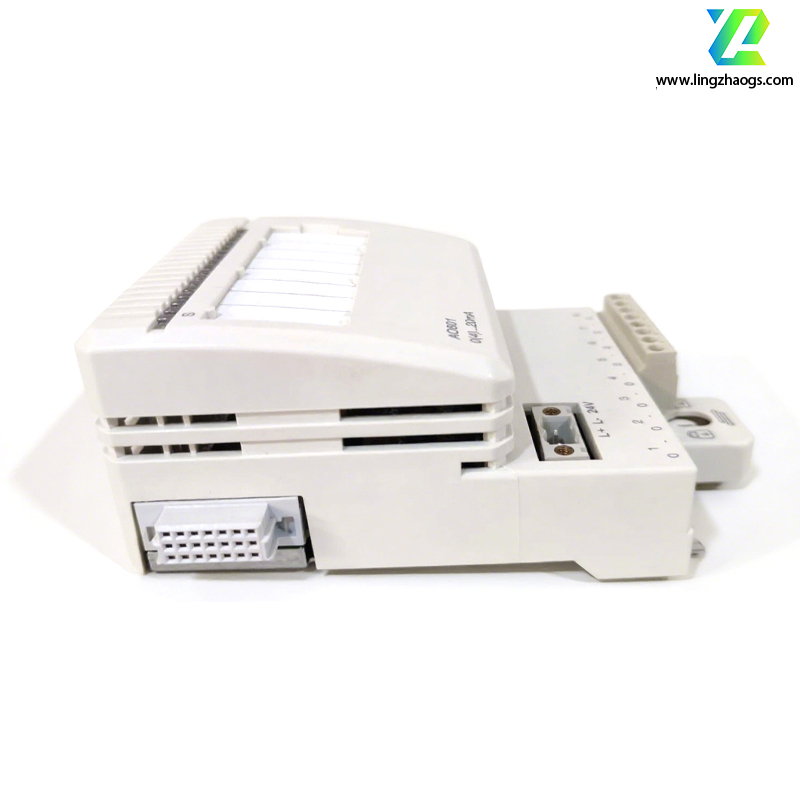

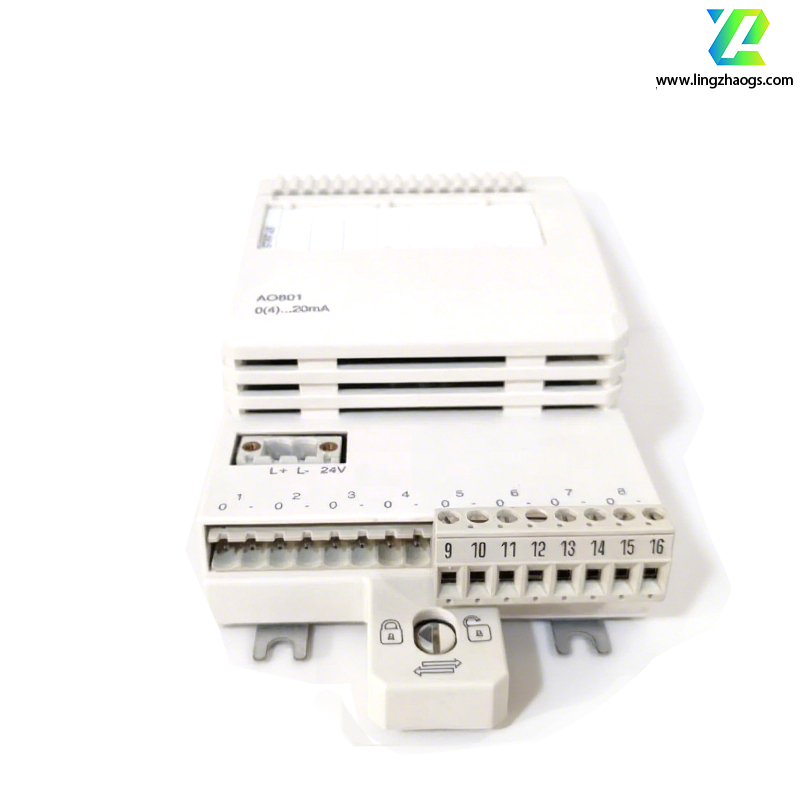

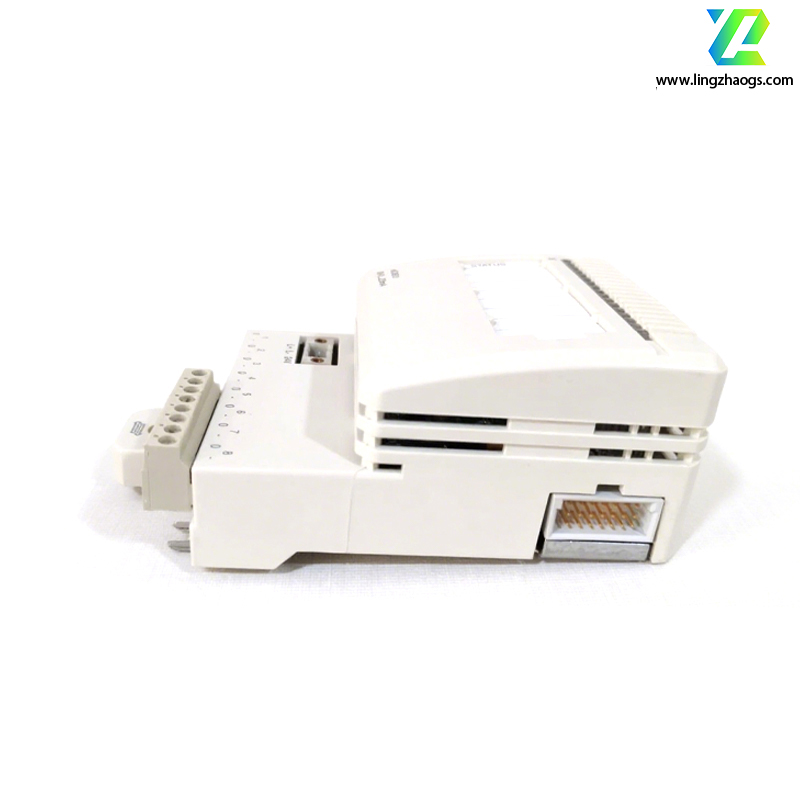

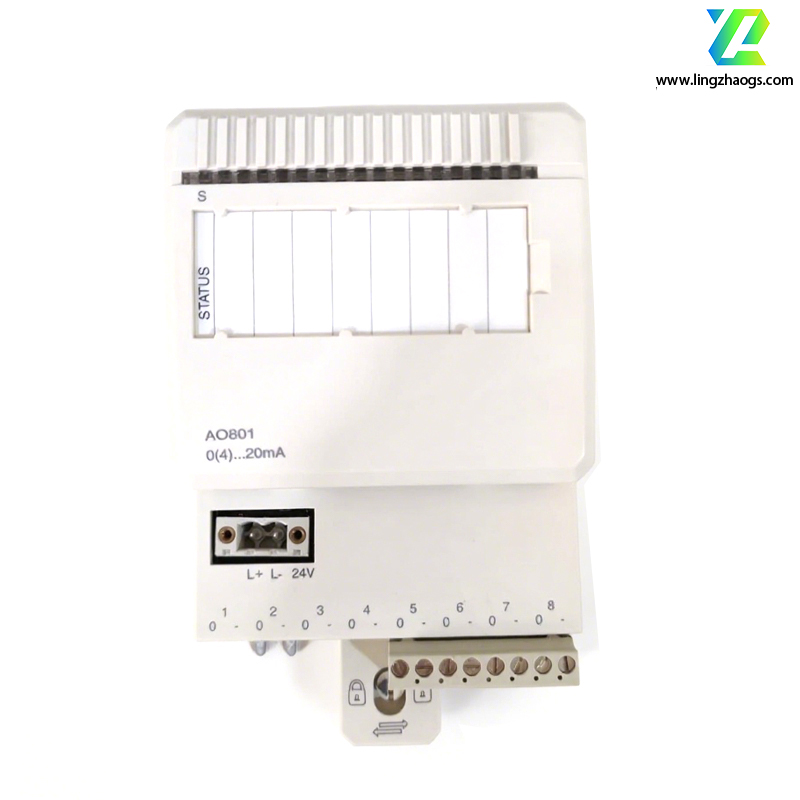

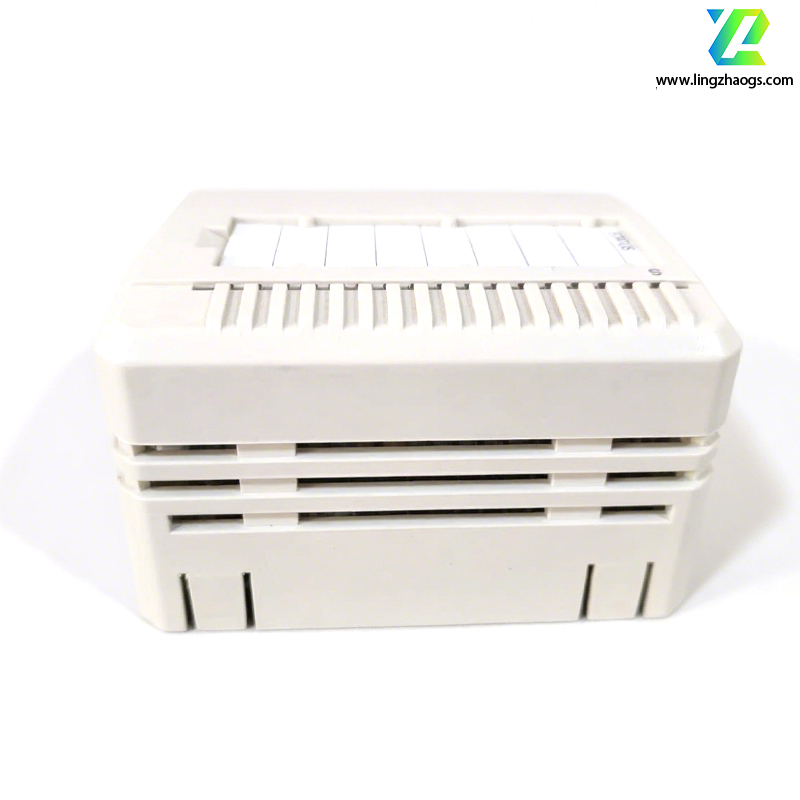

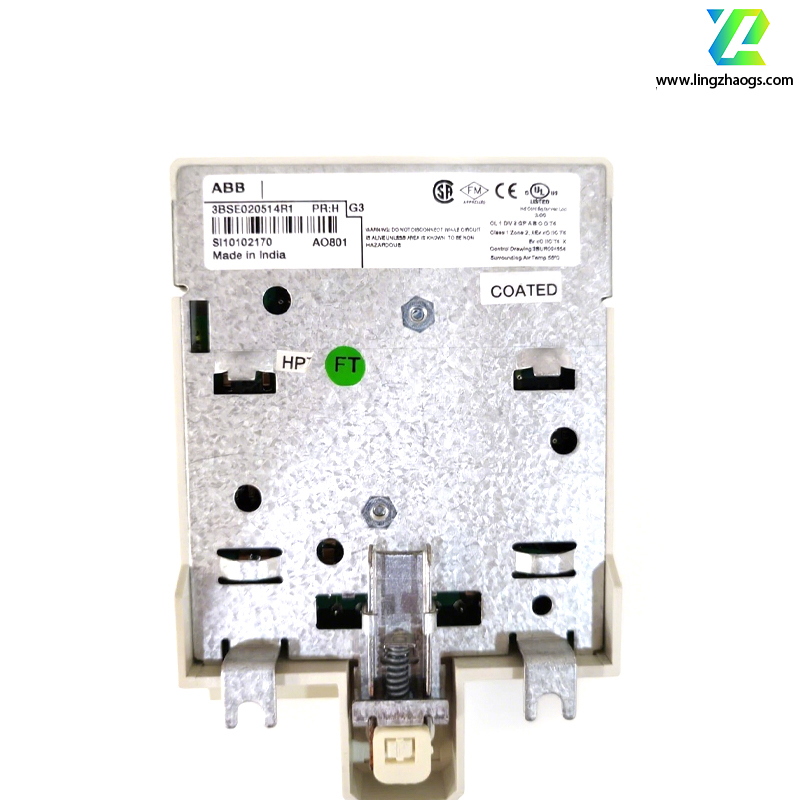

The AO801 is an analog output module manufactured by ABB, which is mainly used in industrial automation systems. The following is its detailed information:
- Model: AO801
- Brand: ABB

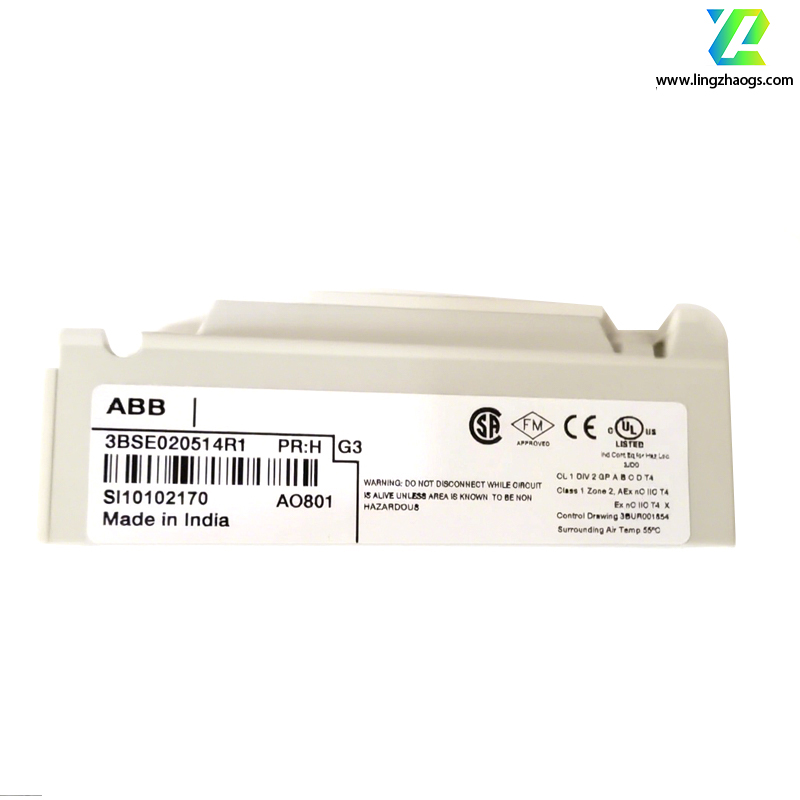

- Product Number: 3BSE020514R1
- Module Type: Analog output module
- Country of Origin: Sweden
- Applicable Systems: Often used as a local expansion module for ABB's AC500CPU, and can be combined with interface modules such as DC505 - FBP/DC551 - CS31 for distributed expansion.
- Output Channels: 8 unipolar analog output channels.
- Output Signal Range: 0 - 20mA, 4 - 20mA.
- Resolution: 12 - bit.
- Maximum Load Resistance: 850 ohms.
- Electrical Isolation: There is current isolation between the channel and the backplane.
- Short - Circuit Protection: Yes, the analog output can be short - circuited to ZP or +24V.
- Output Status Protection (OSP): Can set the output to a predetermined state when an error is detected.
- Power Supply: 24V DC.
- Dimensions: 86.1mm×58.5mm×102mm (W×D×H).
- Weight: Approximately 0.24 kg.
- Environmental Compliance: RoHS compliant, in line with EU directive 2011/65/EU; WEEE category 5 - small equipment (no external dimension more than 50 cm).
- Self - diagnosis Function: The module cyclically performs self - diagnosis to ensure the normal operation of the module.
- Flexible Connection: Connected to the process and power supply through detachable connectors.
- High - precision Output: With a 12 - bit resolution, it can provide relatively accurate analog output signals.
- Wide Application Range: It can be used in various industries such as manufacturing, energy and power, chemical and petroleum, to control and regulate parameters such as flow, temperature, pressure, and liquid level.
