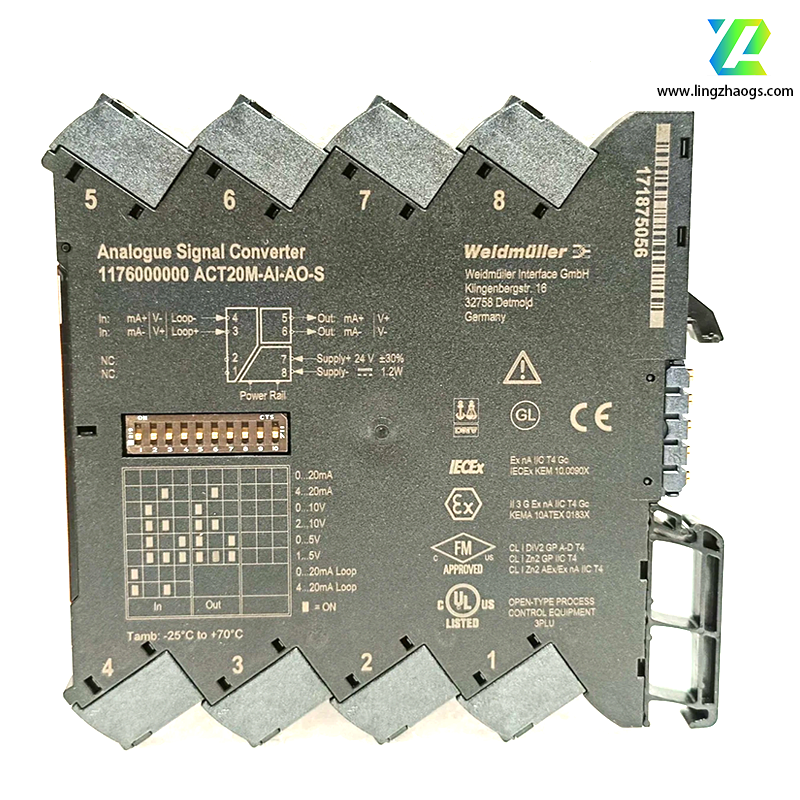

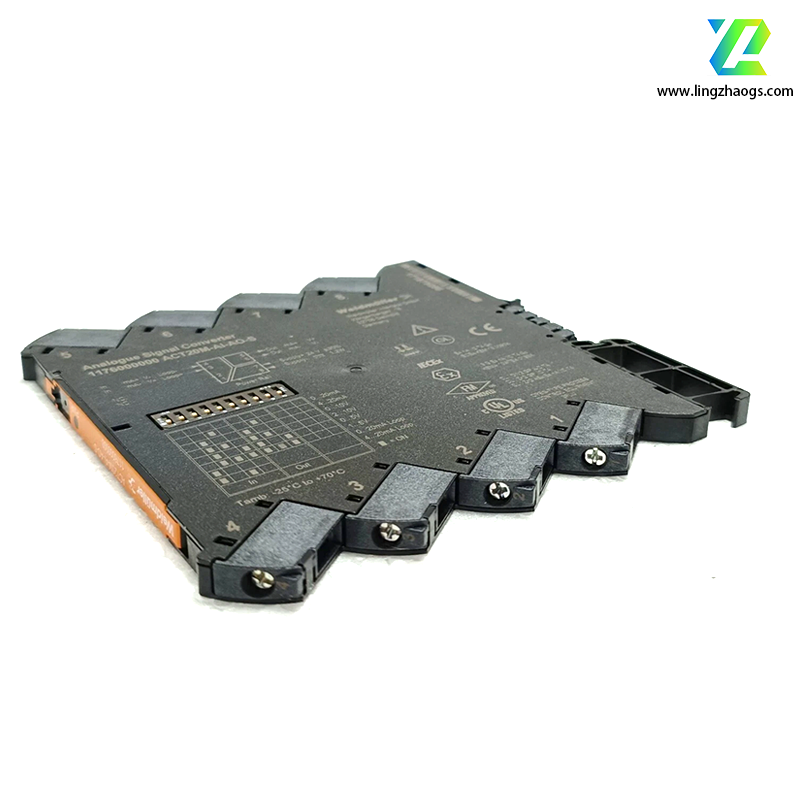

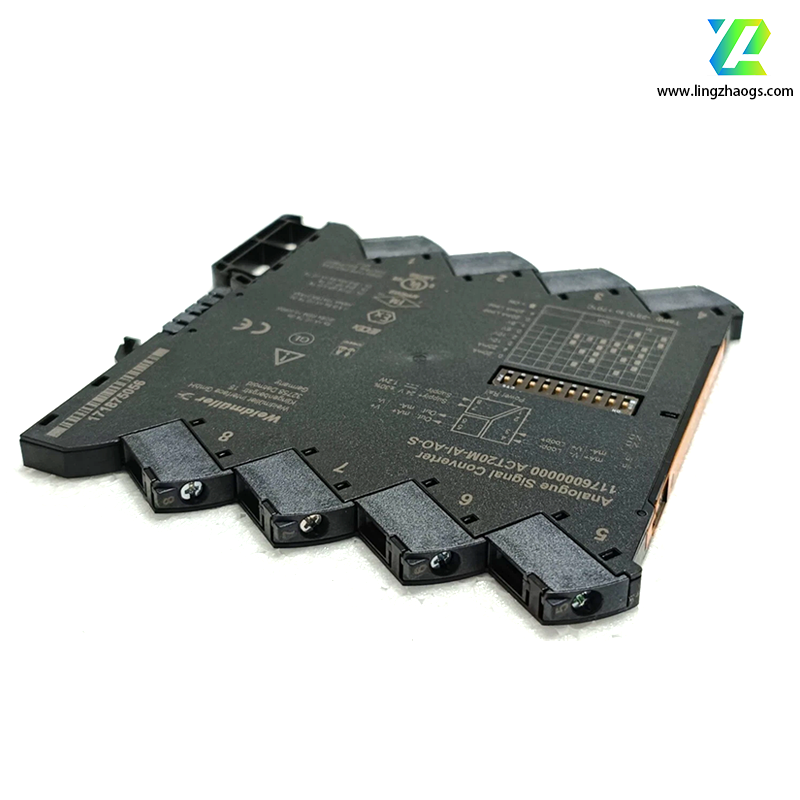

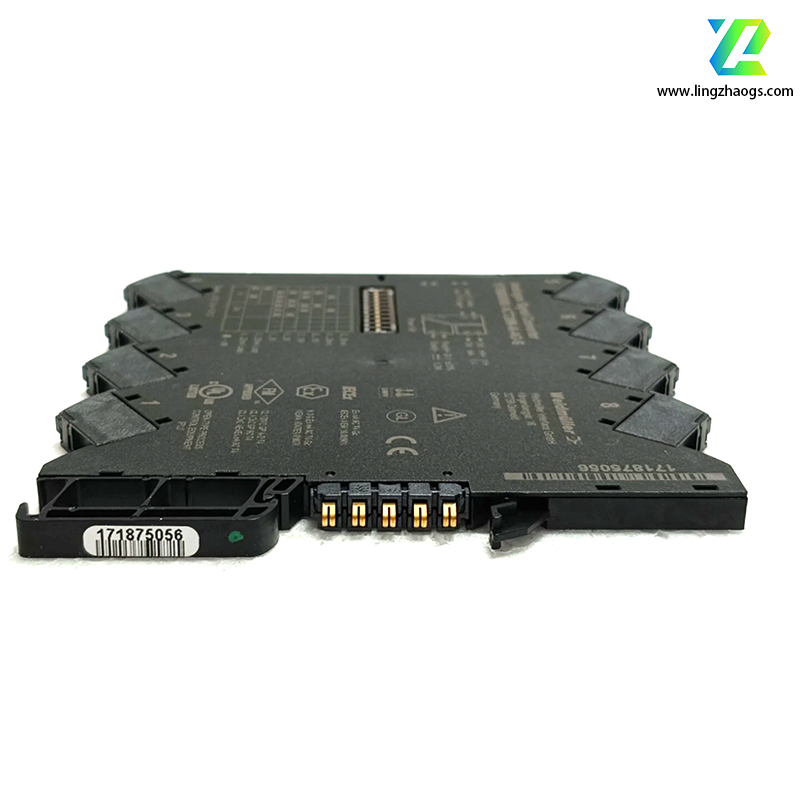

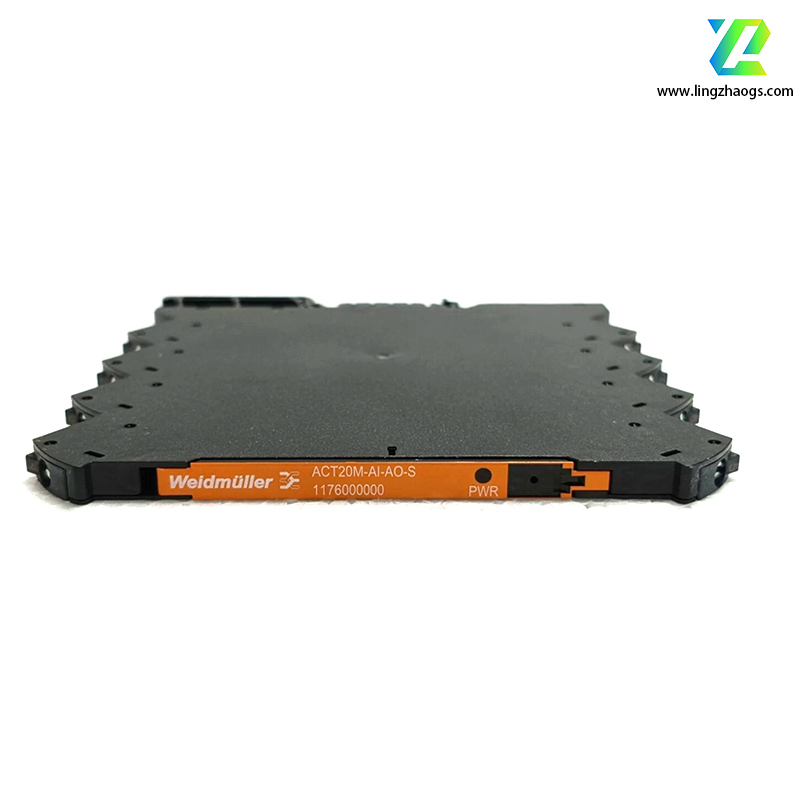

WEIDMULLER 1176000000 is a signal converter/isolator manufactured by Weidmüller, a leading provider of industrial connectivity and automation solutions. It is designed to optimize signal transmission between devices in industrial systems while ensuring electrical isolation and stable power supply for sensors. Below are its detailed specifications:
- Model Number: 1176000000
- Product Name: Configurable Signal Converter/Isolator with Sensor Supply
- Product Category: Industrial Signal Conditioning Device (signal conversion + isolation + sensor power supply integrated)
- Signal Isolation: Provides electrical isolation between input, output, and power supply circuits to prevent interference from ground loops, voltage spikes, or noise in industrial environments, protecting sensitive equipment and ensuring signal accuracy.
- Signal Conversion: Supports bidirectional conversion between common industrial signals, enabling compatibility between devices with different signal types.
- Sensor Power Supply: Delivers a stable power output to power external industrial sensors (e.g., pressure sensors, temperature transmitters), eliminating the need for an additional independent power source.
- Supply Voltage: 24V DC
- Rated Power Consumption: 0.84W
- Mounting Method: TS35 DIN Rail Mounting (complies with IEC 60715 standard, the most common rail type for industrial control cabinets, enabling quick assembly and space-saving layout).
- Dimensions (L×W×H): 114.3mm (depth) × 6.1mm (width) × 112.5mm (height)(Ultra-compact width design, suitable for dense installation in narrow control cabinet spaces.)
- Terminal Torque Requirement: 0.4–0.6 N·m (ensures secure wire connection and prevents loose contacts caused by vibration in industrial sites).
- Response Time: ≤ 7ms (ensures fast signal conversion and real-time data transmission for time-sensitive industrial processes).
- Conversion Accuracy: ≤ 0.05% (high precision, minimizes signal distortion and ensures reliable data collection/control).
- Operating Temperature Range: -25℃ to +70℃ (adapts to harsh temperature conditions in factories, workshops, or outdoor industrial installations).
- Isolation Voltage: Typically 2.5kV AC (between input/output/power supply, meets industrial safety standards for electrical isolation).
