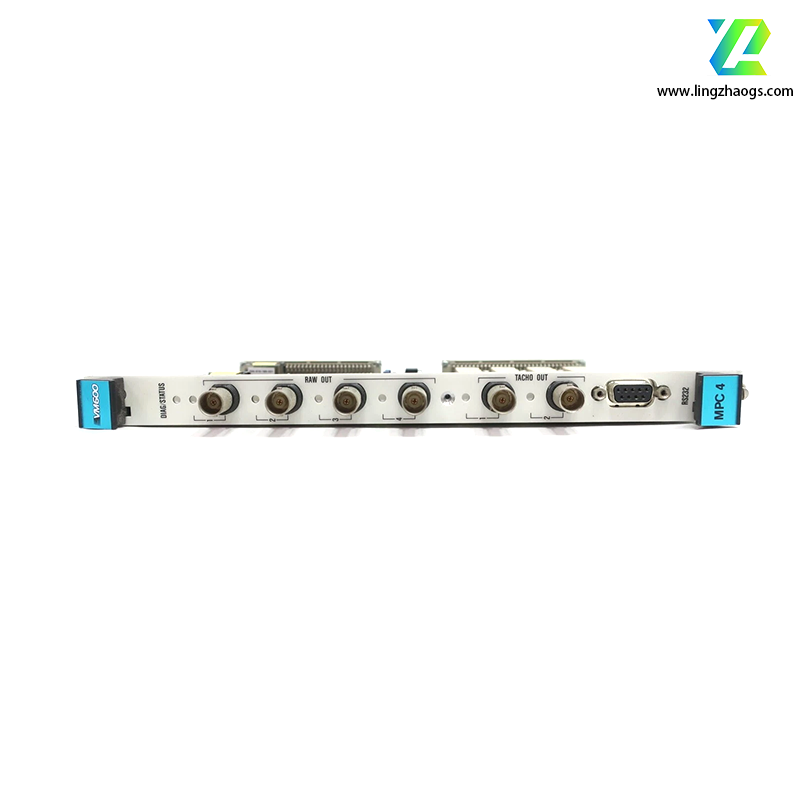

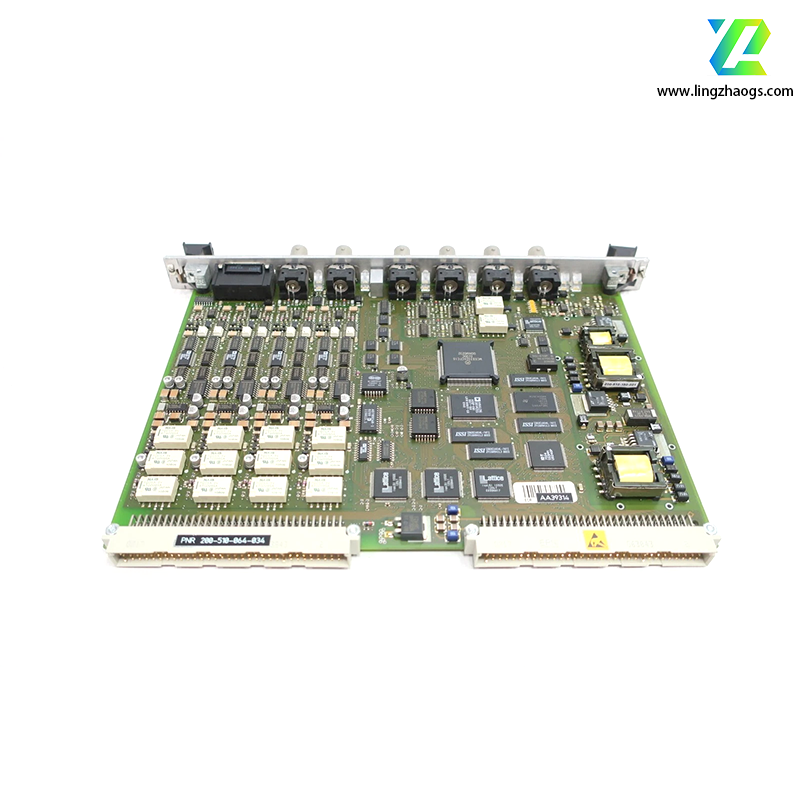

The Vibro-Meter 200-510-064-034 is a machinery protection card of the VM600 series, manufactured by Meggitt PLC under the Vibro-Meter brand. It is mainly used for condition monitoring and predictive maintenance of rotating machinery. The following is the detailed information:
- Manufacturer: Meggitt PLC (Vibro-Meter brand)
- Product Series: VM600 Series
- Product Type: Mechanical Protection Card
- Function: Provides high-precision vibration and condition monitoring for rotating machinery and critical equipment, enabling accurate data collection and analysis.
- Input Channels: 4 dynamic signal channels for receiving vibration, acceleration, displacement (proximity) and other signals, and 2 speed channels for measuring the rotational speed of machinery.
- Input Range: For dynamic signals, the DC range is 0 to +20V or 0 to -20V, the AC range is ±10V max., and the input impedance is 200kΩ. The acceleration measurement range is 0.001gFS to 10gFS, with an accuracy of ±2%, and the speed measurement range is 0rpm to 10000rpm, with an accuracy of ±1%.
- Outputs: Supports analog signal outputs (such as 4-20mA), relay outputs for alarm signals, and digital signal outputs (using communication protocols like MODBUS, TCP/IP).
- Supports standard industrial communication interfaces, including MODBUS and Ethernet, which is convenient for communication with upper - computer, DCS/PLC systems for centralized management and analysis.
- Programmability: Fully programmable, with programmable wide - band and narrow - band filters, and capable of monitoring both amplitude and phase. It also supports programmable alarm, danger and determination set points, as well as adaptive alarm and danger levels.
- Diagnostic Function: Supports real - time plug - in (hot - swappable) and performs self - test and diagnostic procedures at power - up. The built - in "OK system" continuously monitors the signal levels provided by the measurement chain and displays any problems caused by broken transmission lines, sensor or signal conditioner failures.
- Sensor Compatibility: Accepts signals from various sensors, including proximity probes, magnetic pulse pickup sensors, or TTL signals, and has integrated power supplies for sensors and signal conditioners such as IEPE accelerometers and proximity measurement systems.
- Power Supply: Usually 24VDC.
- Operating Temperature: -20°C to +60°C (some sources indicate -40°C to +85°C).
- Dimensions: Approximately 200mm x 100mm x 60mm to 210mm x 170mm x 75mm.
- Weight: Approximately 1.5kg.
- Protection Level: IP20.
