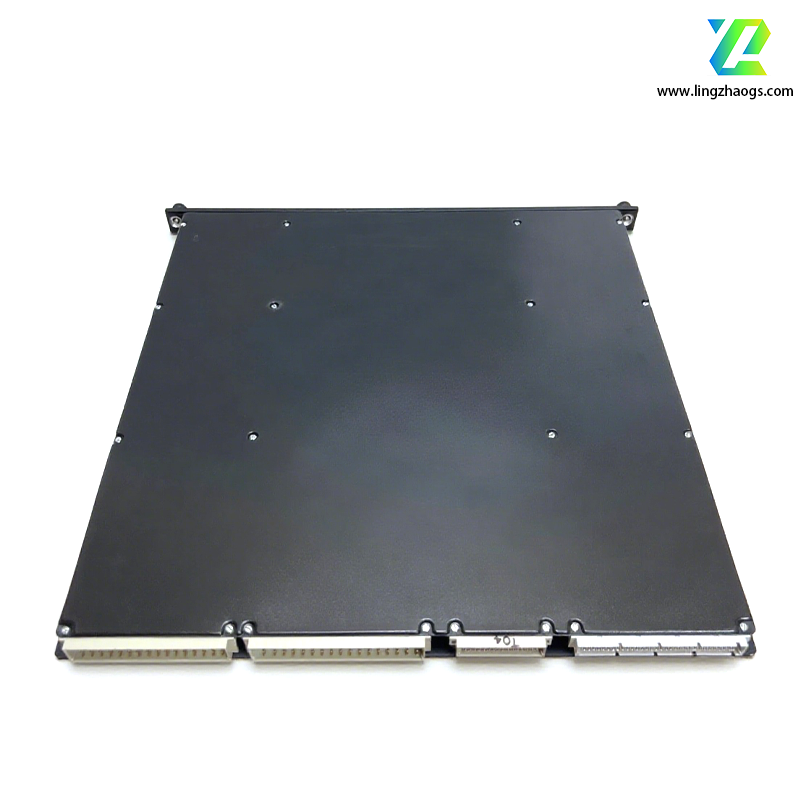

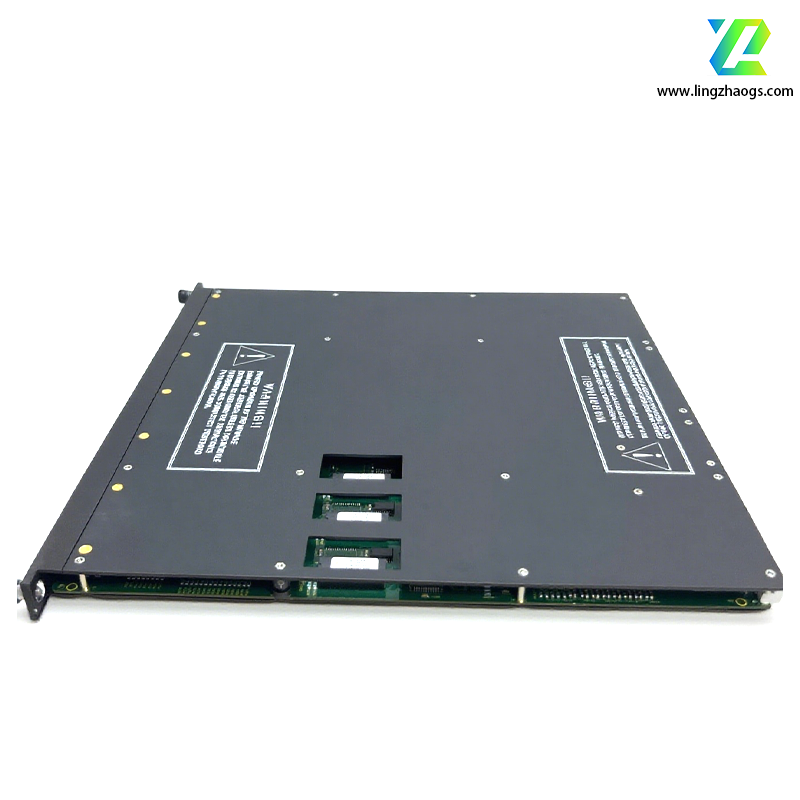

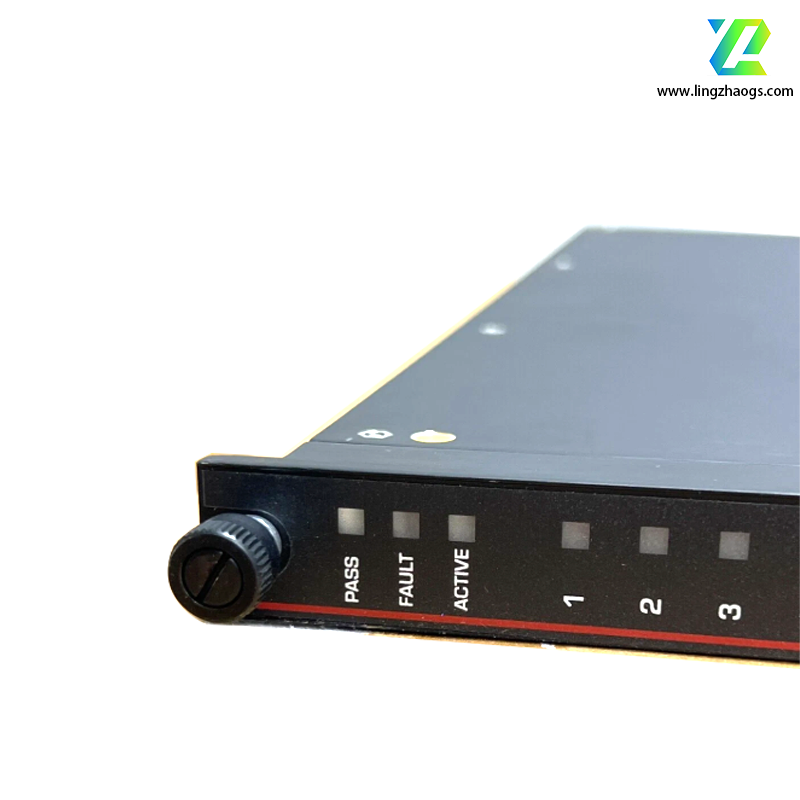

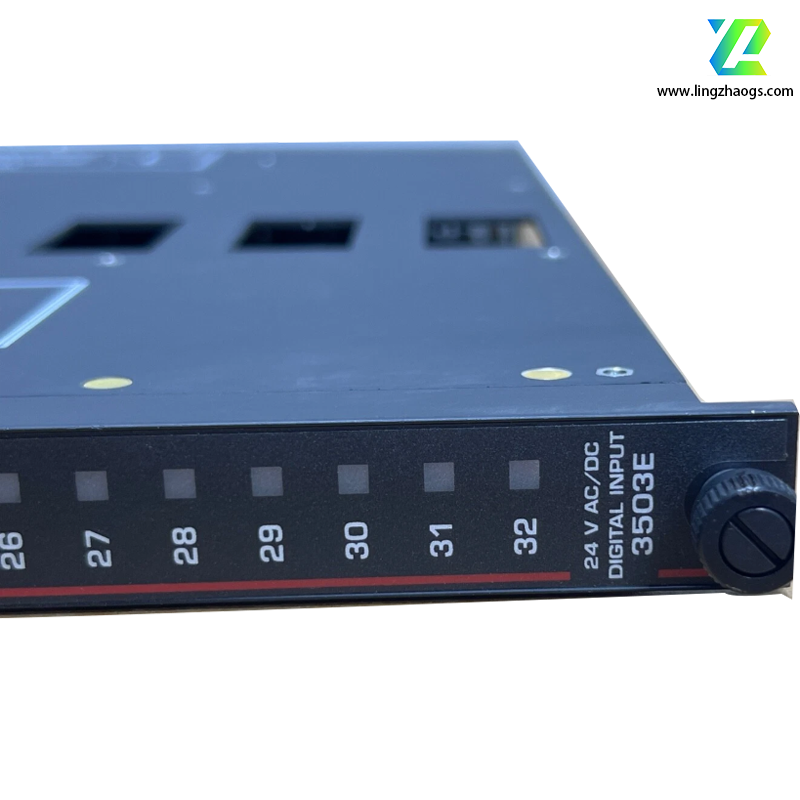

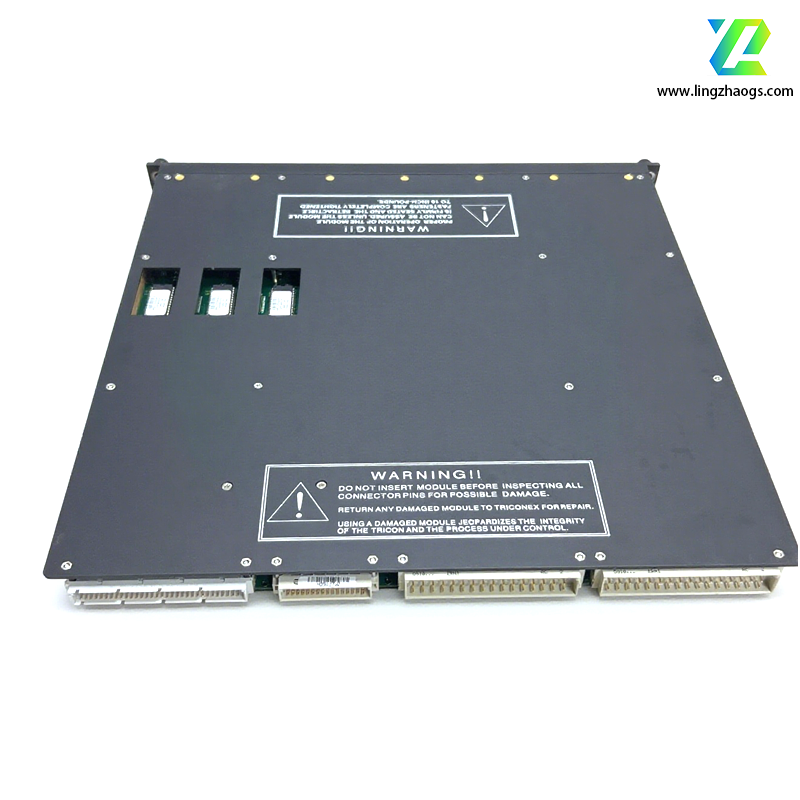

The TRICONEX 3503E is a digital input module designed for industrial control systems, especially suitable for applications that require high reliability and precision in monitoring and controlling various signals in harsh environmentstriconex1.com. Here are the details:
- Basic Information
- Manufacturer: Triconex.
- Product Type: Digital input module.
- Origin: USA.
- Technical Specifications
- Input Channels: It has 32 digital input channels, which are grouped into 4 groups with 8 channels in each group.
- Input Signal Type: It supports a variety of input signal types, including 24 VDC, 48 VDC, 125 VDC, and 125 VAC, etc.
- Input Voltage Range: The DC voltage input range is 20 - 42.5 VDC, and the AC voltage input range is 10 - 42.5 VAC. The recommended input range is 20 - 42.5 VDC, and the maximum voltage is 42.5 VAC/VDC.
- Input Frequency Rangetriconex1.com: DC or 47 - 63 Hz.
- Input Impedance: 220 kΩ.
- Response Time: ≤ 10 ms.
- Isolation Voltage: Up to 250 V, which can effectively prevent signal interference and improve the system's anti - interference ability and reliability.
- Product Features
- High Reliability: It inherits the consistent high - reliability characteristics of Triconex products and has passed multiple safety standard certifications, including SIL3 and IEC 61508, etc., which can ensure the safety and reliability of the product.
- Triple Modular Redundancy (TMR): It provides three independent channels for each input signal, which can improve system availability and reliability, and ensure continuous operation even in case of a single - point failure.
- Self - diagnosis Function: It has a self - check function, which can detect stuck - open or stuck - closed conditions and promptly find and report faults.
- Flexible Configuration: It supports software configuration, and users can flexibly adjust the type and parameters of input signals according to actual needs, which improves the versatility and adaptability of the equipment.
- Convenient Installationtriconex1.com: The module has a user - friendly design, and its installation and integration are straightforward. It can be seamlessly integrated into the existing system, allowing for easy upgrades without disrupting operations.
- Operating Environment
- Operating Temperature: - 20 °C to + 60 °C.
- Relative Humidity: 0% - 95% (non - condensing).
- Vibration Resistance: It can withstand 0.05 g rms random vibration from 20 Hz to 500 Hz.
- Shock Resistance: It can withstand a 5 g half - sine pulse shock with a duration of 11 ms.
- Application Areas: It is widely used in various industrial automation control systems, such as the oil and gas industry (including offshore platforms, pipelines, refineries), chemical industry (including chemical plants, petrochemical plants, pharmaceutical plants), and power industry (including power plants, substations, transmission lines).
