The Prosoft MVI69-PDPMV1 is a PROFIBUS DPV1 Master Network Interface Module designed for Rockwell Automation CompactLogix and MicroLogix processors. Here are the detailed contents in English:

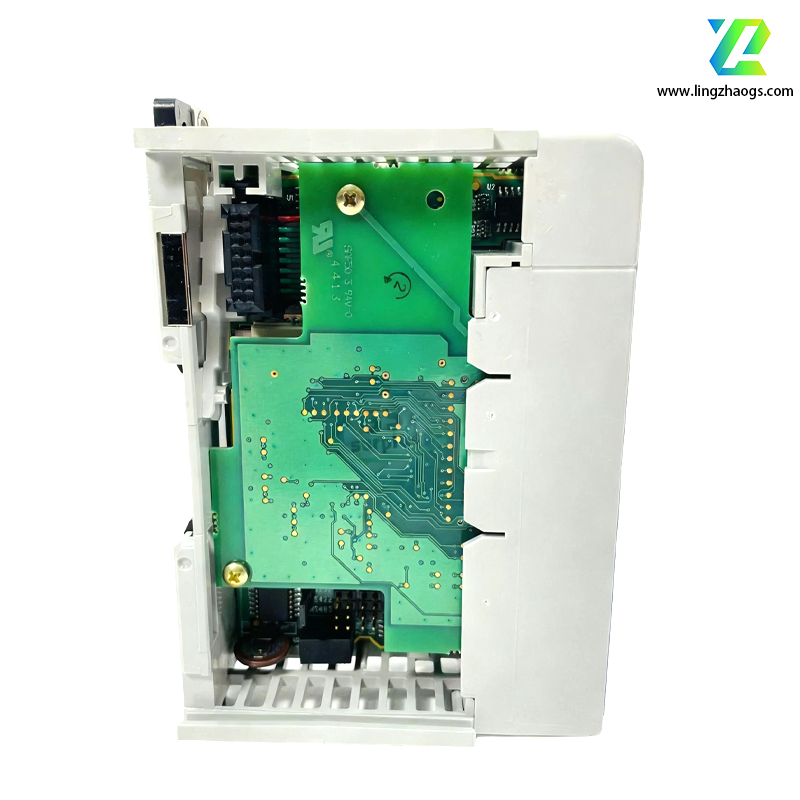

The MVI69-PDPMV1 is a single - slot module that is compatible with the 1769 backplane of Rockwell Automation CompactLogix. It is recognized as an Input/Output module and can access processor memory for data transfer between the processor and the module. It acts as a PROFIBUS DPV1 master, enabling the connected PLC to communicate with PROFIBUS DPV0/V1 slave devices.
- Protocol Support: Supports PROFIBUS DP-V1 protocol, allowing for cyclic and acyclic data transfer. Acyclic parameter data can be transferred with Class 1 or Class 2 DPV1 services. It also supports Sync and Freeze commands, as well as PROFIdrive 3.1 compliant parameter read and write operations.
- High Slave Capacity: Can support up to 125 PROFIBUS DP slave devices, with or without a PROFIBUS repeater.
- Large Data Capacity: Capable of handling up to 1536 cyclic bytes of input data and 1536 bytes of output data, providing ample data transfer capability for industrial applications.
- Easy Configuration: Configured via the included ProSoft Configuration Builder software. It has a Master Busview configuration interface, supports project - unique GSD file import library, and can automatically calculate bus parameters.
- Diagnostic Features: Supports extended diagnostic data (DPV1), allowing for detailed monitoring and troubleshooting of the PROFIBUS network and slave devices.
The MVI69-PDPMV1 is suitable for a wide range of industrial applications, including process control, factory automation, material handling, building automation, and energy management. It can be used to connect various PROFIBUS - compliant devices such as sensors, actuators, and intelligent field devices to CompactLogix or MicroLogix control systems.
- Physical Dimensions: Approximately 4.88″ x 4.37″ x 1.77″ (H x W x D).
- Power Requirements: Backplane current load is 800 mA at 5 VDCprosoft-technology.com.
- Communication Parameters: The PROFIBUS interface is RS - 485 optically isolated with an on - board DC - DC converter. It supports all standardized baud rates, up to 12 Mbps. The PROFIBUS connector is a standard DB - 9 Femaleplcdcspro.com.
- Operating Temperature Range: - 40°C to 85°C.
- Storage Temperature Range: Typically - 40°C to 85°C.
- Relative Humidity: 5% to 95% (non - condensing).
- LED Indicators: Usually includes indicators for power, module status, application status, serial port activity, and error status.
For more detailed and accurate information, it is recommended to refer to the official MVI69-PDPMV1 User Manual provided by ProSoft Technology.
