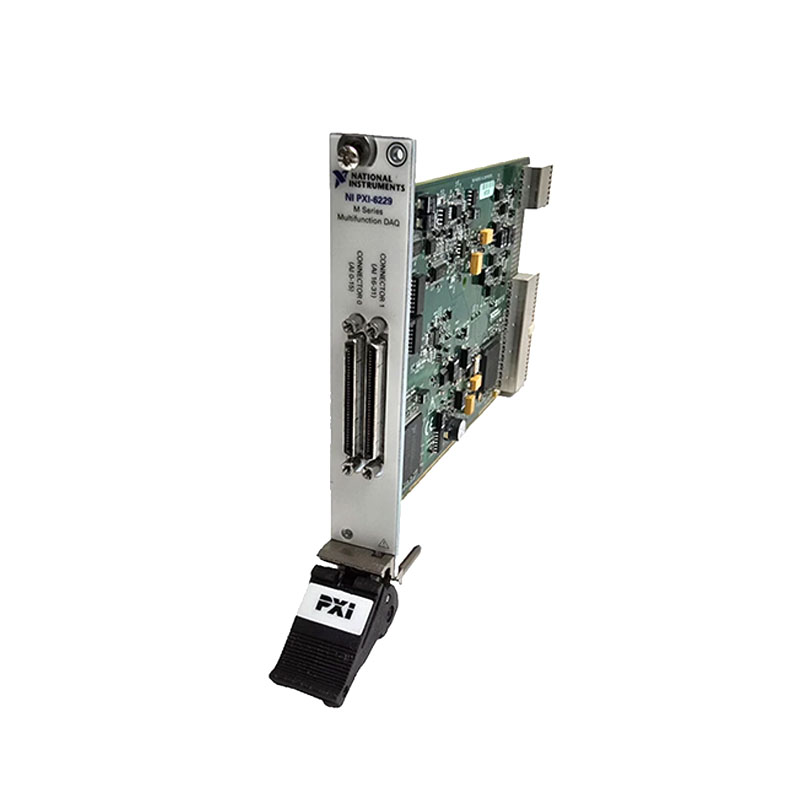

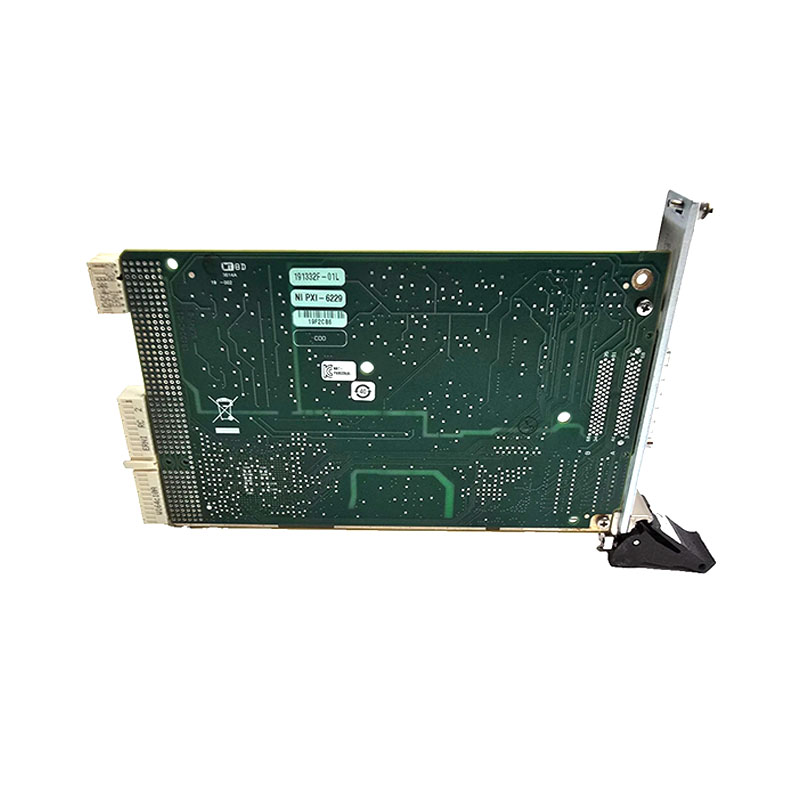

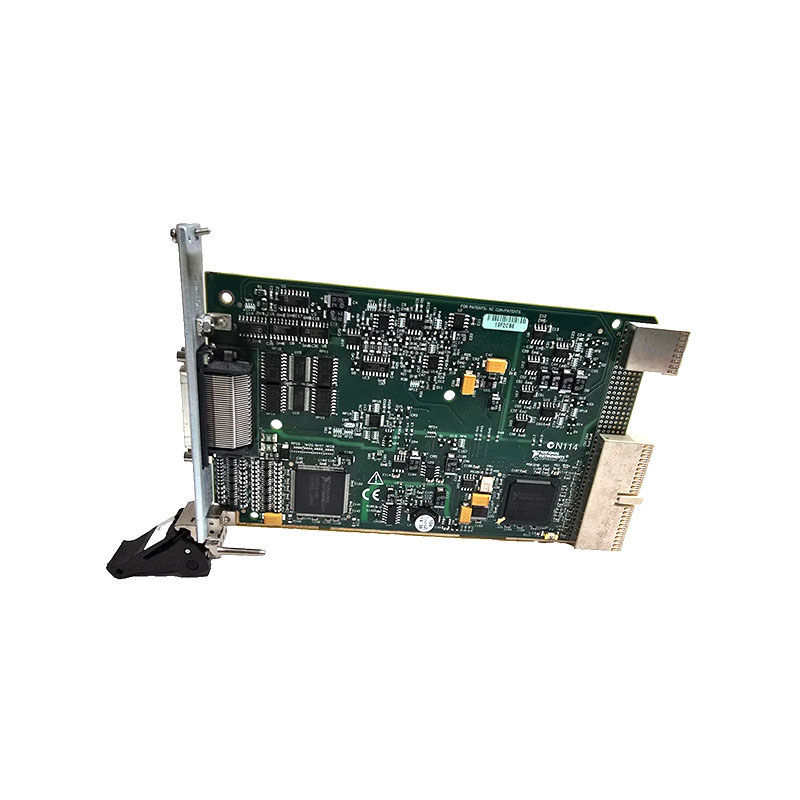

Detailed Specifications of NI PXI-6229 Multifunction DAQ Module
The NI PXI-6229 is a high-precision multifunction data acquisition (DAQ) module developed by National Instruments (NI) for the PXI bus architecture. It integrates advanced analog I/O, flexible digital I/O, and high-accuracy timing functions, making it an ideal choice for applications requiring both high channel density and measurement precision in industrial, aerospace, and laboratory environments.
1. Basic Information
- Module Series: Classified under NI’s general-purpose DAQ product line, specifically optimized for PXI bus systems.
- Part Numbers: 779422-01, 779070-01 (standard variants for different regional compliance).
- Physical Dimensions: Approximately 23.0 cm × 10.0 cm × 2.1 cm, compatible with standard 3U PXI chassis.
- Operating Temperature: -40°C to 85°C (extended temperature range; commercial temperature range: 0°C to 55°C as optional).
- Mechanical Protection: IP30 ingress protection rating, with a ruggedized reinforced aluminum housing to resist shock and vibration (100 g peak shock, 5 g rms vibration).
- Power Consumption: Typical 3.5 W (operating), 1.2 W (standby), ensuring low power consumption for extended system runtime.
2. Core Technical Specifications
2.1 Analog Input
- Channel Configuration: 32 single-ended channels or 16 differential channels, supporting simultaneous multi-signal acquisition.
- Resolution: 16-bit ADC, with ±0.5 LSB integral nonlinearity (INL) and ±0.1 LSB differential nonlinearity (DNL), ensuring high measurement accuracy (0.0025% of full scale).
- Sampling Rate: Up to 250 kS/s (single-channel, maximum throughput); maintains synchronized acquisition at 125 kS/s in multi-channel multiplexing mode.
- Input Range: Switchable across five ranges to adapt to different signal amplitudes: ±0.1V, ±0.2V, ±1V, ±5V, ±10V.
- Overvoltage Protection: ±30V (when powered on), ±15V (when powered off), effectively preventing damage from signal surges.
- Input Impedance: 10 GΩ (for voltage inputs), minimizing loading effects on measured signals.
2.2 Analog Output
- Channel Count: 4 channels, supporting independent waveform generation and static voltage output.
- Resolution: 12-bit DAC, with ±1 LSB INL and ±0.5 LSB DNL (0.01% of full scale), ensuring stable output precision.
- Update Rate: 833 kS/s per channel, enabling high-speed waveform generation (e.g., sine waves, square waves) for control applications.
- Output Range: ±10V (standard), with output current up to ±5 mA per channel, compatible with most external actuators and control devices.
- Output Impedance: 0.1 Ω (typical), ensuring low signal distortion during output.
2.3 Digital I/O
- I/O Lines: 48 programmable digital I/O lines, compatible with 5V TTL/CMOS logic levels.
- Functionality: Supports both input and output modes (configurable per line), with digital triggering, correlated I/O, and pattern generation capabilities. Ideal for controlling external devices (e.g., relays, solenoids) and monitoring status signals (e.g., limit switches, sensors).
- Input/Output Current: 24 mA sink/source per line, providing sufficient driving capability for industrial-grade components.
- Timing Precision: 20 MHz internal clock, enabling high-speed digital signal sampling and generation (up to 10 MHz digital I/O rate).
2.4 Counter/Timer
- Configuration: 2 independent 32-bit counters/timers, with 20 MHz reference clock for ultra-precise timing.
- Supported Tasks: Pulse width modulation (PWM), frequency measurement (up to 10 MHz), event counting, period measurement (minimum 100 ns), and time-interval measurement (resolution 50 ns).
- Trigger Integration: Can be synchronized with analog I/O and digital I/O modules via PXI backplane, realizing coordinated multi-function operations.
2.5 Synchronization & Triggering
- Synchronization Capability: Nanosecond-level clock synchronization through the PXI backplane (PXI_Trig lines and PXI_Star trigger), supporting phase-coherent acquisition across multiple PXI-6229 modules or other NI DAQ modules.
- Trigger Options: Multiple trigger sources available, including analog edge trigger (rising/falling edge, adjustable threshold), digital edge trigger (TTL-compatible), and software trigger.
- Signal Conditioning Compatibility: Works seamlessly with NI SCC (Signal Conditioning Cartridge) and SCXI modules (e.g., SCXI-1125, SCXI-1144) for signal amplification, filtering (2 Hz low-pass to 100 kHz high-pass), and isolation, achieving 110 dB common-mode rejection ratio (CMRR) for noisy industrial environments.
3. Software & Driver Support
- Drivers: NI-DAQmx 9.0 or later measurement services driver, providing intuitive APIs for device configuration, data acquisition, and result analysis, simplifying development workflows.
- Programming Compatibility:
- NI Software Ecosystem: LabVIEW (8.2.x+), LabWindows/CVI (8.1.x+), Measurement Studio (8.0.x+), LabVIEW SignalExpress (2.5.x+), enabling graphical and textual programming.
- Third-Party Languages: C/C++, C#, MATLAB, Python (via NI-DAQmx Python bindings), Visual Basic, supporting integration with existing software platforms.
- Calibration: Built-in NI-MCal (NI Modular Calibration) technology, which automatically compensates for nonlinearity, offset, and gain errors. Ensures ≤0.015% static measurement accuracy and ≤0.25% dynamic accuracy over the entire operating temperature range.
- Diagnostic Features: Real-time self-test functions (e.g., signal path verification, clock integrity check) and error logging, facilitating quick troubleshooting and system maintenance.
4. Typical Application Scenarios
The NI PXI-6229 is well-suited for high-channel-density and high-precision applications, including:
- Industrial Automation & Process Control: Multi-point temperature, pressure, and flow rate monitoring in chemical plants, automotive assembly lines, and semiconductor fabs; real-time feedback control for production processes.
- Aerospace & Defense: Avionics system testing (e.g., sensor signal acquisition for flight control systems), missile guidance system calibration, and satellite component performance verification (with extended temperature range support).
- Energy & Utilities: Power grid transient signal acquisition (e.g., voltage/current spikes), renewable energy (solar/wind) system monitoring, and oil/gas well logging (high-precision pressure and temperature data collection).
- Laboratory & Scientific Research: Material testing (stress-strain data acquisition), biomedical signal analysis (e.g., ECG, EEG with signal conditioning), and physics experiment data logging (low-noise measurement of weak signals).
- Automotive Electronics: In-vehicle sensor testing (e.g., ABS, airbag sensors), engine performance monitoring, and infotainment system functionality verification.
5. Selection & Compatibility Notes
- Ideal Application Scenarios: Applications requiring high channel density (32 single-ended analog inputs) and 16-bit precision, with sampling rate demands ≤250 kS/s. Particularly suitable for systems where multiple signals need to be measured simultaneously.
- Upgrade Path: For higher sampling rates (up to 1 MS/s), consider the NI PXI-6259 (24-bit resolution, 1 MS/s); for isolated analog I/O to prevent ground loops, opt for the NI PXI-6289 (isolated channels, 16-bit resolution).
- System Integration: Compatible with all NI 3U PXI chassis (e.g., PXI-1042, PXIe-1075) and third-party PXI-compliant chassis. Supports DMA (Direct Memory Access) for high-speed data transfer (up to 132 MB/s), avoiding CPU bottlenecks during large-volume data acquisition.
- Compliance Certifications: Meets CE (EN 61326-1), FCC Part 15 Class A, UL 61010-1, and IEC 61010-1 safety and electromagnetic compatibility (EMC) standards, ensuring compliance with global industrial regulations.
