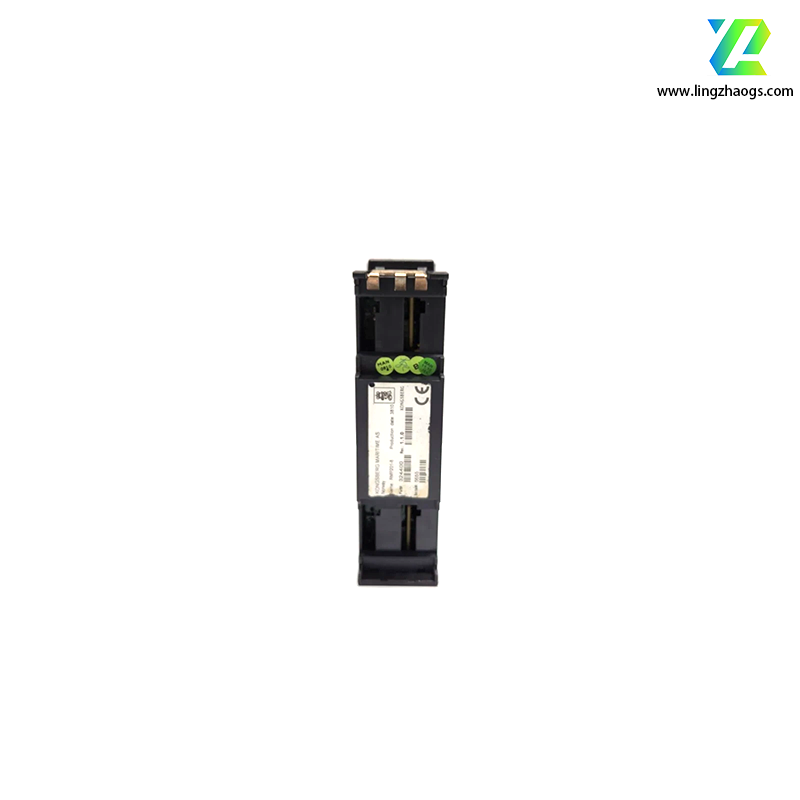

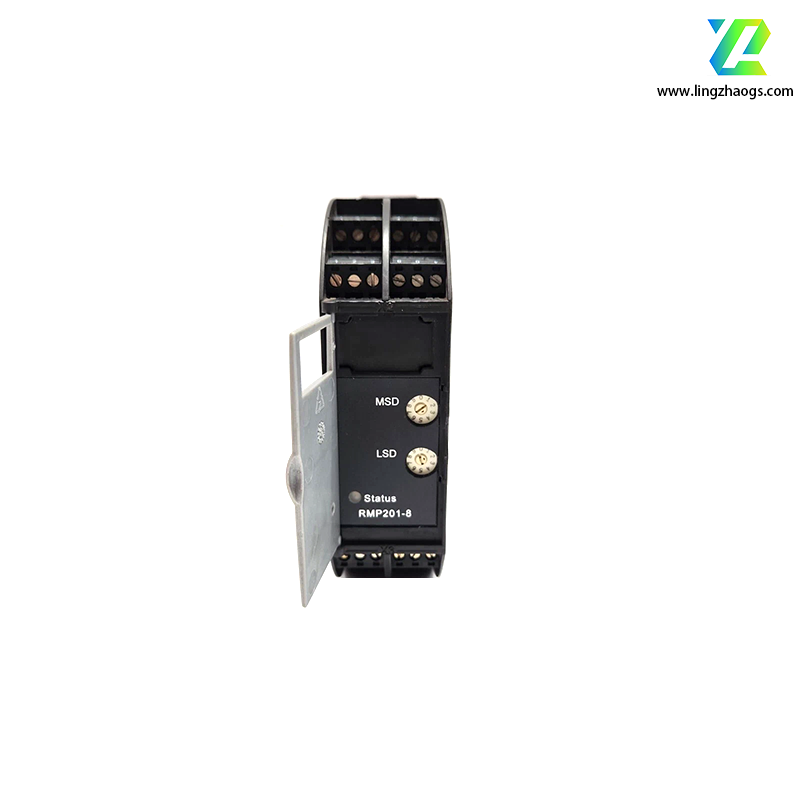

The KONGSBERG RMP201-8 is a high-performance, modular, and compact remote input/output (I/O) module designed for industrial automation, process control, especially marine and offshore applications. Here is the detailed information:
- Manufacturer: KONGSBERG
- Model Number: RMP201-8
- Product Type: Remote Multi-Purpose Input/Output Module
- Power Supply: Typically 24 VDC, with an input voltage range of 10 - 30 VDC. Static power consumption is ≤ 0.3W.
- I/O Channels:
- Digital I/O: It may have 8 digital input channels and 8 digital output channels. The output type can be configurable as relay or transistor output depending on the configuration. The rated output voltage is typically 24 VDC, and the maximum output current per channel is up to 1 A.
- Analog I/O: Some sources mention the possibility of having 2 analog input/output channels, supporting signal types such as 4 - 20 mA, 0 - 10 V.
- Communication Interfaces: Supports 多种通信协议和接口，such as Modbus (Serial and TCP), CAN bus, Ethernet, PROFIBUS, RS - 232/RS - 485. The communication protocol can also be Modbus RTU with a baud rate of 1200/2400 or 4800/9600/19200.
- Physical Characteristics:
- Dimensions: Approximately 124 mm x 73 mm x 34 mm (Length x Width x Thickness).
- Weight: About 800 g - 1 kg.
- Mounting: Usually DIN - rail mounted for easy installation in control cabinets.
- Environmental Conditions:
- Operating Temperature: - 20°C to + 60°C (standard industrial operating temperature range).
- Humidity: 5% - 90% RH, non - condensing.
- Modular Design: Allows for easy customization and maintenance. It can be flexibly configured according to actual application requirements.
- Reliability: Built with high - quality materials to withstand harsh industrial environments. It has reverse polarity protection and other protection functions to ensure stable operation.
- Flexible Connectivity: With a variety of communication interfaces and support for multiple communication protocols, it can be easily integrated into existing automation systems.
- Fast Response: Has a fast switching time, which is ideal for rapid system control applications.
- Marine Automation: Used in ship - board automation systems, such as power positioning systems to control the position and heading of ships, as well as for controlling pumps, valves, and other machinery.
- Industrial Process Control: Suitable for various industrial processes, including manufacturing, oil and gas, and chemical industries, for data acquisition and control of production lines.
- Alarm and Monitoring Systems: Can monitor system parameters and transmit data to the central control system, triggering alarms when abnormal conditions occur.
Please note that the above information is compiled from various sources, and for the most accurate and detailed technical specifications, it is recommended to refer to the official KONGSBERG datasheet.
