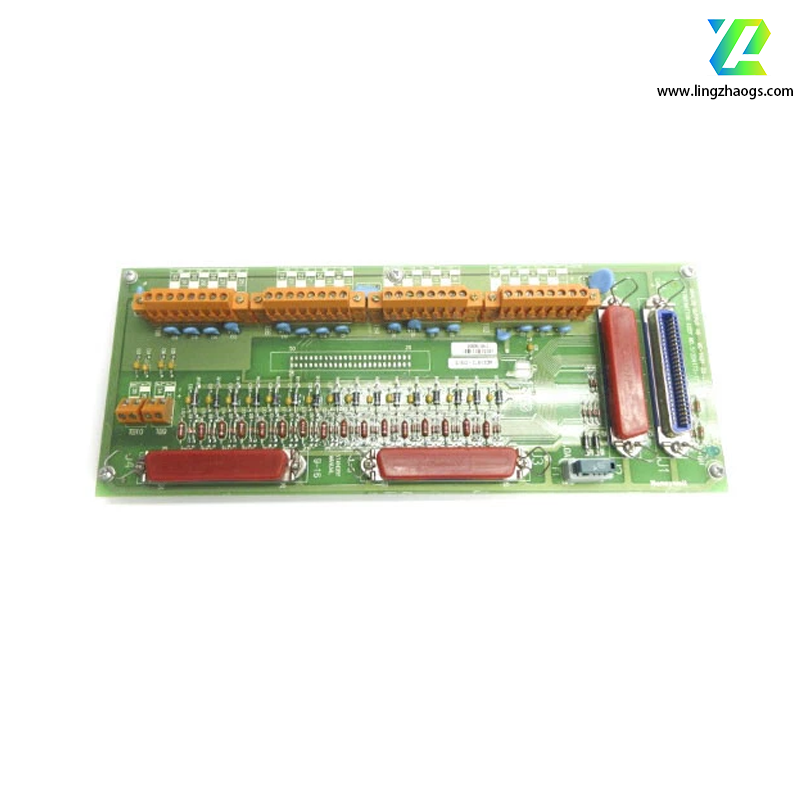

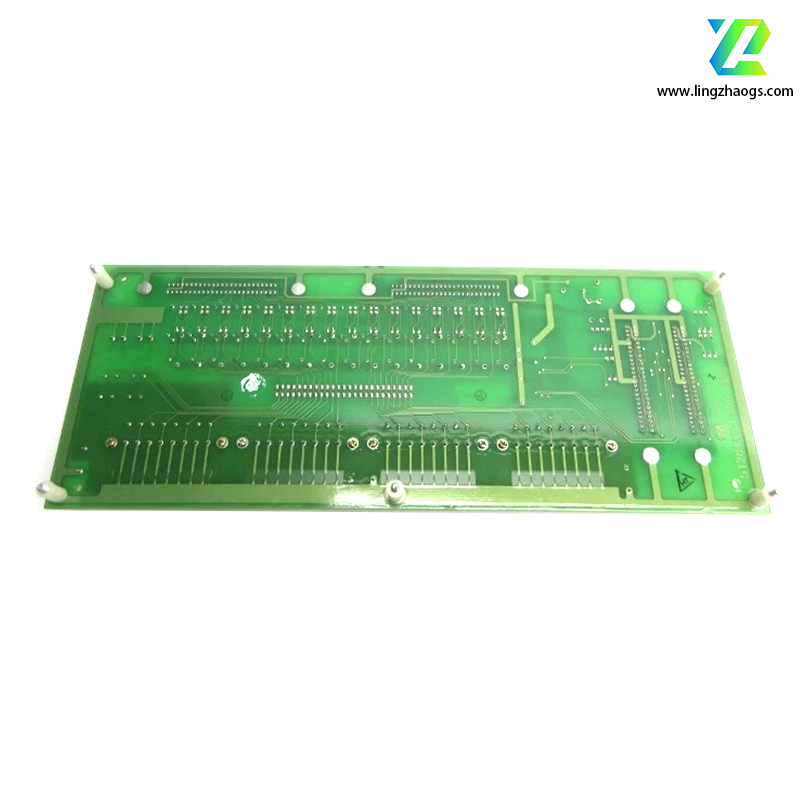

The Honeywell 51204172-175 is a 16-channel analog output module designed for industrial automation and distributed control systems (DCS), specifically as part of Honeywell’s Experion PKS and TDC 3000 platforms. It converts digital signals from controllers into precise analog outputs (4–20 mA or 0–10 V DC) to regulate devices like valves, actuators, and motor drives in process control applications. Below is a detailed breakdown based on technical documentation and specifications from verified sources:
- Brand: Honeywell
- Model: 51204172-175
- Product Type: FTA (Field Termination Assembly) Analog Output Module
- Series: MC-TAOY22
- Application: Industrial process control, oil and gas, power generation, chemical processing, and manufacturing.
- Function: Provides high-precision analog control signals for closed-loop systems, ensuring reliable operation in harsh environments.
High Precision:
- 12-bit resolution ensures accurate control of analog devices, minimizing process variability.
Flexible Configuration:
- Selectable current (4–20 mA) or voltage (0–10 V DC) outputs per channel, allowing compatibility with diverse field devices.
Reliable Communication:
- Modbus RTU interface enables seamless integration with PLCs, DCS, or SCADA systems for remote monitoring and configuration.
Robust Design:
- Industrial-grade construction with conformal coating protects against dust, moisture, and electromagnetic interference (EMI).
Redundancy Support:
- Optional one-on-one redundancy configuration for critical applications, ensuring uninterrupted operation in case of module failure.
Ease of Maintenance:
- Field-replaceable design with quick-release terminals simplifies troubleshooting and reduces downtime.
- Process Control: Regulating flow, pressure, and temperature in oil refineries, chemical plants, and water treatment facilities.
- Manufacturing: Controlling robotic arms, conveyor systems, and motor drives in automotive or food processing industries.
- Power Generation: Managing turbine speed, boiler feedwater, and generator excitation systems.
- HVAC Systems: Adjusting dampers, pumps, and chillers in large-scale building automation.
- Wiring: Connects to field devices via screw terminals or removable terminal blocks. Each channel supports 24 AWG to 14 AWG wires.
- Mounting: Rack-mountable (DIN rail or panel) in standard 19-inch enclosures.
- Configuration:
- Use Honeywell’s Experion PKS software or third-party tools (e.g., Modbus masters) to set output ranges, enable diagnostics, and configure communication parameters.
- Redundancy Setup: Pair with a redundant controller for failover protection, ensuring continuous operation during maintenance or component failure.
- User Manuals: Available on Honeywell’s official support portal, detailing wiring diagrams, configuration steps, and troubleshooting (e.g., Honeywell MC-TAOY22 Module Installation Guide).
- Datasheets: Provide technical specifications, pinouts, and compliance certifications (e.g., Honeywell 51204172-175 Datasheet).
- Software Tools: Honeywell’s Field Device Manager (FDM) or third-party Modbus utilities for parameter tuning and diagnostics.
- Model Variants:
- The 51204172-175 is part of the MC-TAOY22 series, which includes variants with different channel counts (e.g., 8-channel modules) and communication protocols.
- Power Calculation:
- Ensure the total load current (sum of all channels) does not exceed the module’s power supply capacity (24 V DC at rated current).
- Third-Party Compatibility:
- While Modbus RTU is standard, verify compatibility with non-Honeywell systems (e.g., Allen-Bradley, Siemens) during integration.
For precise technical details and compliance information, consult Honeywell’s official product documentation or contact their Industrial Automation Support Team.
