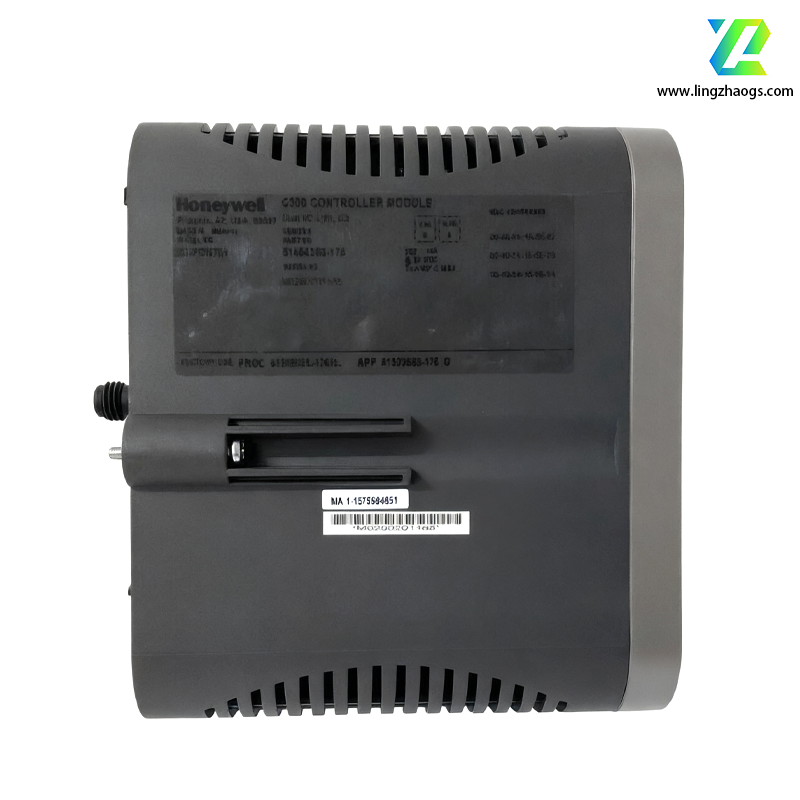

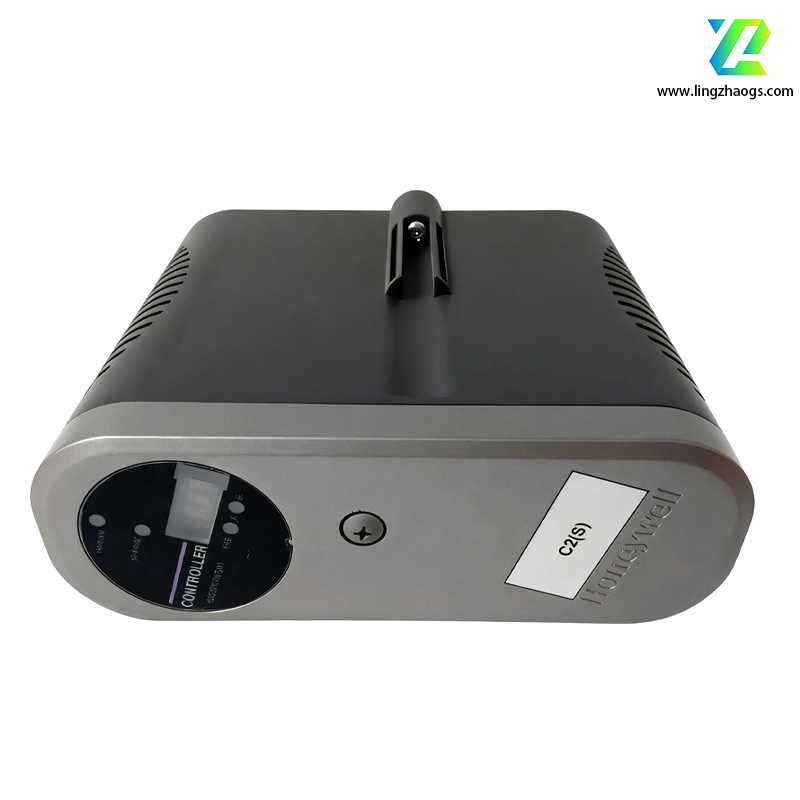

General Information

• Brand: Honeywell
• Model: 8C - PCNT01
• Type: C300 controller module
• Manufacturer: Honeywell
• Country of Origin: USA
• SKU: 8C - PCNT01

Technical Specifications

• Power Supply
  • Voltage: 24V DC (±20%)
  • Power Consumption: 25W (maximum)
• Processor and Memory
  • Processor Speed: 1.2 GHz
  • RAM: 2 GB
  • Storage: 8 GB flash memory
• Communication Ports
  • 2 x Ethernet ports
  • 1 x RS - 232 serial port
  • 1 x RS - 485 serial port
• I/O Channels
  • Counting Channels: 2
• Input Characteristics
  • Input Type: High - impedance, differential voltage, optically isolated (1000 VDC)
  • Frequency Range: 0 – 100 kHz (single channel), 0 – 10 kHz (dual pulse channel)
  • Frequency Accuracy (0.5 Hz – 100 kHz): ±0.001% of reading
• Operating Conditions
  • Operating Temperature: - 20 °C to 60 °C (- 4 °F to 140 °F)
  • Storage Temperature: - 40 °C to 85 °C (- 40 °F to 185 °F)
  • Humidity: 5% to 95% RH, non - condensing
• Dimensions and Weight
  • Height: 130 mm (5.12 inches)
  • Width: 200 mm (7.87 inches)
  • Depth: 60 mm (2.36 inches)
  • Weight: 0.9 kg (2 lbs)
• Certifications
  • UL certified, CE marked, RoHS compliant

Features

• High - precision Control
  • It has 2 counting channels, each with a 32 - bit counter, and supports multiple counting modes such as rising - edge counting, falling - edge counting, and pulse - width counting. The maximum counting frequency can reach 10 MHz, which can accurately count pulse signals.
• Reliable Design
  • Through redundant design and self - diagnosis function, it ensures long - term stable operation in industrial environments. It supports the FTE (Fault - Tolerant Ethernet) architecture and is compatible with the safety logic control of the Honeywell C300 system.
• Good Compatibility
  • Built - in advanced control algorithms, it supports seamless integration with DCS and SCADA systems, and can achieve cross - device communication through protocols such as Modbus and Profinet.
• Compact Structure
  • The compact design without the need for additional interface/communication modules simplifies the installation and maintenance process.
