The HIMA F8627X is a key module applied in industrial automation and safety systems, featuring high reliability, real-time performance, safety, and multi-protocol compatibility. Here is its detailed information in English:

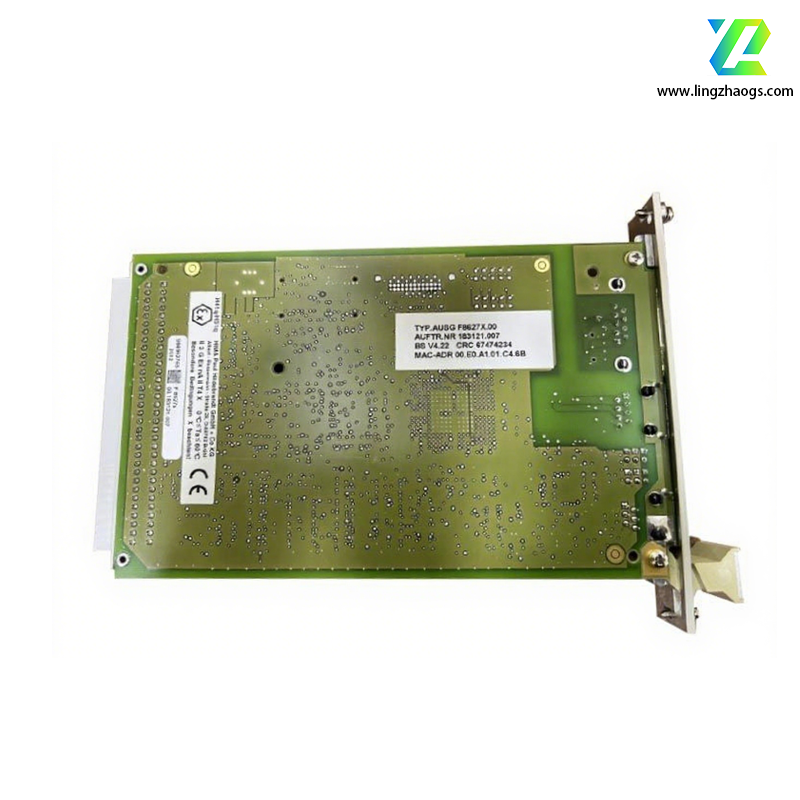

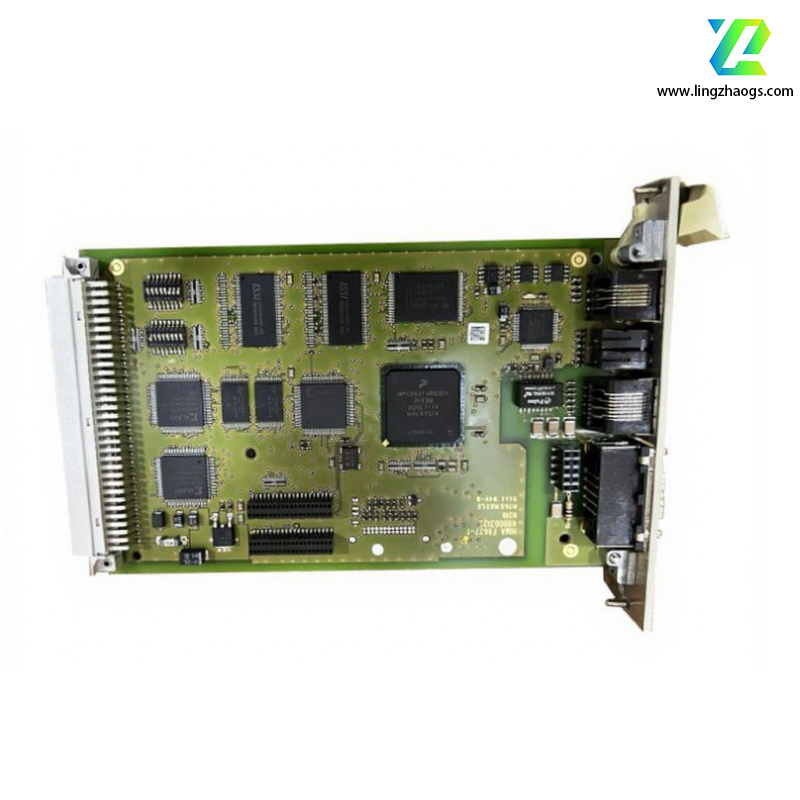

The HIMA F8627X is a communication module designed for industrial automation and safety systems. It is mainly used to build highly reliable industrial communication networks, enabling data exchange between different devices such as controllers, sensors, actuators, and monitoring systems, and realizing monitoring, control, and safety functions.
- Power Supply: The rated supply voltage is 24V DC, and the typical power consumption is about 6W.

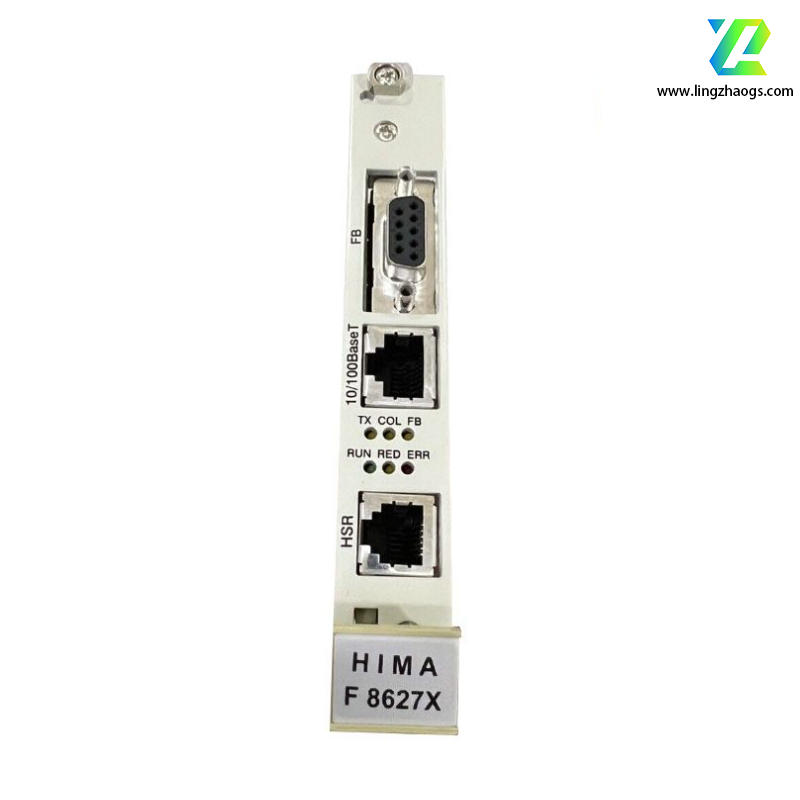

- Communication Interface: It supports Ethernet with speeds of 10/100/1000 Mbps (some models support 100BASE - TX Fast Ethernet), and also has serial communication interfaces such as RS - 232 and RS - 485, as well as fieldbus interfaces like CAN bus (CAN 2.0B protocol), Profibus, and Modbus.
- Safety Level: It reaches the SIL 3 level specified in IEC 61508 and PL e Cat.4 specified in ISO 13849.
- Environmental Adaptability: The operating temperature range is -20 °C to +60 °C, the storage temperature range is -40 °C to +85 °C, and the humidity range is 5% - 95% (non - condensing). The enclosure protection level is IP65.
- Physical Specifications: It weighs about 0.5 kg and is installed via DIN rail.
- High - speed Data Transmission: It supports fast Ethernet communication, which can meet the strict real - time requirements of industrial automation with a delay as low as milliseconds. For example, it can transmit ten thousand data points in only 0.2 seconds.
- Multi - protocol Compatibility: It supports mainstream industrial protocols such as Modbus, Profibus, Profinet, Modbus TCP, and EtherNet/IP, enabling seamless connection with devices from different manufacturers. This is like a protocol translator that can break the "Tower of Babel" dilemma in factories.
- Safe Communication: It integrates functions such as data encryption, identity authentication, and access control. It also adopts the SafeEthernet technology with data encryption and CRC check to resist hacker attacks.
- Redundant Design: Some models support redundant configurations, such as dual RJ45 ports for redundant communication, which improves communication availability and robustness.
- Hot - swappable and Diagnostic Function: It supports hot - swapping, allowing the replacement of faulty modules during system operation. Combined with its continuous online diagnostic function, it can minimize maintenance time and avoid costly process interruptions.
- Industrial Safety Systems: It is widely used in process safety systems, emergency shutdown systems, fire protection systems, machinery safety systems, etc. in the chemical, oil and gas, and manufacturing industries. For example, in the oil and gas industry, it is the pillar of the emergency shutdown (ESD) system on offshore platforms and refineries, which can quickly and reliably shut down the process in case of high pressure, high temperature or other dangerous situations to prevent explosions and protect personnel safety.
- Power Industry: In power plants, it is the core of the burner management system (BMS), which ensures the safe ignition and shutdown of burners in boilers and prevents dangerous flashbacks and explosions.
