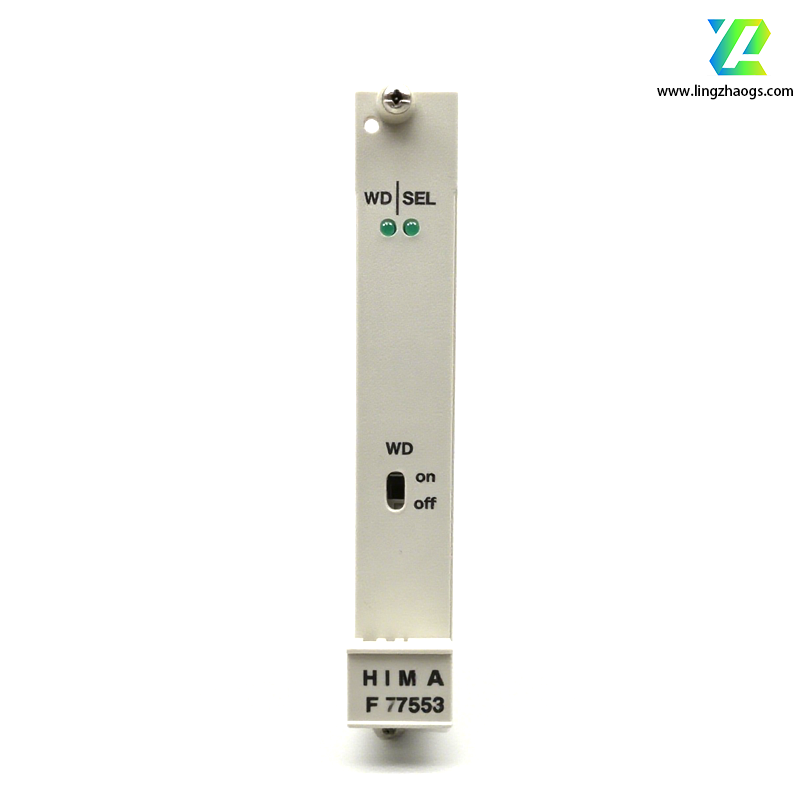

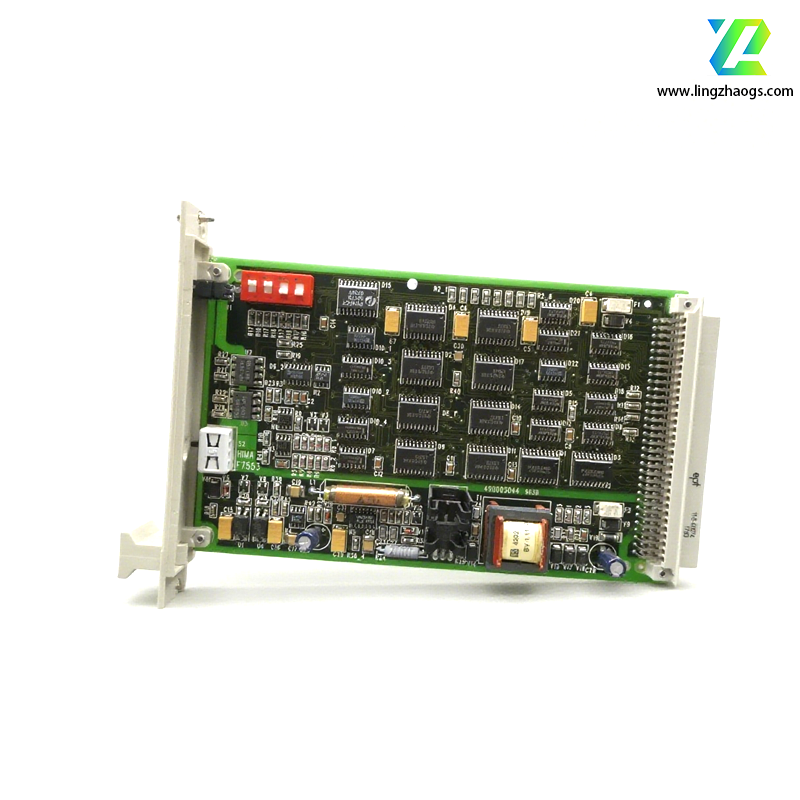

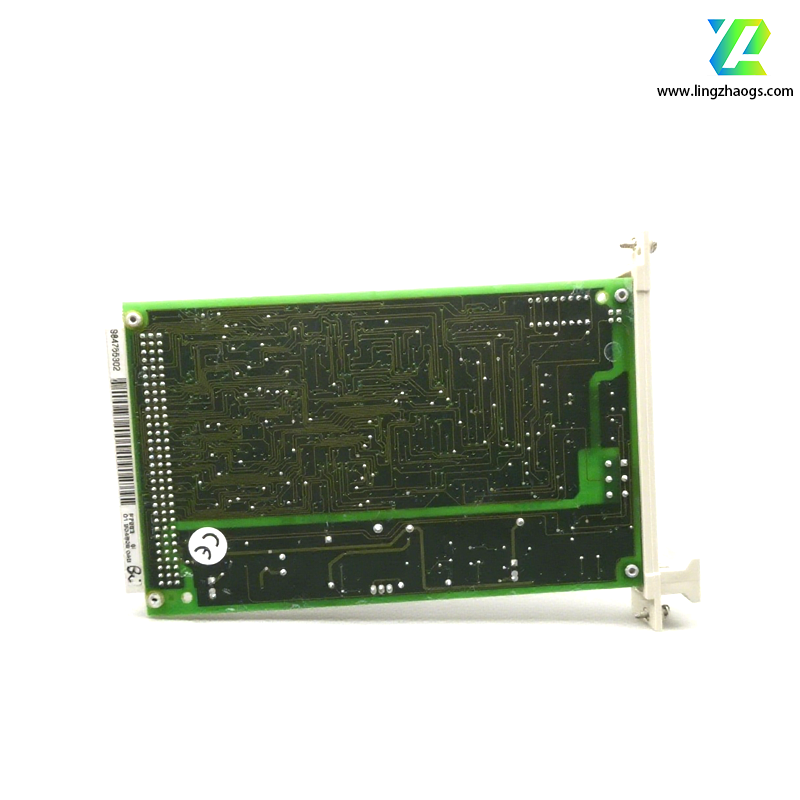

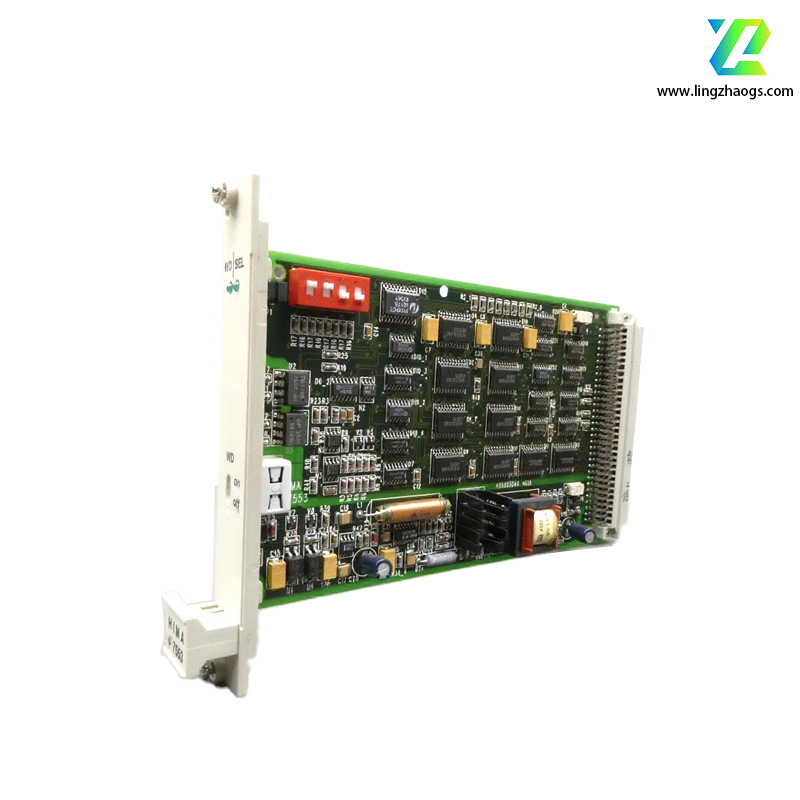

The HIMA F7553 is a coupling module applied in industrial automation, which can connect programmable logic controllers (PLCs) to HIMA safety systems and ensure safe and reliable communication between safe and non-safe systems. The following is its detailed information in English:
The HIMA F7553 is designed to enable communication and signal conversion between PLCs and HIMA safety systems. It can convert non-safety signals from PLCs into safety signals and transmit them to the HIMA safety system, playing a vital role in ensuring the safe operation of industrial processes.
- Interface: It is equipped with 1 Profibus DP interface, 32 digital inputs/outputs, 16 analog inputs, and 8 analog outputs.
- Communication Speed: The maximum communication speed of Profibus DP can reach 12 Mbps.
- Power Supply: The input voltage is typically 24 VDC, and the current consumption depends on the system load and configuration.
- Operating Temperature: The operating temperature range is -20 °C to 60 °C.
- Storage Temperature: The storage temperature range is -40 °C to 85 °C.
- Relative Humidity: It is 5% - 95% (non-condensing).
- Dimensions: Approximately 230 mm x 160 mm x 45 mm.
- Weight: About 2 kg.
- High Safety Integrity: It complies with the SIL 3 safety level requirements specified in IEC 61508 and IEC 61511 standards, which is suitable for high-risk industrial processes such as chemical plants, oil & gas facilities, and power generation.
- Redundant Design: It supports redundant configurations to improve system availability and fault tolerance, reducing the possibility of system failures.
- Hot-swappable Design: The module can be replaced online without shutting down the safety system, which is crucial for continuous processes like chemical plants or power stations, facilitating maintenance and reducing downtime.
- Powerful Signal Processing Capacity: It is equipped with an ARM Cortex-A8 processor with a main frequency of 1 GHz, which can process a large number of digital and analog signals in real-time and has the ability to handle complex logic.
- Rich Communication Interfaces: It supports a variety of communication protocols, including Modbus TCP, Ethernet/IP, Profibus DP, Profinet IO, and DeviceNet, which can be seamlessly integrated with different industrial fieldbus systems.
- Industrial Process Control: Such as chemical, petroleum, and natural gas industries, used to monitor and control key equipment and processes to ensure production safety.
- Railway Signal Control: Applied to railway signal systems to ensure the safe operation of trains.
- Power System Protection: Used in power generation, transmission, and distribution systems to monitor and protect electrical equipment.
- Automobile Manufacturing: In the production line of automobile manufacturing, it is used to monitor the safety status of equipment and ensure the normal operation of the production process.
- Food Processing: In the food processing industry, it is used to ensure the safety and stability of the production process, such as monitoring the operation status of food processing equipment and the safety of food storage environments.
