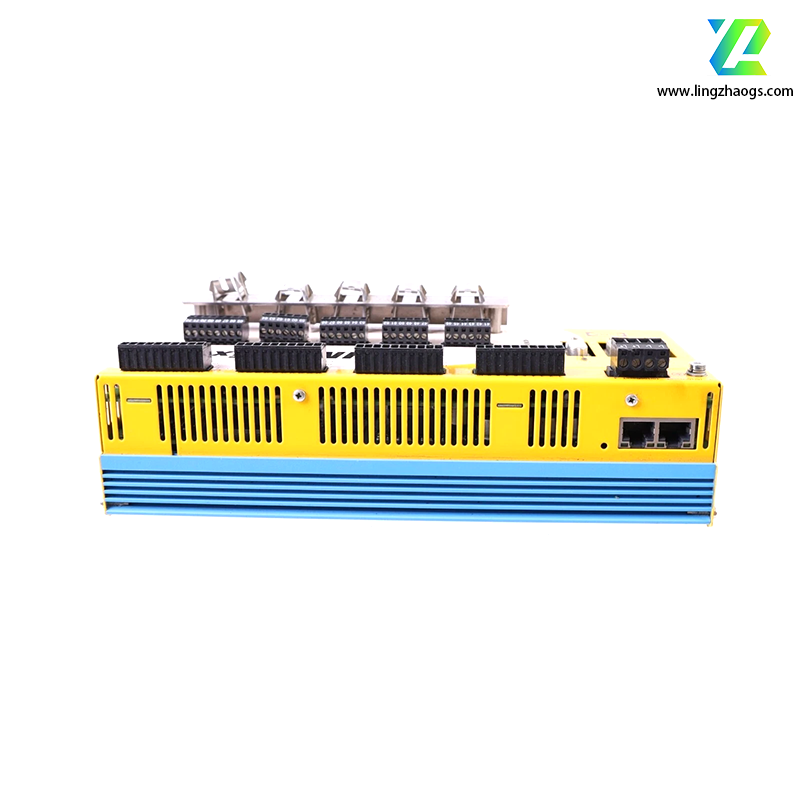

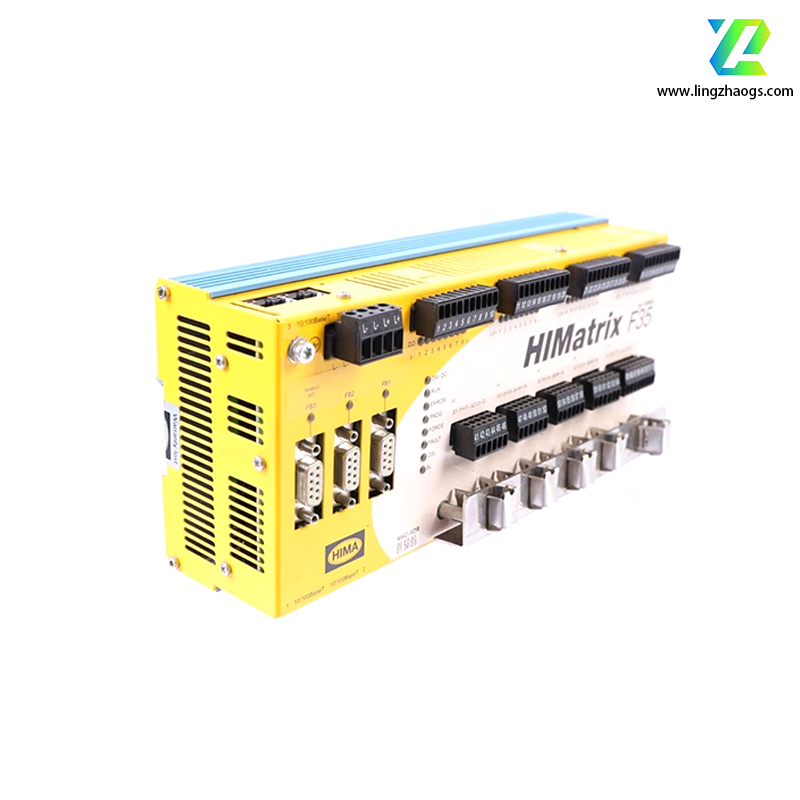

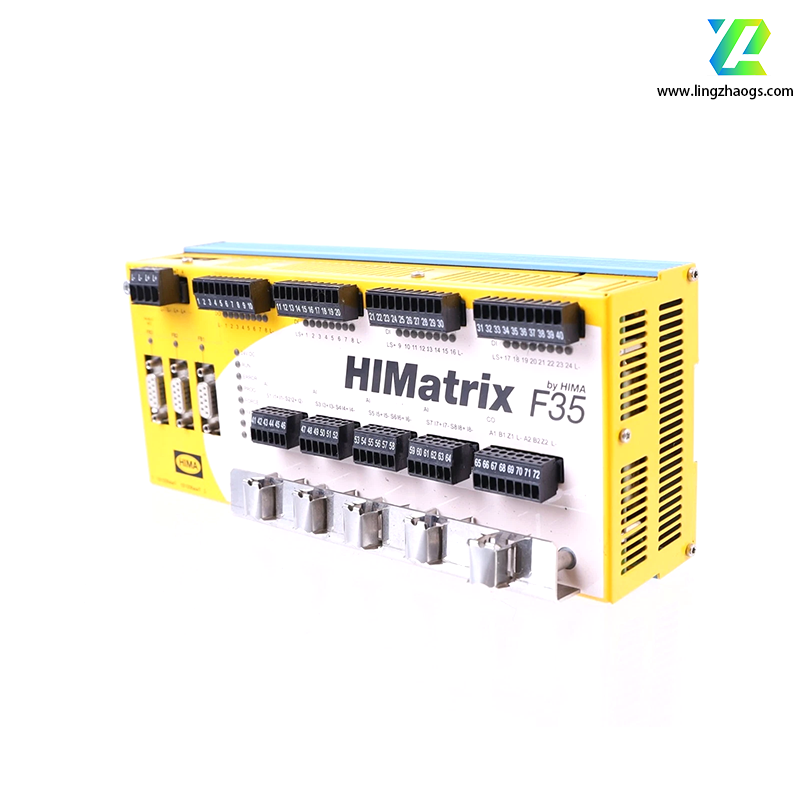

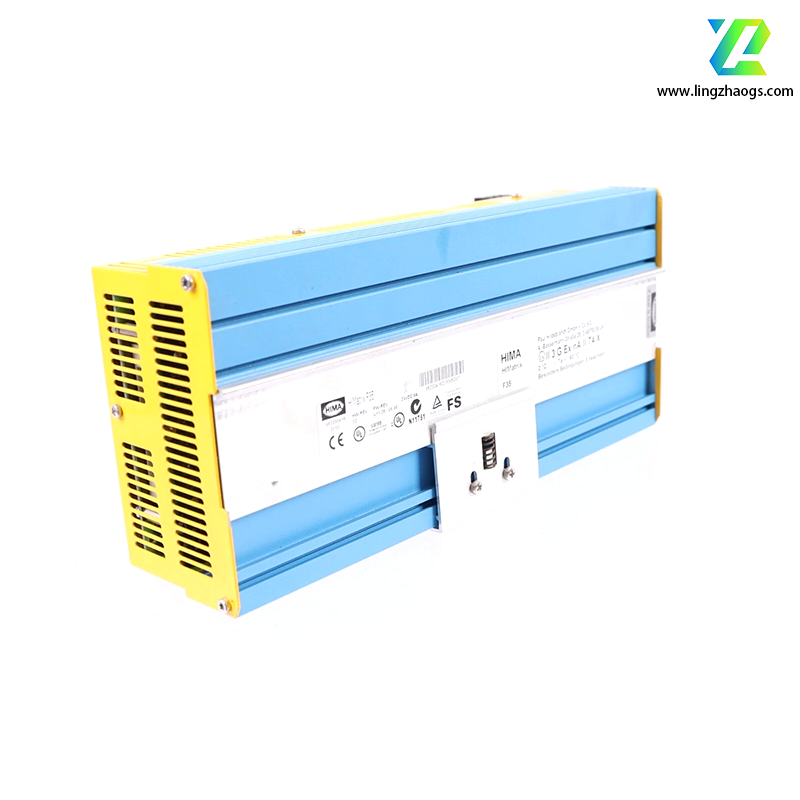

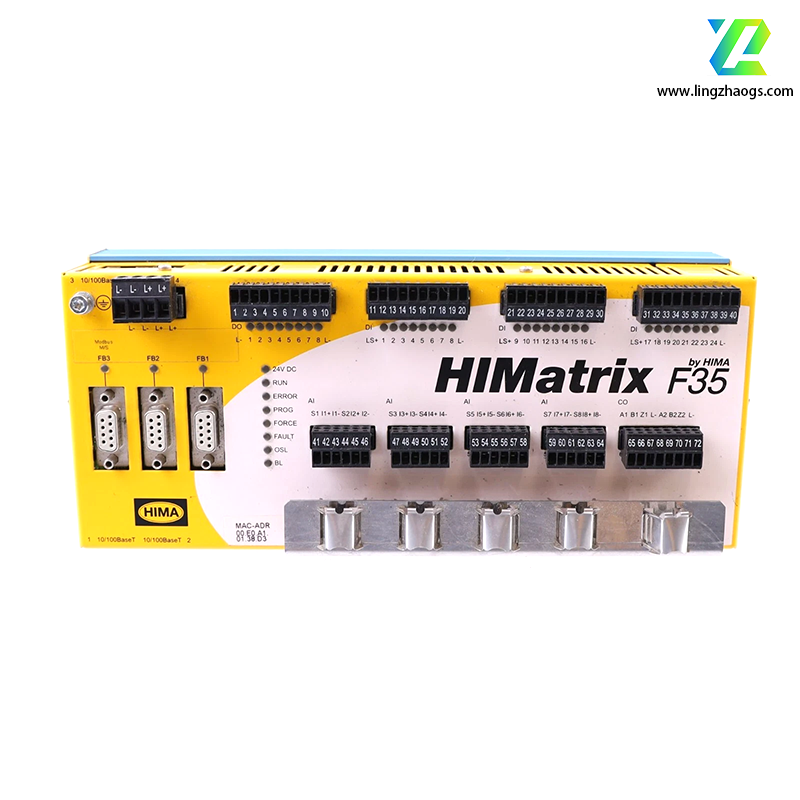

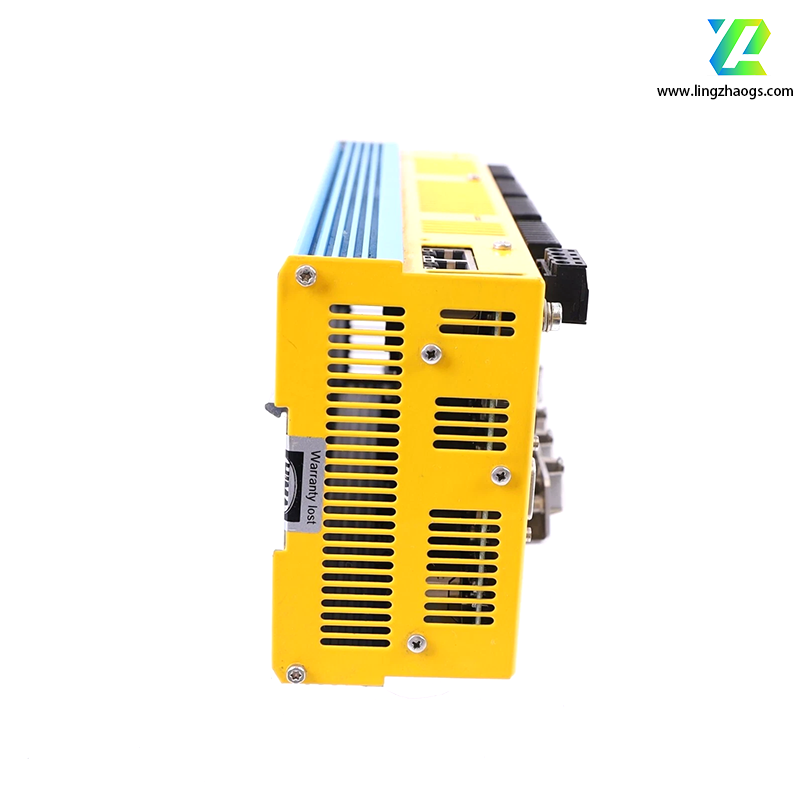

The HIMA F35 982200416 is a compact, high-reliability safety-related controller designed for critical industrial applications requiring SIL 3 certification. Part of HIMA’s HIMatrix series, it integrates safety and automation functions to ensure precise control in hazardous environments. Below is a detailed breakdown of its specifications and features:
- Model: F35 982200416
- Type: Safety-Related Controller
- Certifications:
- SIL 3 (IEC 61508, IEC 61511, IEC 62061)
- PL e (EN ISO 13849-1) and Cat. 4 (EN 954-1)
- ATEX-certified for Zone 2 installations (hazardous gas/dust environments)
- Enclosure: Metal housing with IP20 protection (front panel)
- Dimensions:
- Width: 257 mm (with housing screws)
- Height: 114 mm (with fixing bolt)
- Depth: 66 mm (with earthing screw)
- Weight: ~1.2 kg (shipping weight)
- I/O Channels:
- 24 Digital Inputs: Accept 15–30 VDC signals with configurable thresholds (default: low <7 V, high >13 V).
- 8 Digital Outputs:
- Outputs 1–3 and 5–7: 0.5 A max. at full ambient temperature.
- Outputs 4 and 8: 1 A max. (or 2 A at ≤50°C).
- 8 Analog Inputs: 0–30 VDC range, converted to integer values (0–3000) for safety-related processing.
- 2 Counters: 24-bit resolution for speed/tachometer measurements (configurable for 5 V or 24 V inputs).
- Power Supply:
- 24 VDC (-15% to +20%) with reverse polarity protection.
- Idle current: ~0.5 A; max. load: 9 A.
- Communication:
- 4x Ethernet (RJ45): 10/100 Mbps with integrated switch for redundant networking.
- RS485 (Modbus RTU): Supports master/slave modes for fieldbus communication.
- Safe Ethernet: Integrates with HIMA’s HIMatrix remote I/O modules via PROFINET or EtherNet/IP.
- Processing:
- 32-bit RISC processor with real-time OS for deterministic control (cycle time ≥6 ms).
- 5 MB program memory (excluding 64 KB CRC storage).
- Safety Functions:
- Fail-safe design with de-energize-to-trip principle for critical inputs/outputs.
- Built-in diagnostics for channel-level faults (LED indicators for each I/O).
- Hot swapping of modules without system shutdown.
- Environmental Resilience:
- Operating temperature: -20°C to +60°C (subsea variant available for ISO 13628-6 compliance).
- Storage temperature: -40°C to +85°C.
- Vibration resistance: 0.05 g RMS (random).
- Tools:
- SILworX: Graphical engineering environment for safety logic programming (FBD, LD, ST).
- ELOP II Factory: Text-based tool for advanced algorithms and motion control.
- Functionality:
- Support for IEC 61131-3 programming standards and safety function blocks (IEC 61508).
- Remote monitoring via OPC UA or web interface for diagnostics and parameter tuning.
- Process Industries: Chemical, oil & gas, and petrochemical plants for emergency shutdown systems (ESD) and burner management.
- Machinery Safety: Robotics, presses, and conveyor systems requiring PL e compliance.
- Subsea Systems: Offshore platforms and underwater installations (ISO 13628-6 certified variant).
- Power Generation: Steam turbines, generators, and grid-connected systems with strict safety requirements.
- Manuals:
- System Manual, Safety Manual, and Engineering Manual available for download.
- Warranty: 12 months (factory warranty).
- Technical Support: HIMA’s global network provides firmware updates, configuration assistance, and lifecycle management.
- Safety: IEC 61508, IEC 61511, EN ISO 13849-1, and EN 954-1.
- EMC: Compliant with EN 61000-6-2 (industrial environment) and EN 61000-6-4 (immunity).
- Electrical: CE, UL, and TÜV certifications.
For detailed technical drawings, wiring diagrams, or compatibility with HIMA’s HIMatrix I/O modules, refer to the official HIMA documentation or contact their sales team.
