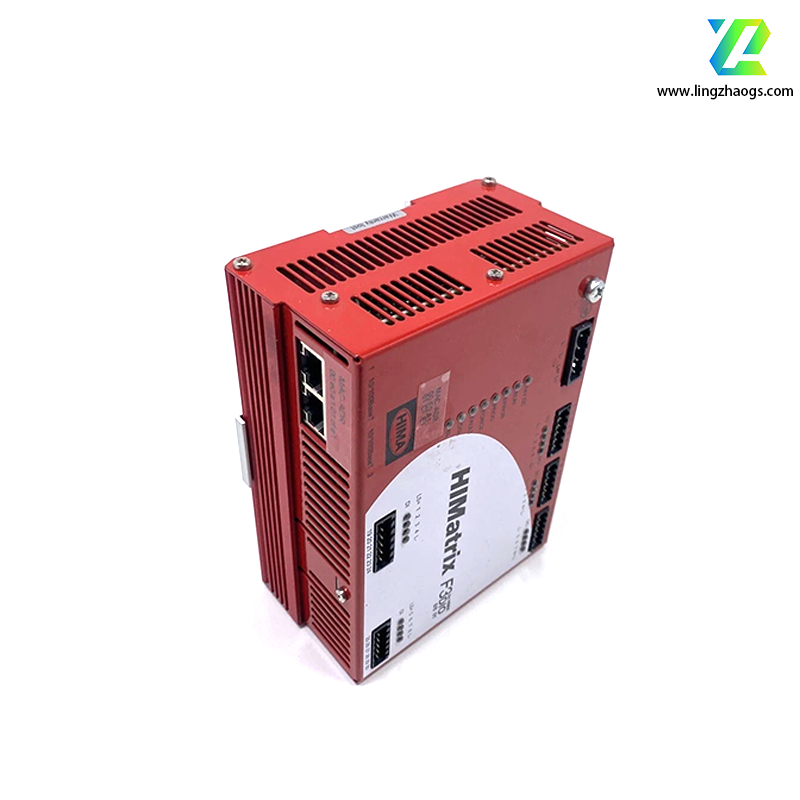

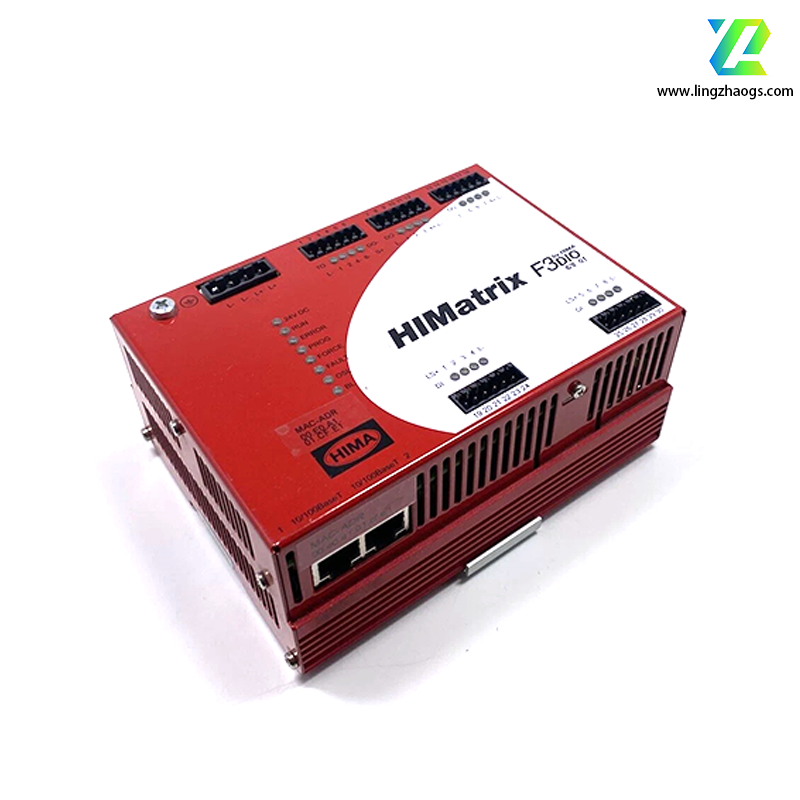

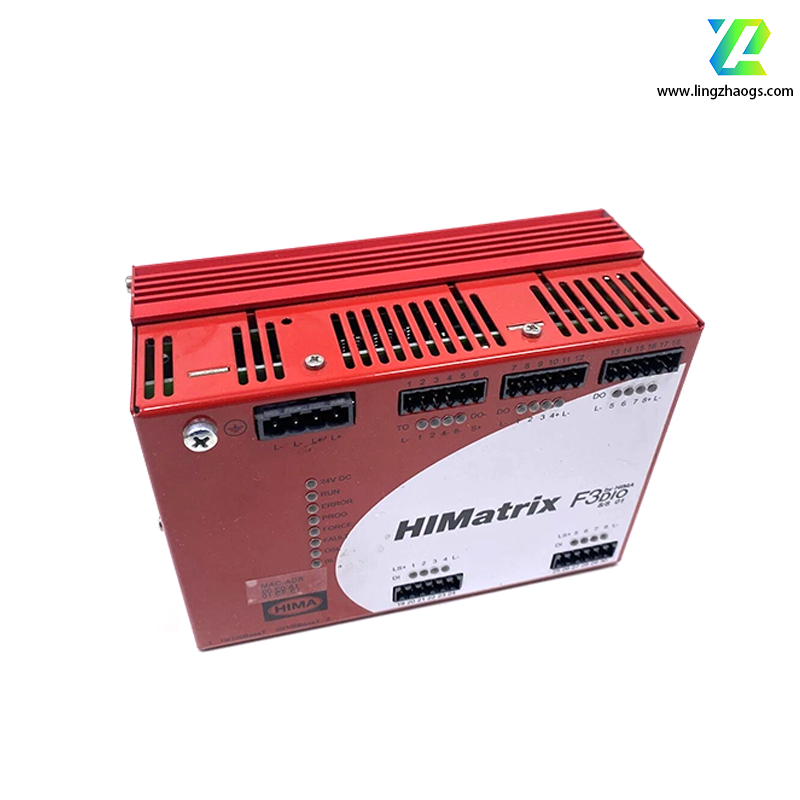

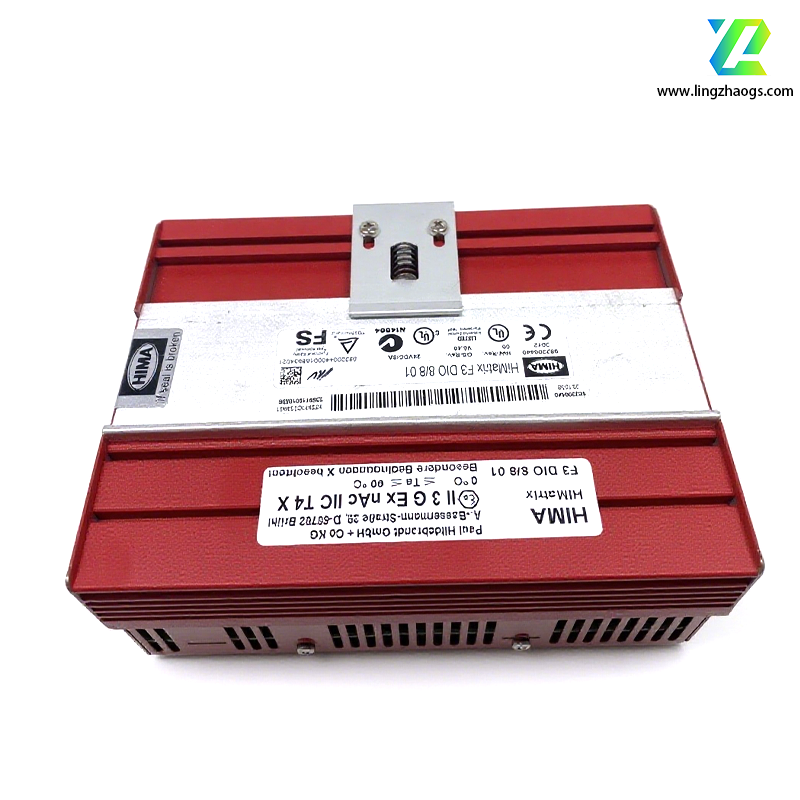

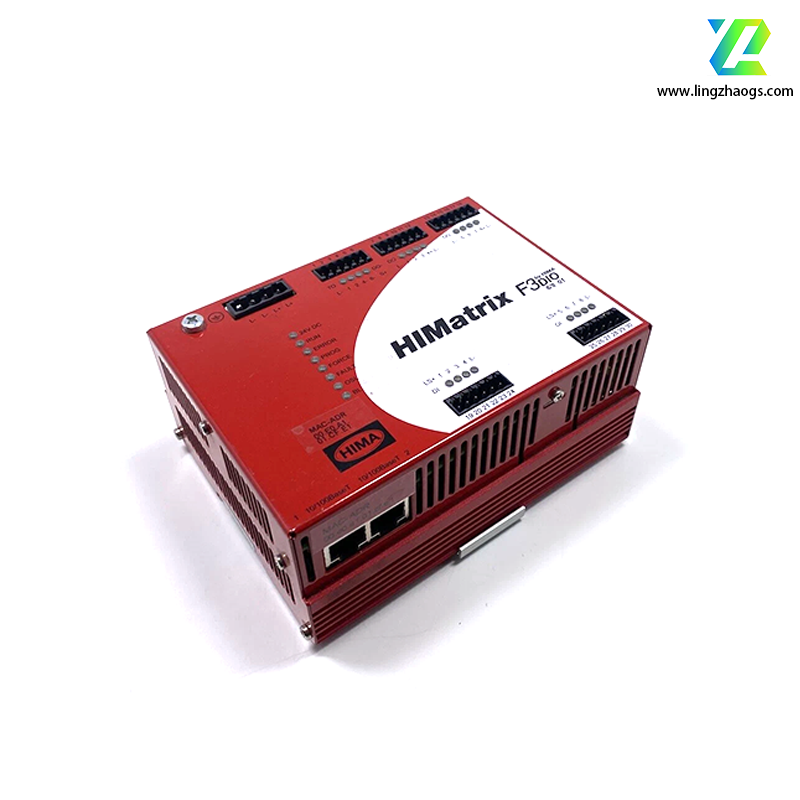

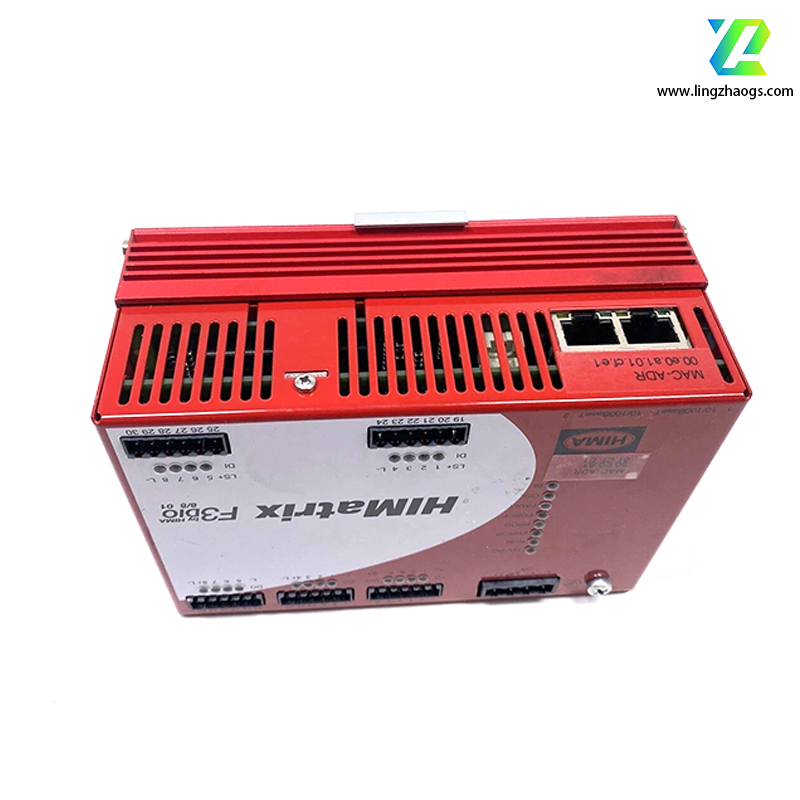

Product Name： HIMA F3 DIO 8/8 01 Digital Input/Output Module
Product Categories： HIMA
Contact： 13394046250
Company Name： Xiamen Lingzhao
Company Address： Phase III of Software Park, Jimei District, Xiamen City, Fujian Province
Add Time： 2025-10-21

Details

The HIMA F3 DIO 8/8 01 is a digital input/output module applied to industrial automation and safety - related control systems. Here is its detailed information in English:

General Introduction

The HIMA F3 DIO 8/8 01 is designed to work with HIMA safety - related controllers. It can realize the connection between the controller and field devices, receive input signals from field devices and transmit them to the controller, and also send the output signals of the controller to field devices to achieve control functions. It is suitable for various industrial occasions that require high - reliability control and safety guarantee, such as manufacturing, process control, and machine safety systems.

Technical Parameters

Parameter	Specification
Module Type	Digital Input/Output (DIO) module
I/O Channels	8 digital input channels and 8 digital output channels
Input Signal Type	Usually dry contact (NO/NC) or voltage signals, high - level voltage is 15 - 30 VDC (current input ≥ 2 mA at 15 V), low - level voltage is max. 5 VDC (current input max. 1.5 mA, 1 mA at 5 V), and the switching point supply is typically 7.5 V
Output Signal Type	The module has 8 digital outputs DO+ (ground L - ) and 2 digital outputs DO - (ground S + ). Among them, the DO+ outputs 1 - 3 and 5 - 7 can be loaded with 0.5 A each at the maximum ambient temperature, and the DO+ outputs 4 and 8 can be loaded with 1 A or 2 A (when the ambient temperature is up to 40 °C); the DO - outputs 4 - and 8 - can be loaded with 1 A each at the maximum ambient temperature or 2 A (when the ambient temperature is up to 40 °C)
Safety Integrity Level (SIL)	Certified for SIL 3 per IEC 61508, IEC 61511 and IEC 62061, Cat. 4 (EN 954 - 1) and PL e (EN ISO 13849 - 1)
Power Supply	24 VDC, - 15% - + 20%
Power Consumption	Idle: approximately 0.4 A at 24 V (with maximum load, the maximum current input is 8 A)
Operating Temperature	0 - + 60 °C
Storage Temperature	- 40 - + 85 °C
Protection Level	IP20
Dimensions	Width: 152 mm (with housing screws), height: 114 mm (with fixing bolt), depth: 66 mm (with earthing screw)
Weight	Approximately 1 kg
Certifications	CE, UL, etc.

Key Features

High Safety Performance: Certified to SIL 3, it has extremely high safety and reliability, and can be used in safety - critical applications. It can ensure the normal operation of the system and prevent dangerous situations when a fault occurs.
Flexible I/O Configuration: With 8 input channels and 8 output channels, it can meet the connection requirements of a variety of field devices. The input can accept dry contact or voltage signals, and the output has different load - bearing capacities and connection methods to adapt to different types of actuators and sensors.
Good Compatibility: It can be well - integrated with other components of the HIMA safety - related controller series to form a complete control system.
Easy Diagnosis and Maintenance: Each channel has an independent LED indicator to display the state (high or low) of the input and output, which is convenient for users to quickly detect faults and troubleshoot. At the same time, it supports remote monitoring and diagnosis functions, which can be monitored and maintained through the corresponding software.

Application Areas

Manufacturing Industry: Used to control the movement of machinery and equipment, such as the start - stop control of motors, the action control of cylinders, etc., to realize the automation of the production process and improve production efficiency and product quality.
Process Control Industry: Such as chemical, oil and gas industries, it is used to monitor and control process parameters, such as temperature, pressure, flow, etc. By connecting with various sensors and control valves, it ensures the safe and stable operation of the production process and prevents accidents caused by process failures.
Machine Safety Systems: It can be used as an important part of machine safety protection, such as connecting with safety doors, emergency stop buttons and other devices to ensure the safety of operators when the machine is running.
