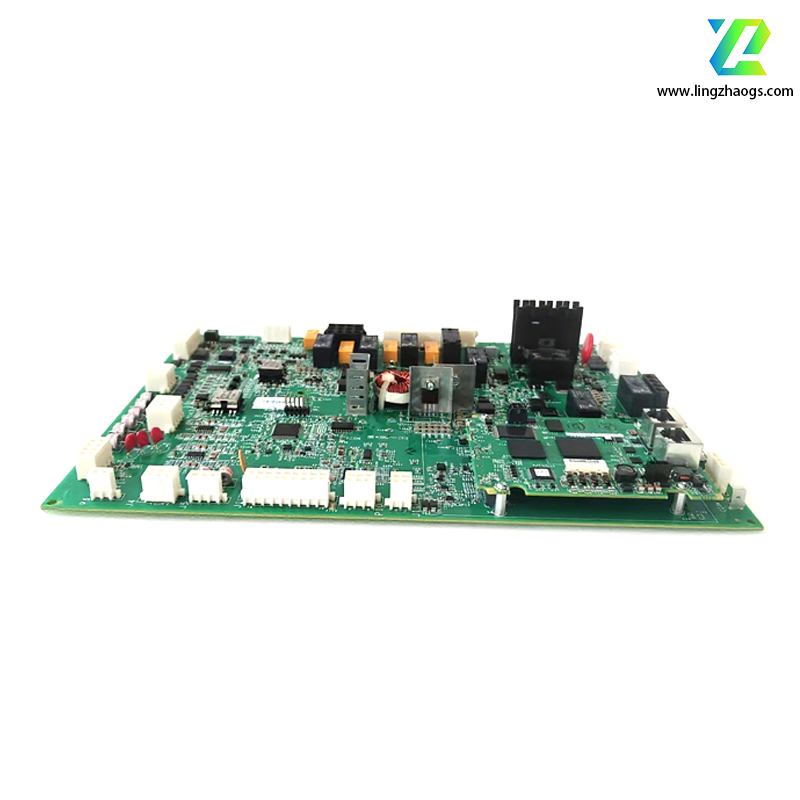

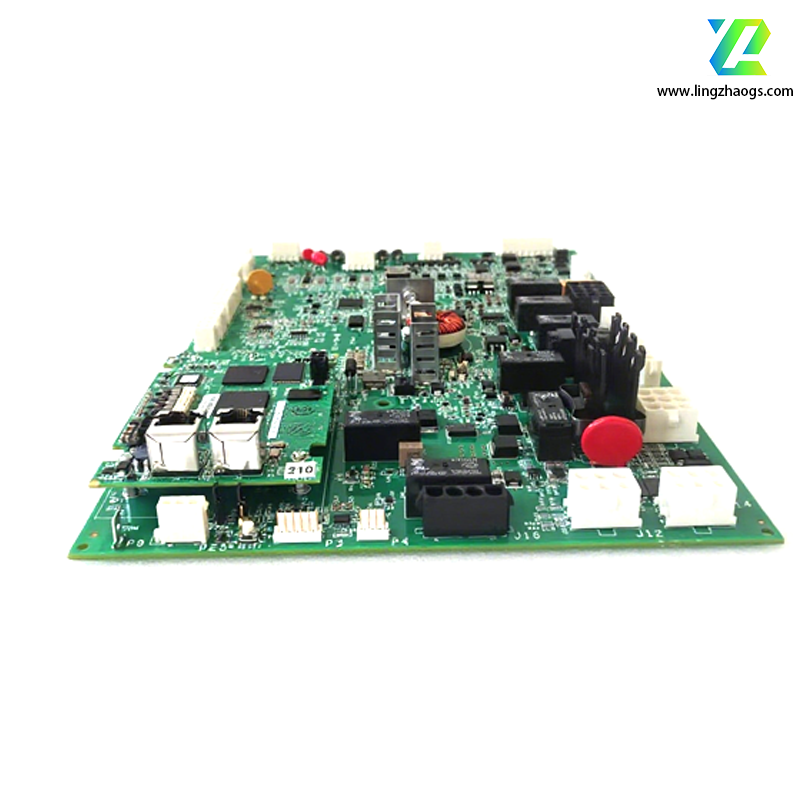

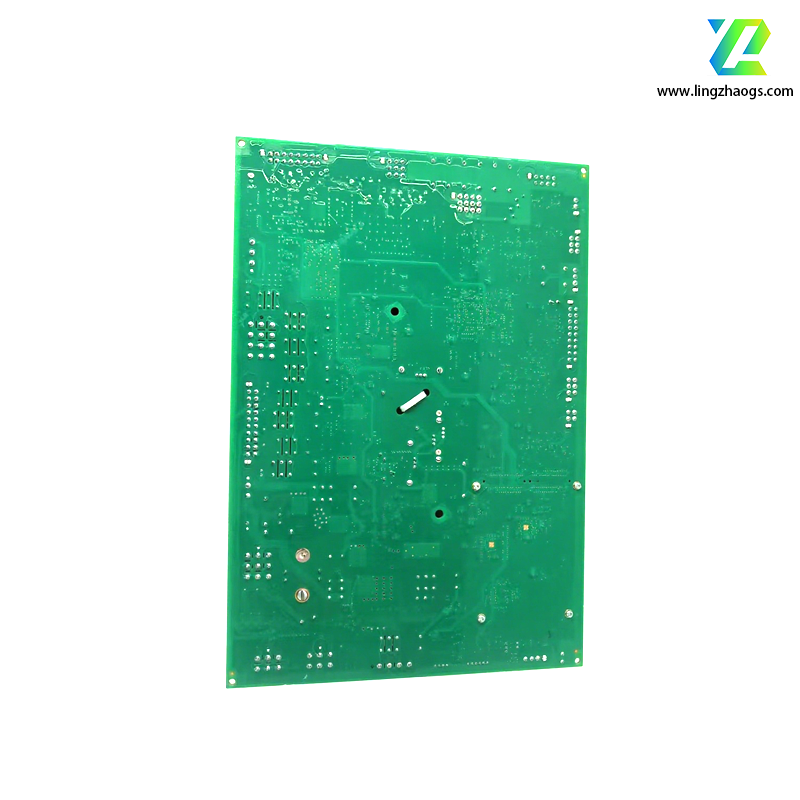

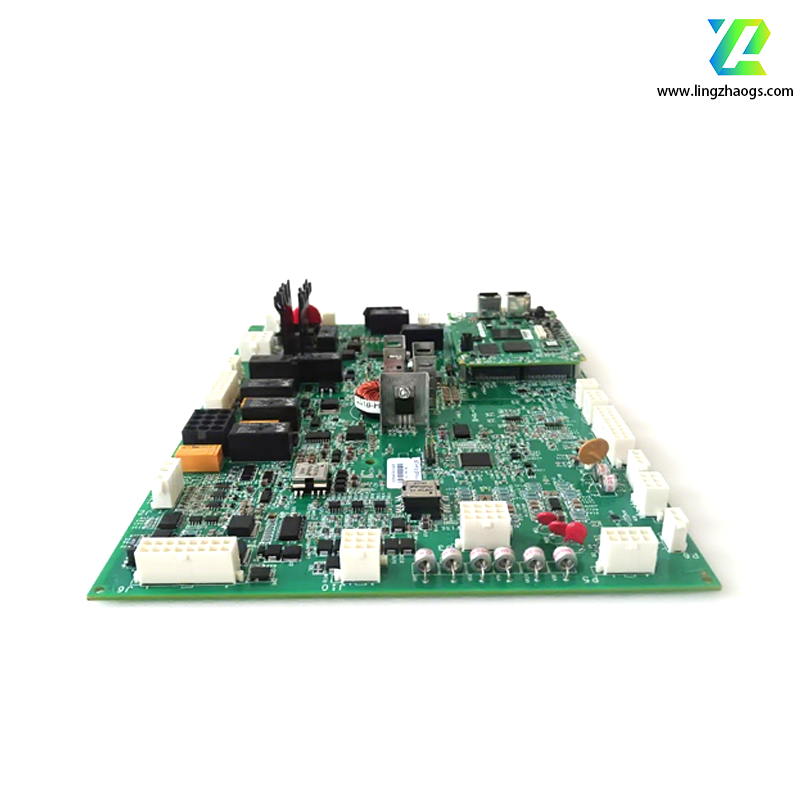

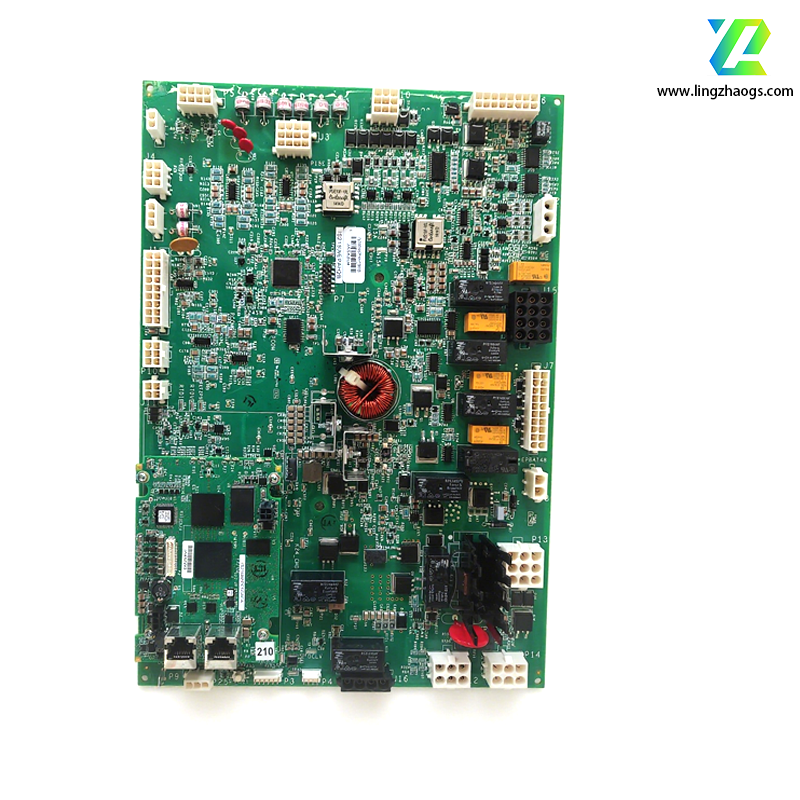

The GE IS215WEPAH2B is a printed circuit board applied in the wind energy pitch axis of the GE Mark VIe Speedtronic control system series for wind turbine control systems. Here are the details:
- Basic Information
- Manufacturer: General Electric (GE).
- Part Number: IS215WEPAH2B.
- Functional Revision: B grade.
- Technical Specifications
- Power Supply Rating: 125 VDC.
- Communication Ports: There are 3 communication ports, namely Com 1, Com 2, and a micro - miniature 9 - pin socket D connector.
- Ethernet Interfaces: 10 BaseT/AUI connector.
- Relative Humidity: 10 - 95%, non - condensing.
- Shock Resistance: Maximum 10 g, non - operating.
- Software Frame Rates: 10, 20, and 40 ms.
- Storage Temperature: - 40 to + 70 degrees Celsius.
- Input and Output Types
- Analog Inputs: 8.
- Incremental Encoder Input: 1.
- Additional Analog Input: 1.
- Discrete Inputs: 20.
- Discrete Outputs: 2.
- Relay Outputs: 9.
- RS - 485 Interfaces: 2.
- Pulse - Width Modulated Control Outputs: 2.
- Other Features
- The board has a modular assembly, specifically consisting of the AEPAH1B and the BPPB daughter board.
- The "H2B" in the part number indicates a once - revised, conformally - coated PCB within the group 2 Mark VIe series.
