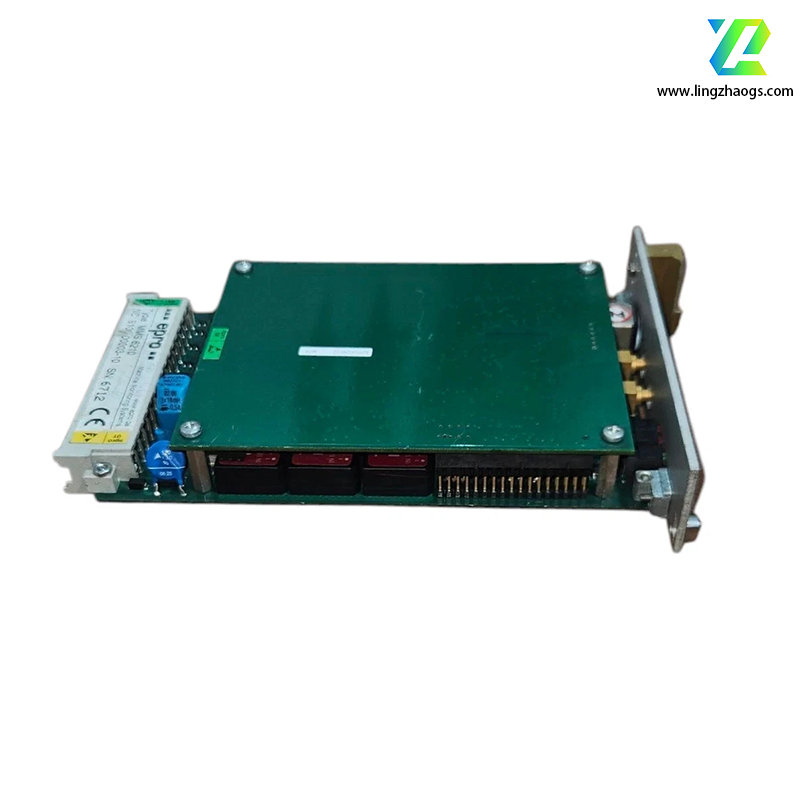

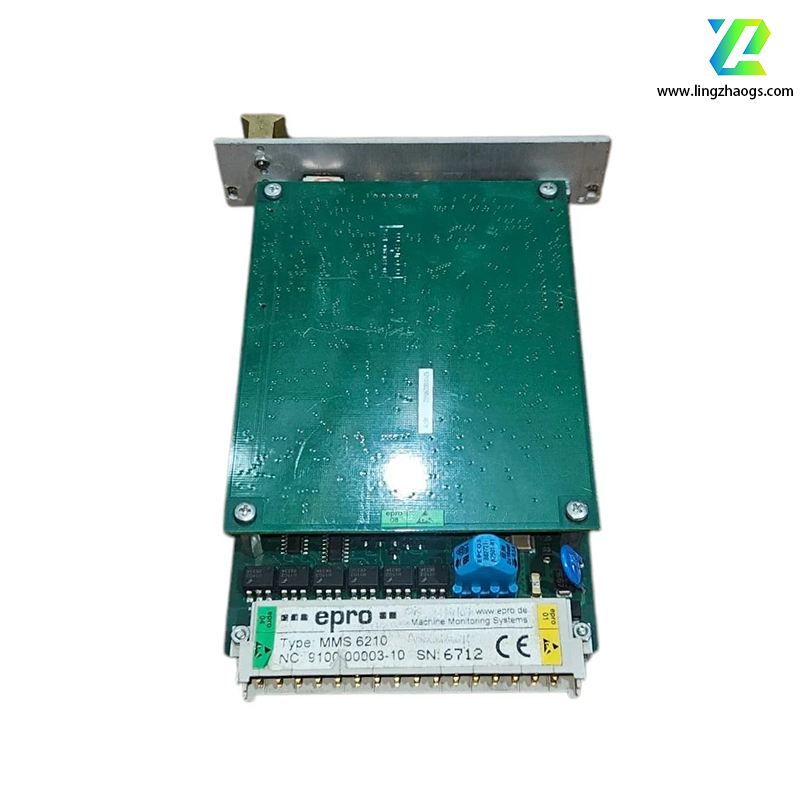

Product Overview

• Brand: EPRO (now part of Emerson Automation Solutions)
• Model: MMS6210
• Series: MMS6000 (Turbine Monitoring System)
• Type: Dual-Channel Vibration Monitoring Module
• Industry: Power generation (steam/gas turbines, hydro generators), oil & gas (compressors, pumps), petrochemicals, and industrial manufacturing.
• Function: Monitors radial and axial vibration of rotating machinery (e.g., turbine shafts, generator rotors) using eddy-current proximity probes (e.g., EPRO PR64xx series). It processes raw vibration signals to calculate key parameters (e.g., peak-to-peak displacement, velocity, acceleration) and triggers alarms or emergency shutdowns if thresholds are exceeded. The module integrates with EPRO’s MMS6000 system for centralized monitoring, protecting equipment from damage caused by unbalance, misalignment, bearing wear, or resonance.

Key Features

1. Dual-Channel High-Precision Monitoring
   • Equipped with two independent channels to monitor vibration from two proximity probes (e.g., measuring radial vibration at the turbine’s front and rear bearings).
   • Supports eddy-current proximity probe signals (50 mV/μm sensitivity, typical for EPRO PR6423/PR6424 probes) and processes data with high accuracy (±0.5% of full scale) to detect subtle vibration changes indicative of early equipment faults.
   • Measures multiple vibration parameters per channel:
     • Peak-to-peak displacement (standard for shaft vibration monitoring).
     • Peak velocity and acceleration (optional, via software configuration).
     • DC gap voltage (to monitor shaft position alongside vibration).
2. Comprehensive Alarm & Shutdown Logic
   • Configurable alarm thresholds (warning and danger levels) for each vibration parameter, set via EPRO’s configuration software (e.g., EPRO Studio).
   • Independent hardwired relay outputs (per channel) for alarm signaling and shutdown triggers, ensuring protection even if the MMS6000 system’s communication fails.
   • Supports time-delay settings to avoid false alarms caused by transient vibration (e.g., during turbine startup).
3. Seamless System Integration
   • Communicates with EPRO’s MMS6000 system backplane for data aggregation and centralized control. Connects to communication modules (e.g., EPRO CON021) to transmit data to DCS, SCADA, or predictive maintenance platforms (e.g., Emerson AMS Suite) via standard protocols (Modbus, PROFIBUS DP).
   • Hot-swappable design allows module replacement without shutting down the entire MMS6000 system, minimizing downtime for critical machinery.
4. Rugged Design for Harsh Environments
   • Built to withstand the demanding conditions of power plants and oil & gas facilities:
     • Temperature Resistance: Operates in -20°C to +70°C, suitable for turbine enclosures and outdoor installations.
     • Vibration/Shock Immunity: Compliant with IEC 60068-2-6 (vibration, 5–500 Hz) and IEC 60068-2-27 (shock, 30g peak acceleration), durable for use near rotating equipment.
     • EMC Compliance: Meets IEC 61000-6-2 (industrial immunity) and IEC 61000-6-4 (industrial emissions), preventing interference from nearby electrical systems (e.g., generator exciters).

Key Specifications

1. Electrical Parameters
   • Power Supply: 24V DC (nominal), powered via the MMS6000 system backplane; tolerance range 18–32V DC.
   • Power Consumption: ≤10W per module (varies with active channels and relay operation).
   • Input Signals (Per Channel):
     • Type: Eddy-current proximity probe signals (differential or single-ended).
     • Sensitivity Range: 20–100 mV/μm (compatible with EPRO PR64xx and third-party probes).
     • DC Gap Voltage Range: -2.5V to +2.5V (to monitor shaft position).
   • Outputs:
     • Relay Outputs: 4 configurable relays (2 per channel; 2A @ 250V AC / 30V DC) for warning, danger, and shutdown signals.
     • Analog Outputs: 2 x 4–20 mA signals (1 per channel) for vibration displacement/velocity (configurable via software).
2. Physical & Environmental Attributes
   • Form Factor: Rack-mount module (compatible with EPRO MMS6000 19-inch cabinets), 1 rack unit (U) high.
   • Dimensions: Approximately 483 mm (width) × 44 mm (height) × 160 mm (depth) (1U form factor).
   • Environmental Ratings:
     • Operating Temperature: -20°C to +70°C.
     • Storage Temperature: -40°C to +85°C.
     • Humidity: 5–95% (non-condensing).
     • Ingress Protection (IP): IP20 (when mounted in a control cabinet).
3. Performance Metrics
   • Measurement Range: 0–500 μm peak-to-peak displacement (configurable to 0–2000 μm for larger machines).
   • Accuracy: ±0.5% of full scale (for displacement measurements).
   • Sample Rate: 10 kHz per channel (enables detection of high-frequency vibration components indicative of bearing defects).
   • Response Time: <100 ms for alarm/shutdown triggers (critical for preventing catastrophic equipment failure).

Applications

• Turbine Vibration Monitoring:
  • Primary application: Monitors radial vibration of steam/gas turbine shafts in power plants. Detects faults like rotor unbalance, misalignment, or journal bearing wear, triggering alarms before damage occurs.
  • Axial vibration monitoring: Tracks thrust bearing wear in turbines by measuring axial shaft movement, preventing rotor rub or seal damage.
• Generator & Compressor Protection:
  • Used in power plant generators to monitor stator and rotor vibration, ensuring grid stability by avoiding excessive vibration-induced power fluctuations.
  • Integrates with EPRO MMS6000 systems in oil & gas compressors to monitor vibration in centrifugal or reciprocating compressors, supporting predictive maintenance programs.
• Critical Rotating Machinery:
  • Applied to pumps, fans, and blowers in petrochemical refineries, where unexpected vibration can lead to process downtime or safety hazards (e.g., leakages from pump seals).

Availability and Support

• Condition: Available as new OEM (through Emerson Automation Solutions or authorized distributors) or genuine refurbished (via specialized suppliers like AES Industrial, Hitech Control Systems).
• Warranty: 12-month warranty for new units (covers defects in materials/workmanship); refurbished units typically include a 6-month warranty.
• Documentation:
  • Technical datasheets, wiring diagrams, and calibration guides are accessible to Emerson customers via Emerson’s Support Portal.
  • Emerson offers training and technical support for integrating the MMS6210 into EPRO MMS6000 systems and configuring vibration thresholds.

Compatibility and Similar Products

• Compatible Systems & Components:
  • EPRO MMS6000 Turbine Monitoring System (requires MMS6000 backplane and power supply).
  • EPRO Proximity Probes: PR6423 (8 mm), PR6424 (11 mm), PR6425 (14 mm) (eddy-current probes for vibration/position measurement).
  • EPRO Communication Modules: CON021 (Modbus/PROFIBUS) for integration with DCS/SCADA.
  • Third-Party Probes: Compatible with eddy-current probes from Bently Nevada (e.g., 3300 XL) and SKF (with calibration).
• Similar EPRO/Emerson Models:
  • EPRO MMS6220: Four-channel vibration monitoring module (for larger machines requiring more measurement points).
  • EPRO MMS6310: Dual-channel temperature monitoring module (complementary to MMS6210 for combined vibration/temperature protection).

Installation and Maintenance Notes

1. Setup Requirements:

• Mount in an EPRO MMS6000 system cabinet via the backplane connector; ensure proper alignment with the cabinet’s cooling airflow to avoid overheating.
• Calibrate each channel via EPRO Studio software to match the connected proximity probe’s sensitivity (e.g., 80 mV/μm for PR6423) and set vibration measurement ranges (e.g., 0–250 μm peak-to-peak).

2. Wiring Guidelines:

• Use shielded, twisted-pair cables for proximity probe connections (minimum 2-core, 0.5 mm² copper wire) to minimize EMI interference.
• Connect probe cables to the module’s terminal blocks, ensuring correct polarity for differential signals. Ground the cable shield at the probe end only to prevent ground loops.

3. Safety & Troubleshooting:

• Follow lockout-tagout (LOTO) procedures when installing or servicing the module—disabling vibration monitoring can leave machinery unprotected.
• Use front-panel LED indicators to diagnose status:
  • Green (Power): Module is powered on.
  • Green (Channel 1/2): Channel active, no alarm.
  • Yellow (Channel 1/2): Warning alarm triggered.
  • Red (Channel 1/2): Danger alarm/shutdown triggered.
• For measurement errors, check probe alignment (ensure probe gap is within 0.5–2.0 mm) and verify cable continuity with a multimeter. Calibration drift (common after 12–24 months) requires re-calibration via EPRO Studio.

Critical Notes

1. Probe Compatibility: The MMS6210 is optimized for EPRO’s PR64xx series probes. When using third-party probes (e.g., Bently Nevada), re-calibrate the module to match the probe’s sensitivity and linear range to ensure measurement accuracy.
2. System Redundancy: For mission-critical applications (e.g., nuclear power plant turbines), use redundant MMS6210 modules (1:1 backup) to avoid protection gaps if the primary module fails.
3. Genuine Parts Only: Use genuine EPRO MMS6210 modules for safety-critical vibration monitoring. Aftermarket alternatives may lack EPRO’s calibration precision or relay reliability, risking delayed fault detection and equipment damage.
