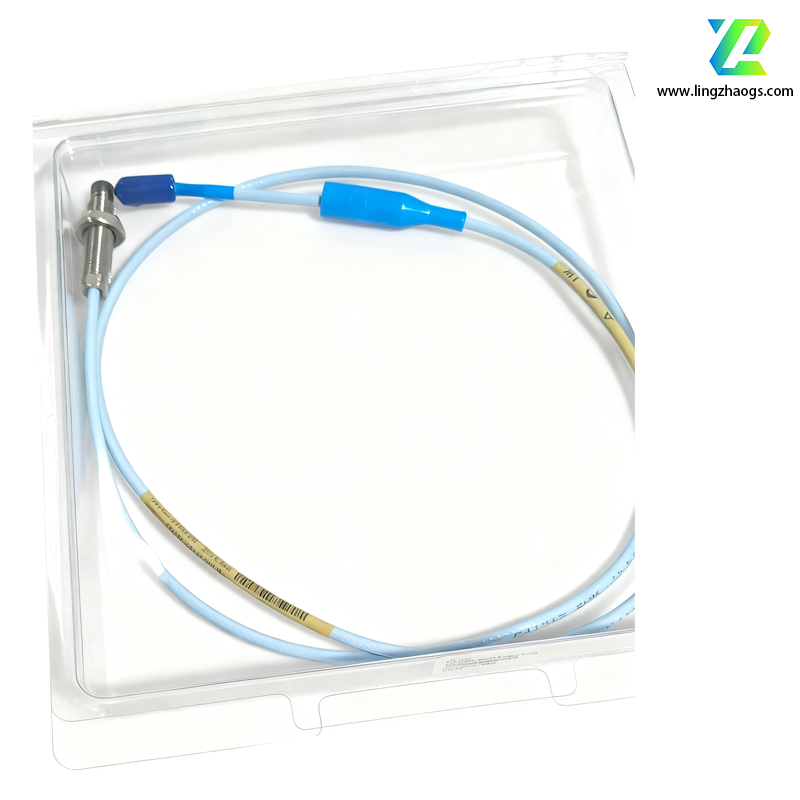

The Bently 330103 - 00 - 04 - 10 - 02 - 00 is a high - performance 8 mm proximity probe belonging to the Bently Nevada 3300 XL series. The following is the detailed information in English:
- Brand: Bently Nevada
- Model: 330103 - 00 - 04 - 10 - 02 - 00
- Series: 3300 XL
- Type: Proximity Probe
- Function: It is mainly used for non - contact measurement of shaft displacement and vibration in rotating machinery, such as turbines, motors, and compressors, providing important data for equipment condition monitoring and predictive maintenance.
- Unthreaded Length (00): No unthreaded section.
- Case Length (04): 40 mm threaded case length.
- Total Probe Length (10): 1.0 - meter probe length.
- Connector and Cable Type (02): Miniature coaxial click loc connector with standard cable.
- Agency Approval (00): No special approvals required.
- Mechanical
- Thread Type: M10 x 1
- Case Length: 40 mm
- Probe Length: 1.0 meter
- Electrical
- Input Voltage (UI): - 28 V
- Input Current (II): 140 mA
- Capacitance (CI): 1.5 nF
- Inductance (LI): 610 μH
- Power Input (PI): 0.91 W
- Environmental
- Operating Temperature: - 34 °C to + 177 °C
- Hazardous Area Rating:
- Ex ia: Suitable for gas (IIC T5 – T1 GA) and dust (IIIC T90 °C – T280 °C DC).
- Ex na / ec: Gas protection (IIC T5 – T1 GC).
- The 3300 XL 8 mm system represents the most advanced performance in an eddy - current proximity transducer system.
- The standard 3300 XL 8 mm 5 - metre system is 100 % compliant with the American Petroleum Institute ’s (API) 670 standard (4th edition) for mechanical configuration, linear range, accuracy, and temperature stability.
- All 3300 XL 8 mm proximity transducer systems allow complete interchangeability of probe, extension cable, and proximitor sensor without the need for individual component matching or bench calibration.
