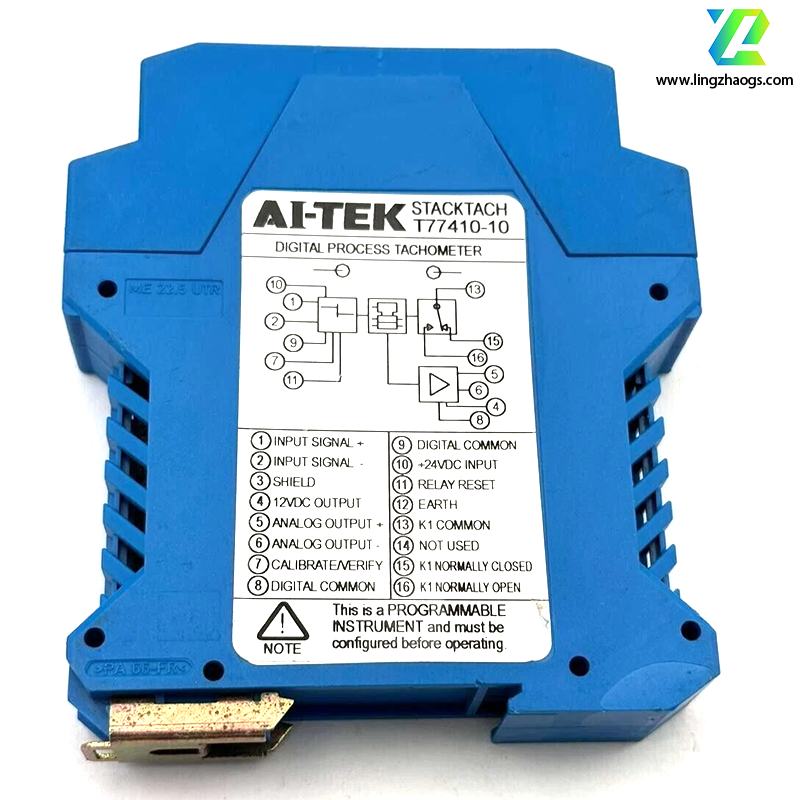

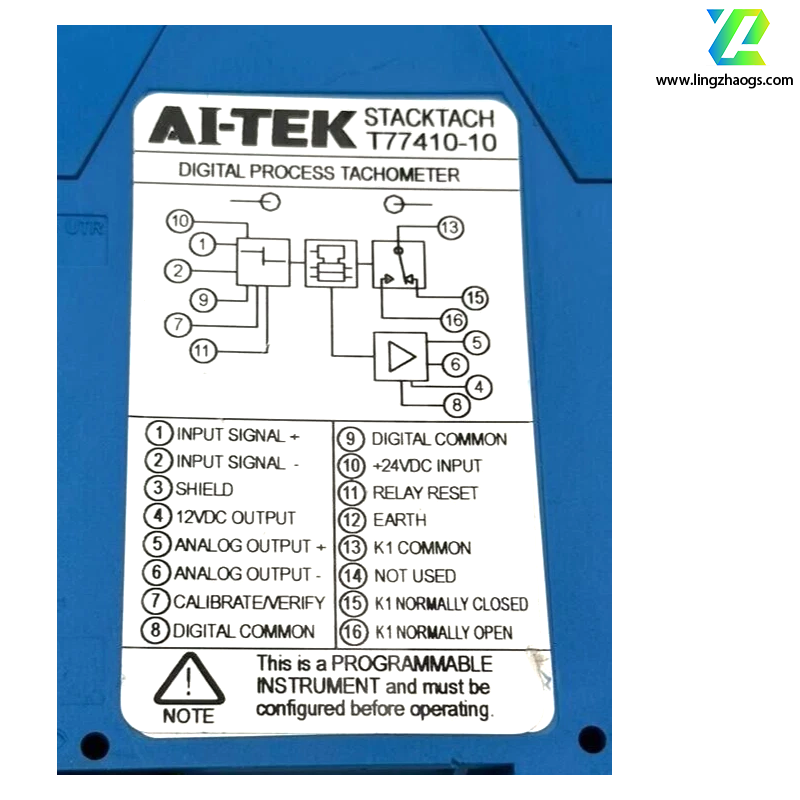

AI-TEK T77410-10 is a single-input industrial tachometer designed for reliable speed monitoring in harsh industrial environments. Below is its detailed specification:
- Operates on 24VDC power input.
- AI-TEK offers an optional switch-mode power supply (SMPS) that can power up to three stacked tachometers. This power supply is certified by UL, CSA, and DIN VDE, and complies with CE standards.
- 1 analog output (for continuous speed signal transmission, e.g., to PLCs or control systems).
- 1 relay output with a rated current of 6A (for triggering alarms, shutdowns, or other control actions based on speed thresholds).
- Housed in a rugged enclosure with IP40 protection rating, safeguarding against dust ingress and accidental contact, suitable for factory floor or harsh installation environments.
- Complies with the EMC Directive 89/336/EEC and meets CE standards.
- Immunity: Conforms to EN 50082-2:1995 (resistant to electromagnetic interference from industrial equipment).
- Emissions: Conforms to EN 50081-2:1995 (minimizes electromagnetic radiation to avoid interfering with other devices).
- Vibration resistance: Complies with IEC 68-2-6 standard, tested at 10–150 Hz with 2g acceleration.
- Shock resistance: Complies with IEC 68-2-27 standard, withstands 50g half-sine wave shocks (ensures stability under sudden impact or mechanical vibration).
Widely used in scenarios requiring precise speed monitoring and control, including:
- Petrochemical production
- Pump or generator alarm systems
- Low-speed measurement applications
- Extended analog scale speed transmitters
- Start-up/over-speed/low-speed switching
- Textile, paper, and pulp production
- Turbine speed control input
- Metal production and mining
- Frequency measurement
- Test laboratories
- Generator sets
- Food processing
- Conveyor protection
- Printing industry
