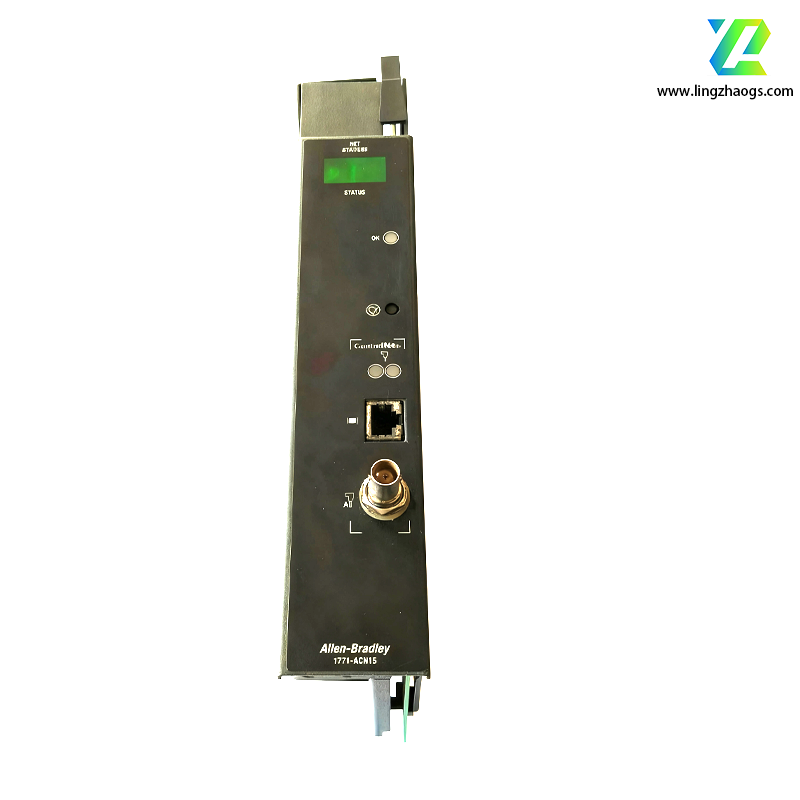

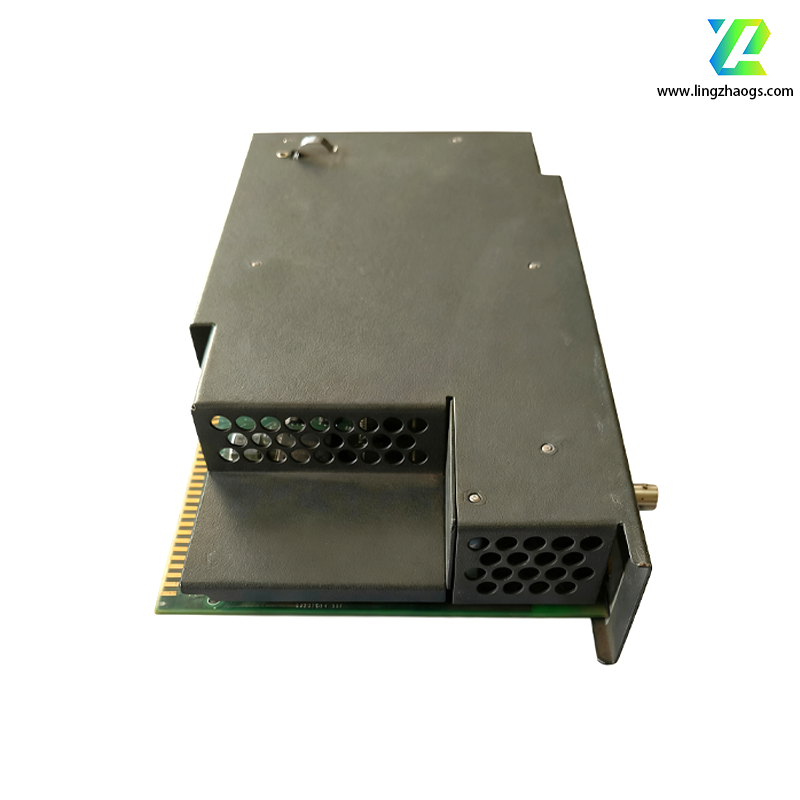

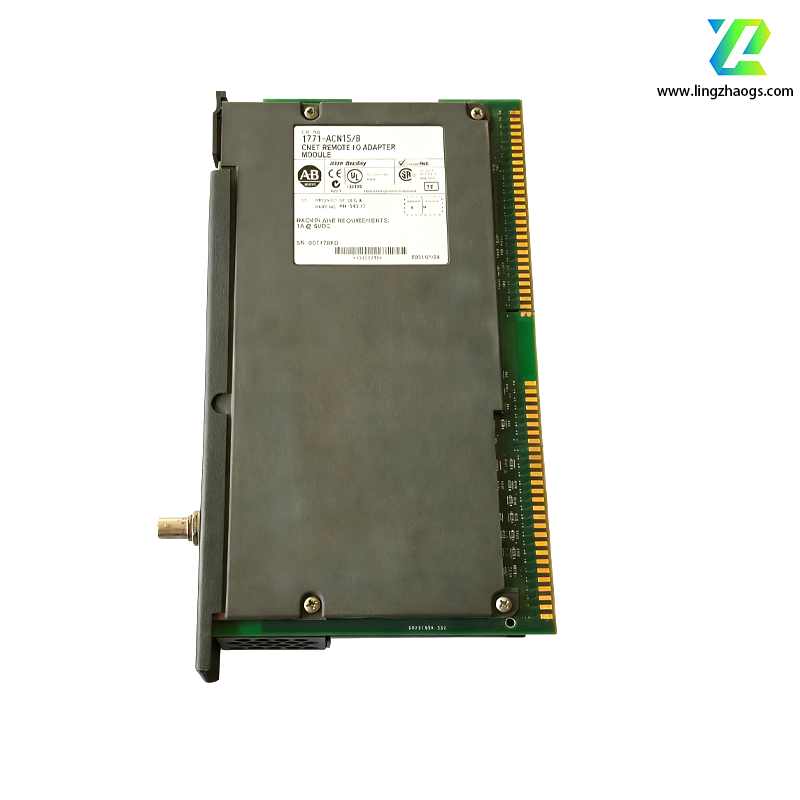

The 1771-ACN is a ControlNet adapter module manufactured by Allen-Bradley, a brand of Rockwell Automation. Here are the detailed contents:
- Brand/Manufacturer: Allen-Bradley/Rockwell Automation
- Series: PLC-5
- Module Type: ControlNet adapter module
- Function: It enables the connection of remote I/O racks to a PLC-5 controller, facilitating the integration and control of distributed I/O across an industrial automation system. It also allows communication and data transmission between the ControlNet network and other industrial automation networks or devices.
- Key Features:
- Remote I/O Communication: Allows connection of up to 32 remote I/O racks, extending the reach of the PLC-5 controller across large or distributed systems.
- High-Speed Data Transfer: Supports high-speed communication, ensuring fast and reliable data exchange between the controller and remote I/O devices.
- Compatibility: Seamlessly integrates with PLC-5 processors, providing flexibility in system design and expansion. It is also compatible with ControlLogix platform.
- Multiple Baud Rates: Configurable for various baud rates (57.6 k, 115.2 k, 230.4 k), allowing optimization of communication speed based on system requirements.
- Diagnostic Indicators: Equipped with LED indicators for status, communication, and error detection, aiding in quick diagnostics and troubleshooting.
- Technical Specifications:
- Backplane Current: 1.0A at 5V DC
- Power Dissipation: 5 watts
- Thermal Dissipation: 17.06 BTU per hour
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Relative Humidity: 5% to 95% non-condensing
- Dimensions: 315 x 193 x 610 mm (12.4 x 7.6 x 24 inches)
- Weight: 7.7 kg (14.8 lbs)
- Certifications: UL listed, CSA certified, CE marked
