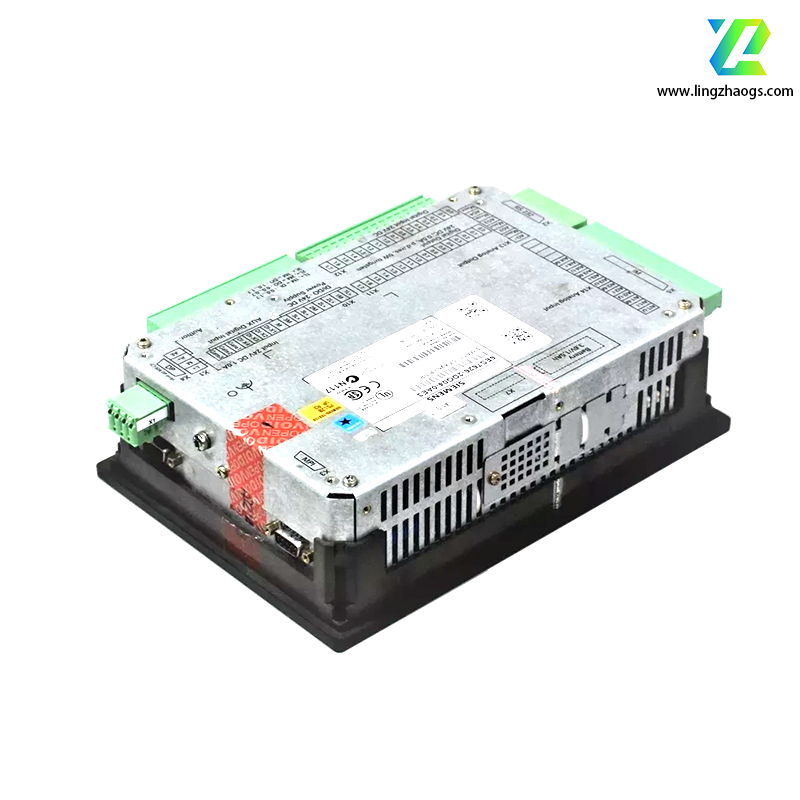

The Siemens 6ES7626-2DG04-0AE3 is a SIMATIC C7-626/P DP compact unit, which combines multiple functions into one device. Here are the detailed specifications:
- Product Series: SIMATIC C7
- Product Type: Compact Unit
- Product Phase: Obsolete
- Predecessor: 6ES7626-2DG03-0AE3
- Integrated Components: S7-300 CPU 315 2DP (128 KB), SIMATIC OP25, and IM 360
- Digital Inputs: 16, 24 V DC
- Digital Outputs: 16
- Analog Inputs: 4
- Analog Outputs: 4
- Universal Inputs: 4
- CPU Memory: 128 KB for the integrated S7-300 CPU 315 2DP
- Operating Memory: 96 KB
- RAM: 96 KB/32 K instructions
- Display Type: Integrated display (similar to SIMATIC OP25)
- Resolution: 320 x 240 pixels
- Integrated Communication Interfaces: Two PROFIBUS DP interfaces (due to the integrated CPU 315 2DP), which can be used for connecting to PROFIBUS DP slaves, other PROFIBUS DP devices, or for network expansion
- Dimensions: Approximately 29.7 x 33.5 x 18.9 cm (L x W x H)
- Weight: 1.92 kg
- Mounting: Can be mounted on a standard DIN rail or panel-mounted depending on the application requirements
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -40°C to +85°C
- Protection Class: IP20 (protects against dust ingress; requires additional protection in harsh environments)
This compact unit is designed for industrial automation applications where a combination of PLC control, operator interface, and I/O functionality is required in a single device. It has been discontinued by Siemens, and for new projects, Siemens recommends considering more modern automation solutions such as the SIMATIC S7-1500 series with appropriate operator panels.
