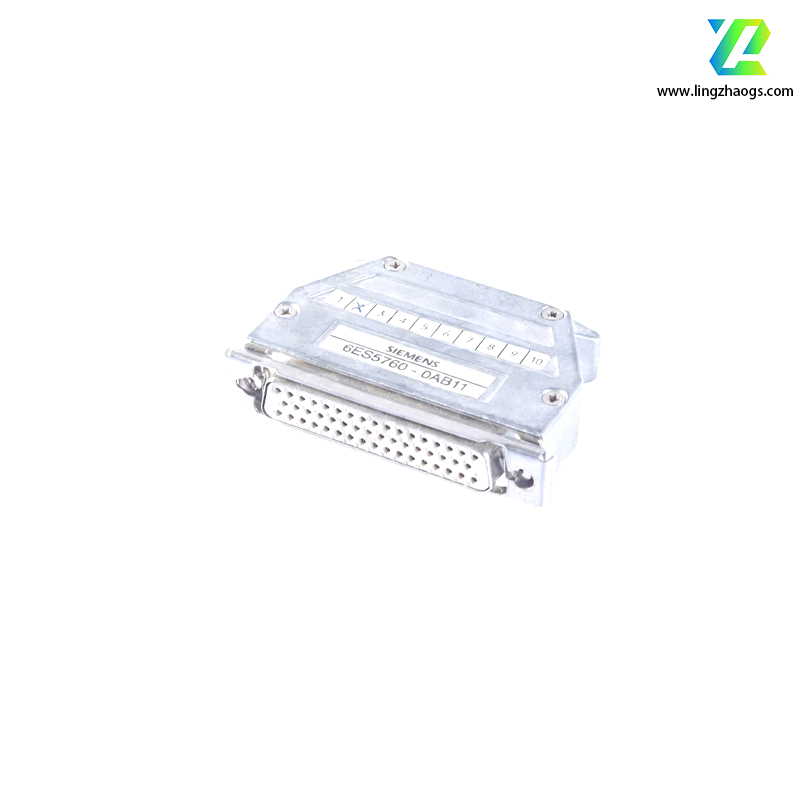

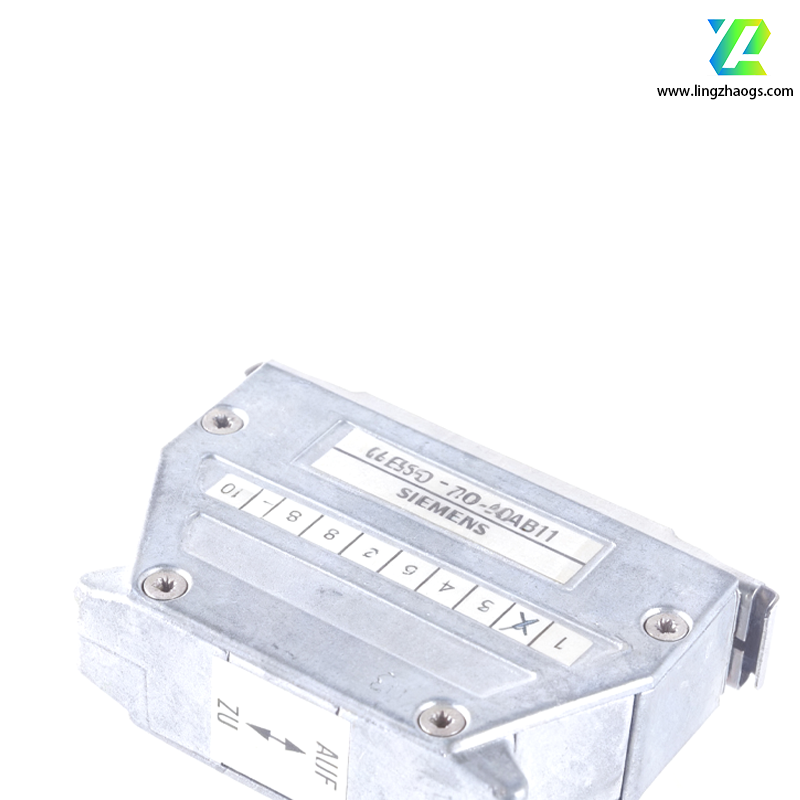

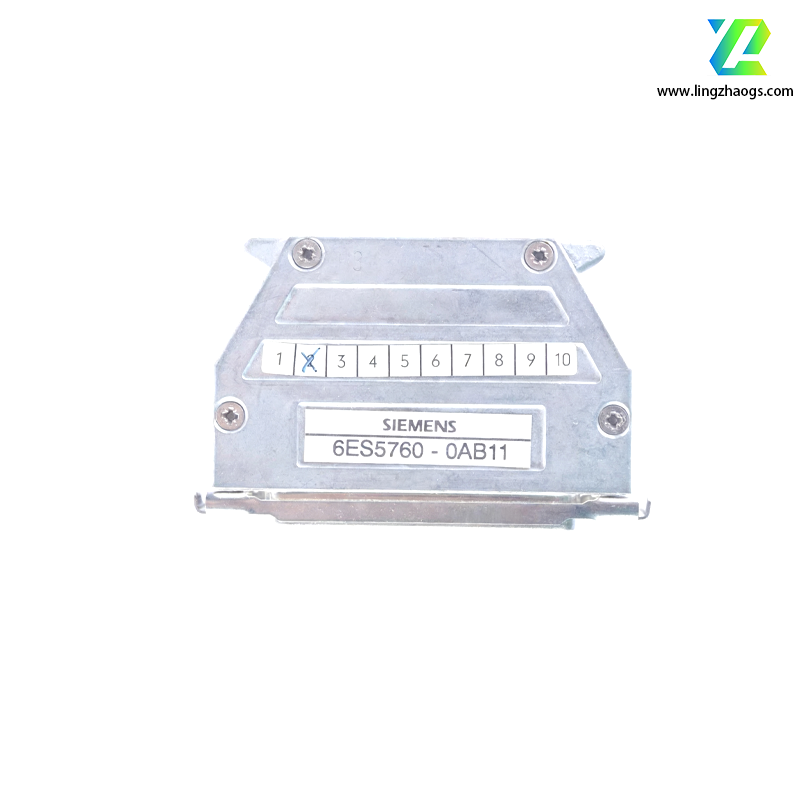

The Siemens 6ES5760-0AB11 is a terminating resistor connector designed for use in SIMATIC S5 PLC systems. Here is the detailed information:
- Product Series: SIMATIC S5.
- Module Type: Terminating resistor connector.
- Compatibility: Specifically tailored for the IM312 CC Interface Module and the IM301 EU Interface Module in the SIMATIC S5 series.
- Product Status: As the SIMATIC S5 series has been phased out, this component is also obsolete, with support and spare parts gradually discontinued.
- Function: Provides termination for communication lines to prevent signal reflection, ensuring the integrity of data transmission between interface modules.
- Connector Type: 50 - pin connector.
- Dimensions (W×H×D): Approximately 74 mm × 46 mm × 15.4 mm.
- Weight: Approximately 0.04 kg.
- Power Supply: Does not require an independent power supply as it is a passive component for signal termination.
- Environmental Tolerance: Suitable for industrial environments with standard temperature and vibration resistance, typically operating within the range of 0°C to +60°C (non - condensing) and storing within the range of -20°C to +80°C.
- Mounting: Can be easily installed and connected to the relevant interface modules via its 50 - pin connector.
- Protection Rating: IP20, which means it is suitable for panel - mounted use within a control cabinet and not for direct field installation.
This terminating resistor connector plays a crucial role in maintaining the stability and reliability of the communication network in SIMATIC S5 PLC systems, especially in multi - module and multi - device communication scenarios.
