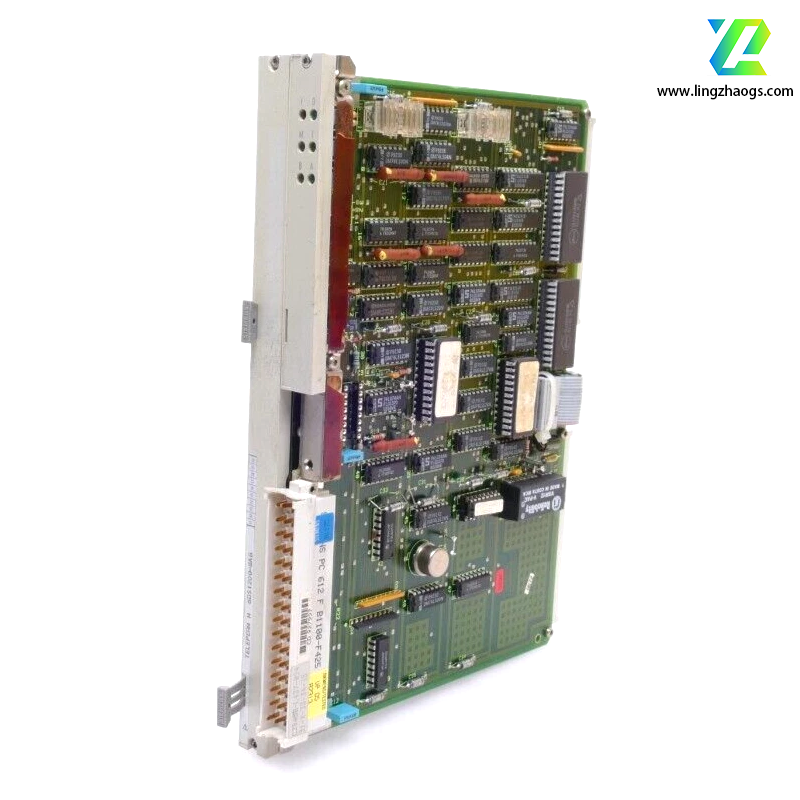

The Siemens 6DS1200-8AB is a digital input module used in industrial automation systems. Here is the detailed information in English:
It is a digital input module designed to receive digital signals from various field devices, such as sensors, and convert them into a format that can be processed by the control system. It has 8 digital input channels, allowing it to handle multiple input signals simultaneously.
- Input Signal: The input voltage range is 24V DC, and the maximum input current per channel is 10 mA.
- Operating Temperature Range: -25°C to +60°C.
- Protection Rating: IP20, which means it is protected against dust ingress and limited protection against vertically falling drips.
- Dimensions: Width: 10 mm, Height: 60 mm, Depth: 100 mm.
- Weight: Approximately 0.2 kg.
- Electrical Isolation: There is electrical isolation between the field side and the logic side to prevent electrical interference, typically with an isolation voltage of 500 VAC for 1 minute (similar to Siemens' common digital input module isolation standards).
- Communication Interface: It may support communication protocols such as PROFIBUS, MPI, or DP, which enables it to communicate with other devices and control systems in the industrial network.
The 6DS1200-8AB is suitable for a wide range of industrial applications, including manufacturing plants, power plants, and process control systems. It can be used to monitor the status of various field devices, such as the on/off status of switches, the position of limit switches, etc., and transmit this information to the central control system for further processing and control.
It may have certifications such as CE, UL, and ATEX, depending on the specific application requirements and regional standards. These certifications ensure that the module meets the relevant safety, electromagnetic compatibility, and other performance standards.
Please note that the above information is based on the common characteristics of similar Siemens digital input modules and the partial information available in the public domain. For the most accurate and detailed technical specifications, it is recommended to refer to the official Siemens product manual.
