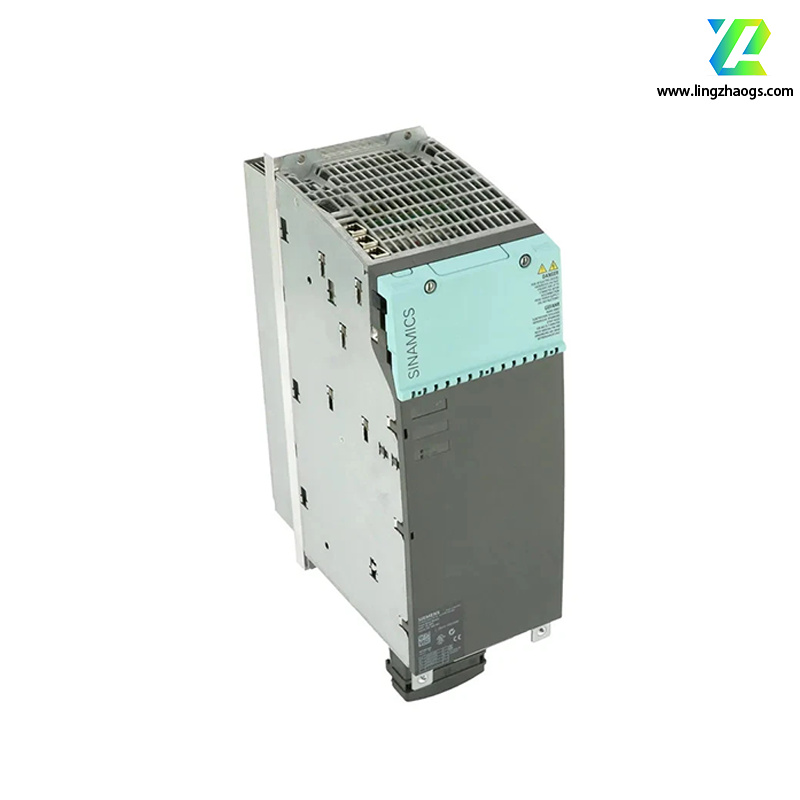

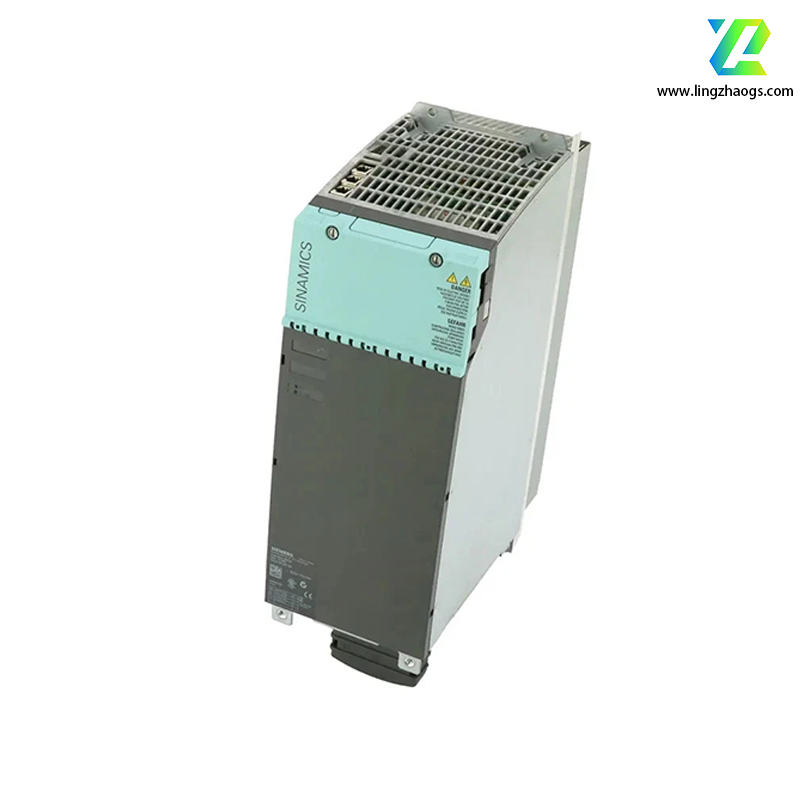

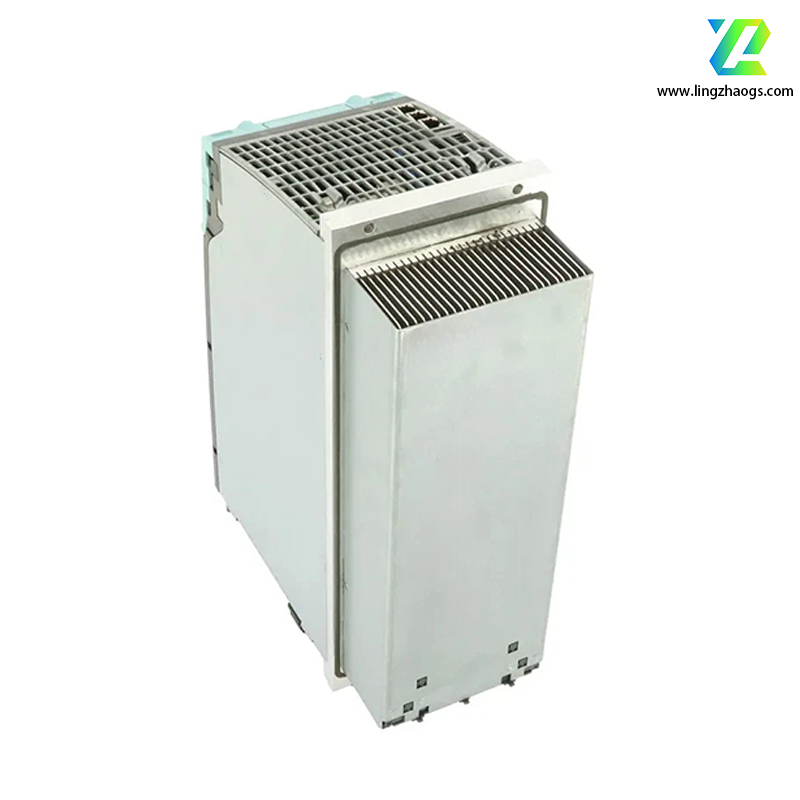

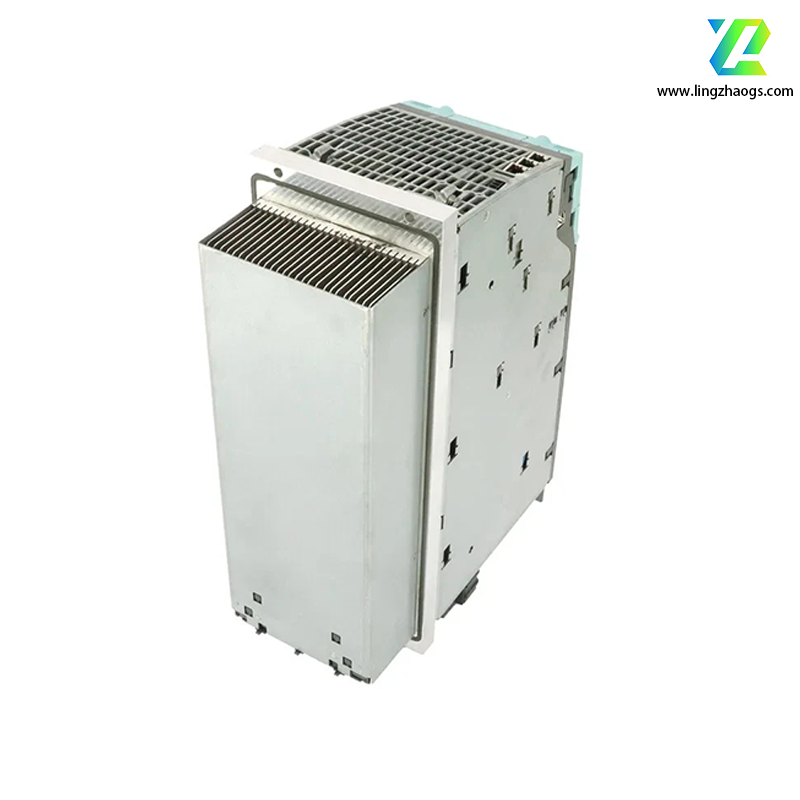

The Siemens 6SL3121-1TE24-5AA3 is a single motor module belonging to the SINAMICS S120 series. Here is its detailed information in English:
- Brand: Siemens
- Part Number: 6SL3121-1TE24-5AA3
- Product Series: SINAMICS S120
- Product Type: Single Motor Module
- Function: It is used to control and regulate the operating status of the motor, and can achieve the control of parameters such as the motor's speed, torque, and position.
- Input Voltage: 600 V DC
- Output Voltage: 3-phase 400 V AC
- Rated Output Current: 45 A
- Base Load Current: 38 A
- Output Current for S6 Duty: 60 A (40% duty cycle)
- Maximum Output Current: 85 A
- Frame Size: Booksize
- Cooling Method: External air cooling
- Protection Level: IP20 (open enclosure)
- Dimensions: Approximately 15.00 cm x 22.60 cm x 38.00 cm (height x width x depth)
- Weight: About 13.2 kg
- Features: It has optimized pulse patterns and supports extended safety - integrated functions. It also includes a DRIVE - CLiQ cable, which is used for communication and connection with other components in the drive system.
- Machine Tools: Such as CNC lathes, milling machines, and machining centers, used to control the spindle and feed axes to ensure high - precision position and speed control.
- Material Handling: In logistics warehouses and production lines, it is used to coordinate multi - axis conveyors, robotic arms, and lifting equipment.
- Packaging and Printing: Applied to packaging machines (such as filling, sealing) and printing presses (such as web tension control) to synchronize the drive axes.
- Automotive Manufacturing: Used to drive robotic assembly lines, conveyor systems, and paint shop equipment, requiring reliable multi - axis synchronization.
