General Information

• Brand: Siemens
• Part Number: 6GK1161-3AA01
• Product Series: SIMATIC NET

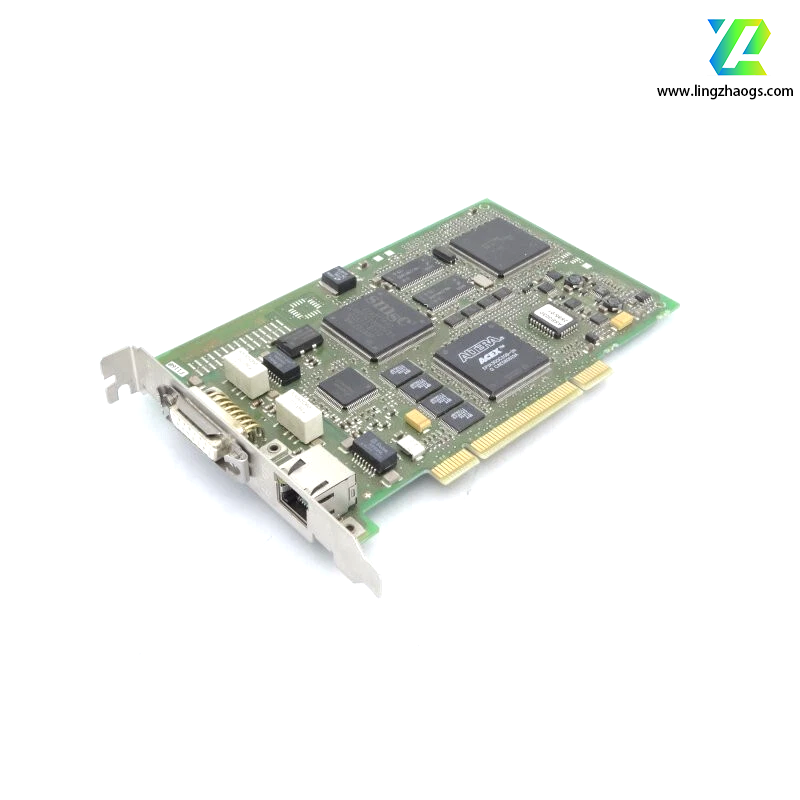

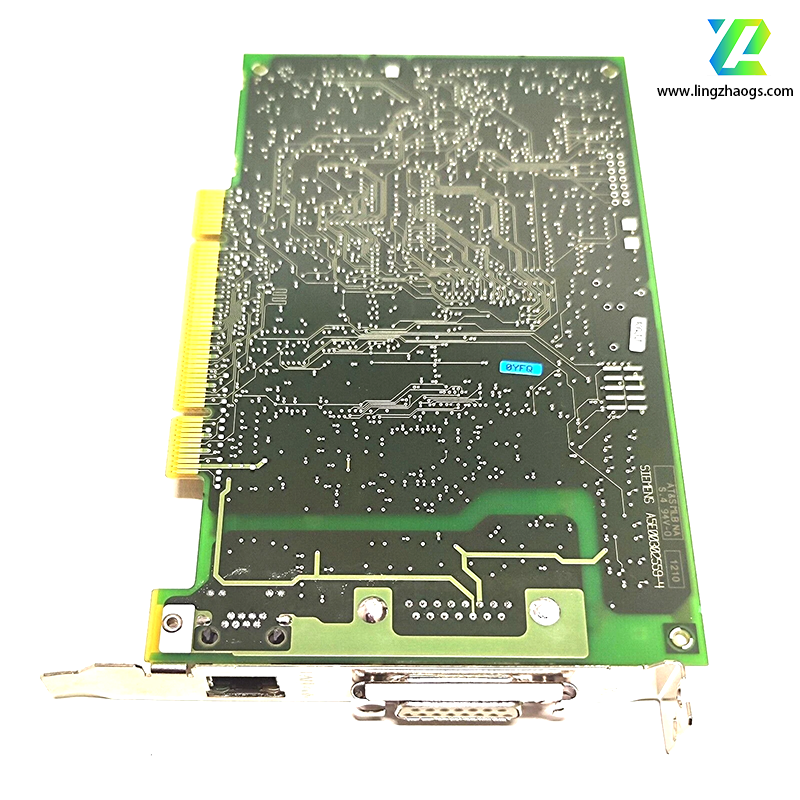

• Product Type: Industrial Ethernet Communication Processor (CP 1613)
• Function: Serves as an interface between industrial PCs (IPCs) or workstations and Profibus/Industrial Ethernet networks, enabling reliable data transmission in automation systems.
• Country of Origin: Germany

Technical Specifications

1. Interface & Connectivity

• Ethernet Interface: 1 x RJ45 port, supporting 10/100 Mbit/s (auto-negotiation, full/half-duplex)
• Protocols Supported:
  • Industrial Ethernet (TCP/IP, UDP)
  • Profibus DP (via software integration)
  • S7 Communication (for data exchange with SIMATIC S7 controllers)
  • OPC (for connecting to HMI/SCADA systems)
• Host Interface: PCI bus (32-bit, 33 MHz), compatible with standard industrial PCs.

2. Performance

• Data Transfer Rate: Up to 100 Mbit/s (Ethernet), ensuring high-speed communication for time-critical applications.
• Connection Capacity: Supports up to 128 simultaneous S7 connections, suitable for large-scale network architectures.

3. Operating Environment

• Temperature Range:
  • Operating: 0°C to +60°C (for industrial PC installations)
  • Storage: -25°C to +70°C
• Humidity: 5% to 95% (non-condensing)
• Electromagnetic Compatibility (EMC): Complies with EN 61000-6-2 (industrial immunity) and EN 61000-6-4 (emission), resistant to industrial interference.

4. Software Compatibility

• Configuration Tools: Compatible with STEP 7, SIMATIC NET OPC Server, and TIA Portal.
• Operating Systems: Supports Windows XP, Windows 7 (32/64-bit), and industrial-grade Windows Embedded Standard.

5. Mechanical Characteristics

• Dimensions (L×W×H): Approximately 168 mm × 107 mm × 22 mm (standard PCI card form factor)
• Weight: About 0.1 kg
• Mounting: Installed in a standard PCI slot of an industrial PC or workstation.

Functional Features

1. Industrial-Grade Reliability: Designed for harsh industrial environments, with robust components to ensure stable operation in conditions with vibration, temperature fluctuations, and electromagnetic interference.
2. Seamless Integration: Enables direct communication between industrial PCs and SIMATIC S7 controllers (S7-300/400/1200/1500) via S7 protocol, facilitating real-time data exchange.
3. Protocol Flexibility: Supports multiple industrial protocols, allowing integration with Profibus DP networks and Ethernet-based systems (e.g., Profinet) without additional hardware.
4. Diagnostic Capabilities: Provides built-in diagnostics via software tools, allowing users to monitor network status, connection quality, and error logs for quick troubleshooting.
5. Security Features: Supports data encryption and access control for critical communications, enhancing network security in industrial automation systems.

Application Areas

• Industrial Automation Networks: Connects industrial PCs to Ethernet/Profinet networks in factories, enabling data acquisition, remote monitoring, and control of production lines.
• HMI/SCADA Integration: Facilitates communication between SCADA systems and field devices (sensors, actuators, controllers) for centralized monitoring and data logging.
• Process Control: Used in chemical, petroleum, and pharmaceutical industries to link process control systems with higher-level management systems.
• Machine Building: Integrates into machine control systems to enable data exchange between local IPCs and distributed peripherals (e.g., via Profibus DP).
