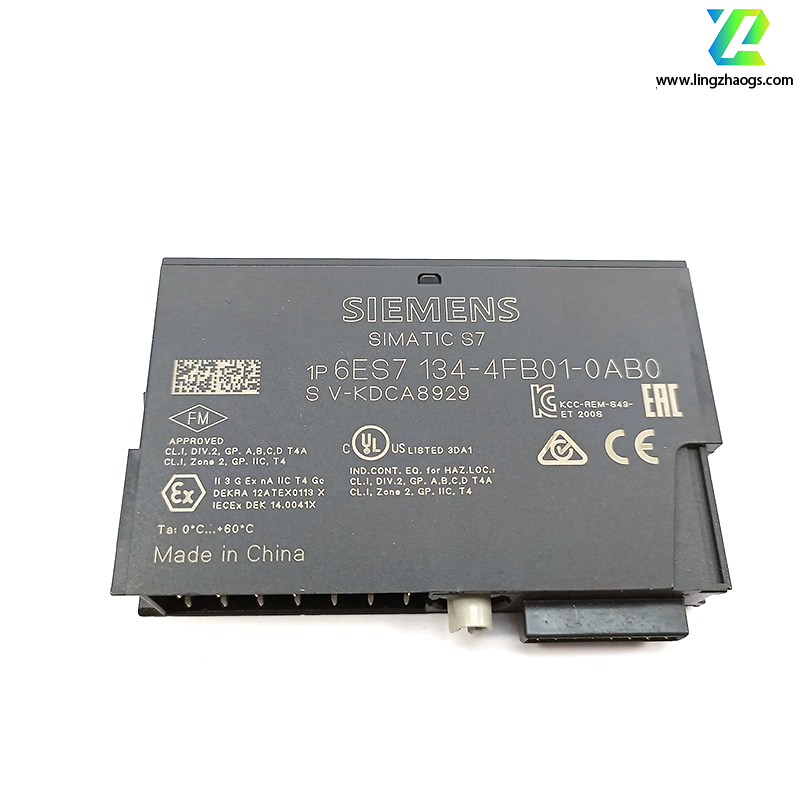

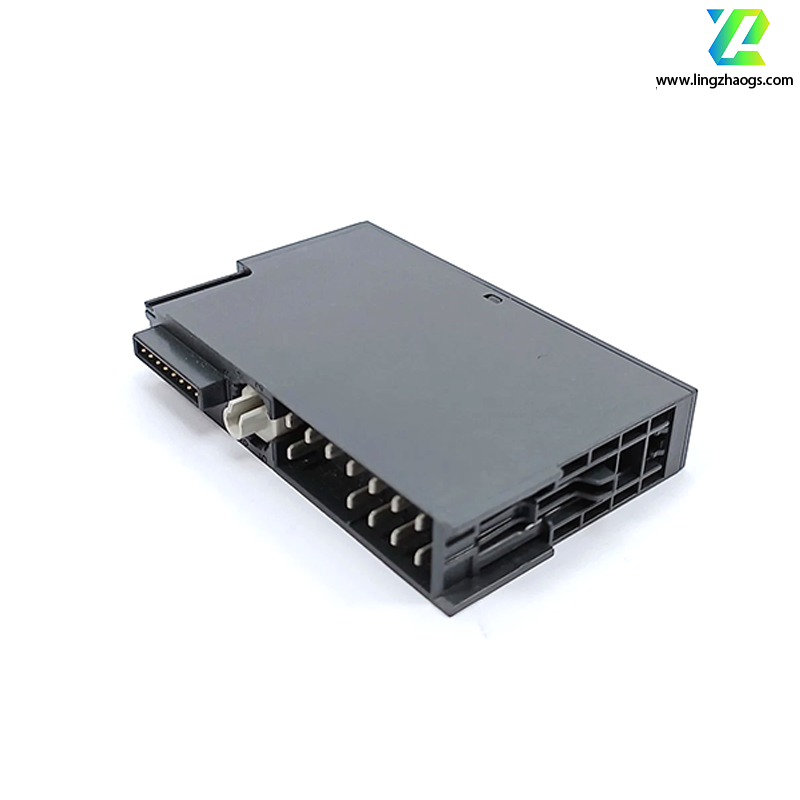

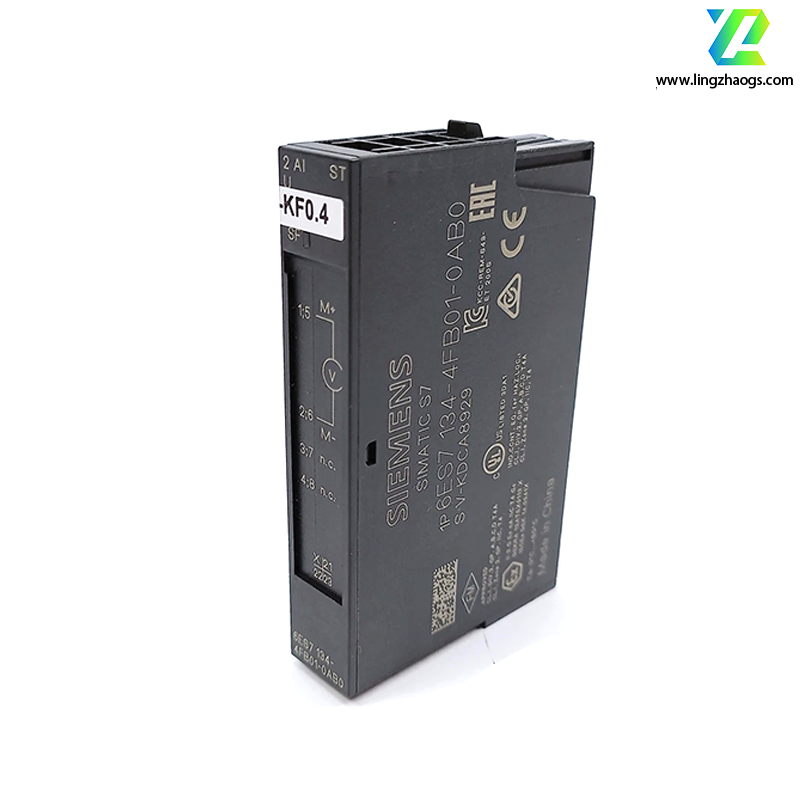

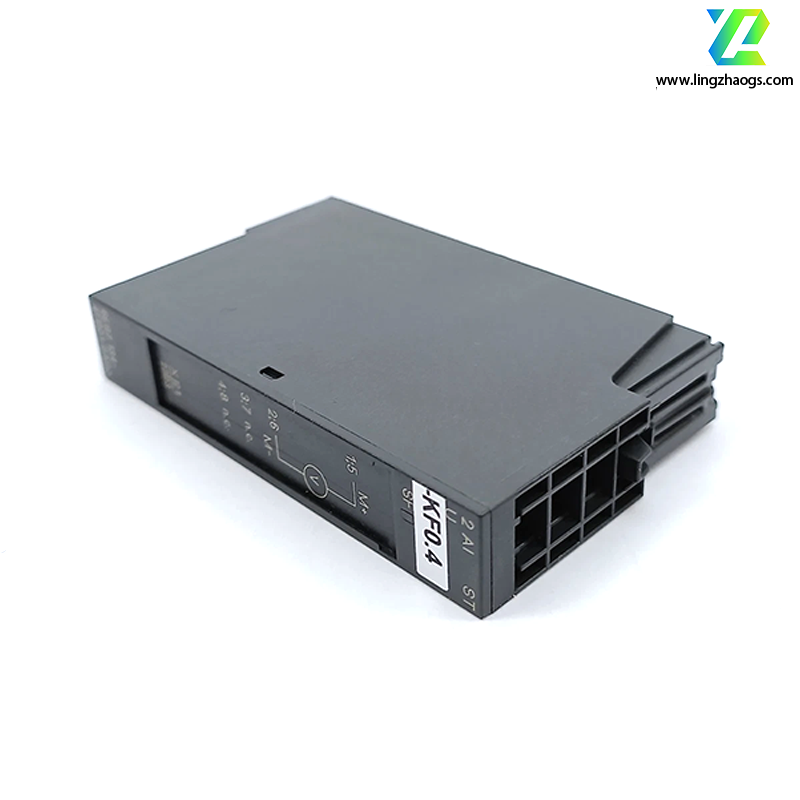

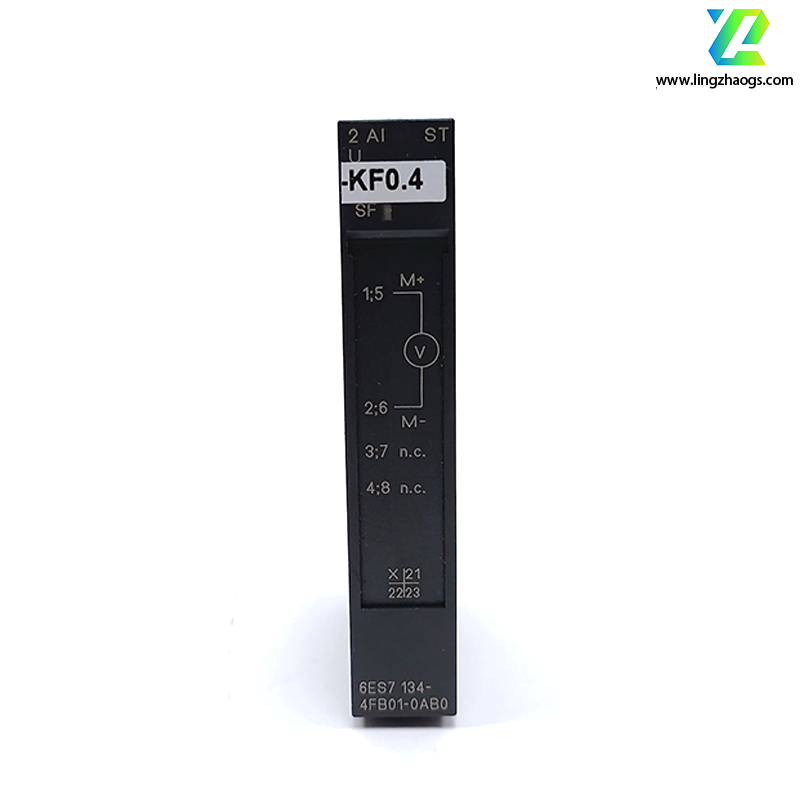

The Siemens 6ES7134-4FB01 is an analog input module belonging to the SIMATIC DP series, mainly used in the ET 200S distributed I/O system. Here is the detailed information in English:
- Brand: Siemens
- Model Number: 6ES7134-4FB01
- Product Series: SIMATIC DP
- Product Type: Analog Input Module for ET 200S
- Country of Origin: China
- Input Characteristics
- Input Channels: 2 analog input channels.
- Input Signal Range: Supports ±10V, ±5V, and 1 - 5V input signals.
- Input Resistance: 100kΩ for all input ranges.
- Resolution: 13 bits for ±5V input; 12 bits for ±10V and 1 - 5V inputs.
- Cycle Time: For 12 - bit resolution, the cycle time is 65 ms per channel.
- Accuracy and Error Limits
- Basic Error Limit: ±0.4% (at 25°C, with reference to the input range).
- Temperature Error: ±0.01% / K (with reference to the input range).
- Linearity Error: ±0.01% (with reference to the input range).
- Repeatability: ±0.05% (in steady state at 25°C, with reference to the input range).
- Power Supply
- Supply Voltage: Usually powered by the 背板总线 of the ET 200S system, and the voltage tolerance range is suitable for normal industrial DC power supply conditions.
- Operating Environment
- Temperature Range: -20°C to +60°C (operating).
- Humidity Range: 5% - 95% (non - condensing).
- Mechanical Characteristics
- Dimensions: Width × Height × Depth ≈ 15mm × 81mm × 52mm (compact design, saving installation space in control cabinets).
- Mounting Method: Installed on the ET 200S rack, easy to install and integrate with other modules in the system.
- Protection Level: IP20, which can prevent dust and small debris from entering the module interior.
- Signal Processing: It can perform high - speed analog - to - digital conversion, converting the analog signals input from external sensors into digital signals that can be recognized by the PLC for subsequent processing and control.
- Fault Indication: Equipped with an SF (Status Fault) LED indicator, which lights up when a group fault occurs, such as input over - range, sensor disconnection, etc., helping users quickly detect and troubleshoot problems.
- Configuration Flexibility: The input signal type and measurement range can be configured through the programming software (such as TIA Portal), which is convenient to adapt to different sensor characteristics and application requirements.
- Industrial Automation: Widely used in various industrial automation control systems, such as factory production lines, process control in the chemical industry, etc., for real - time monitoring and control of analog quantity signals such as temperature, pressure, and flow.
