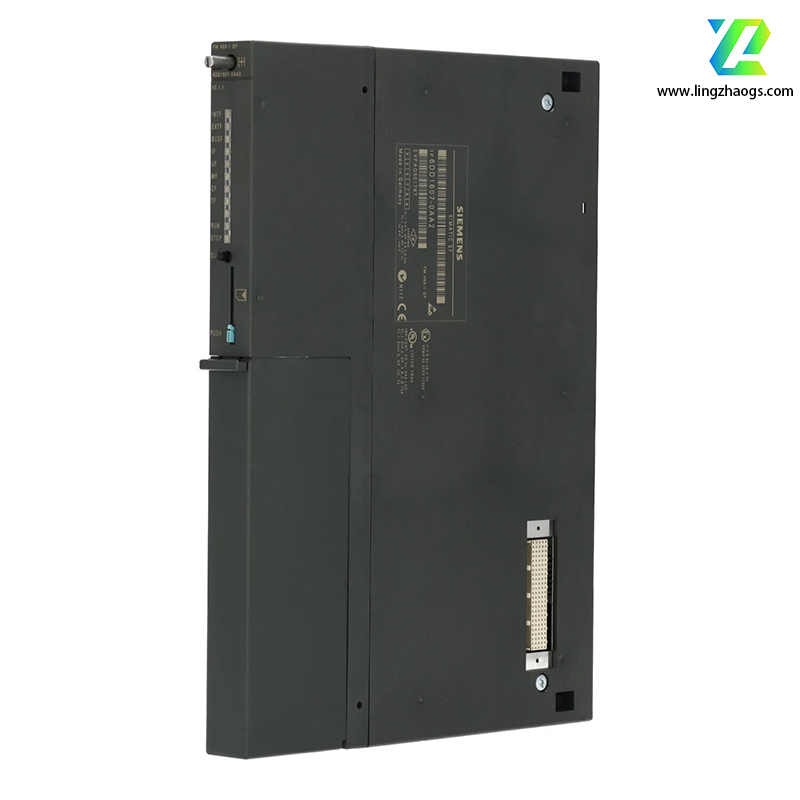

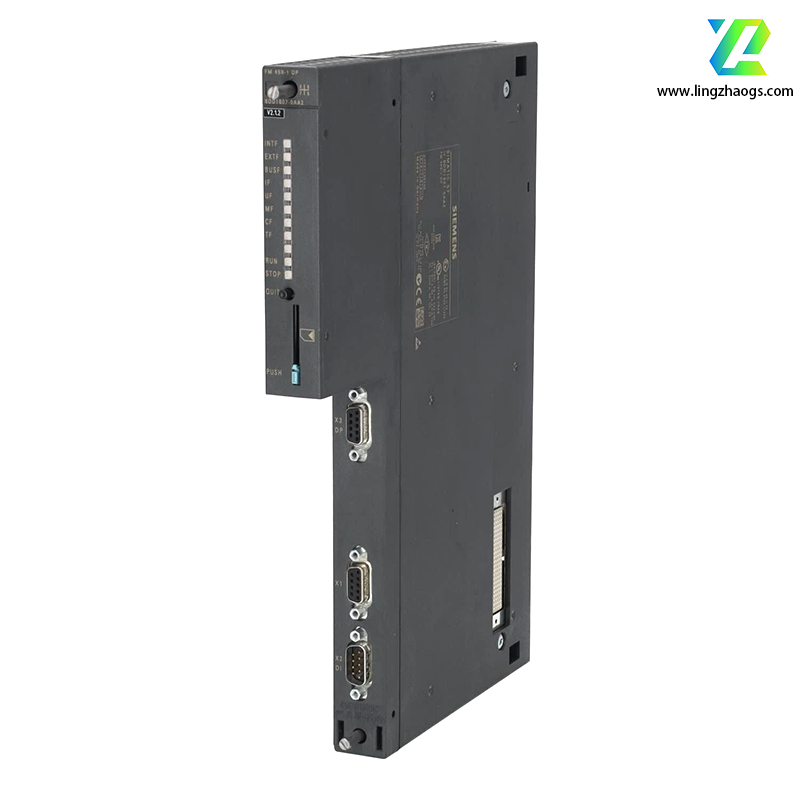

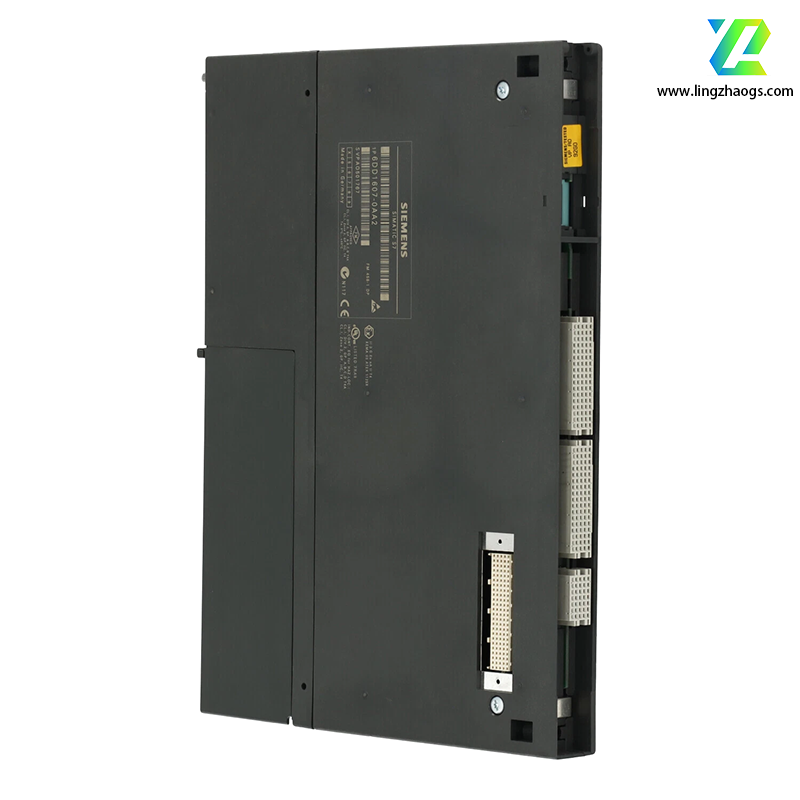

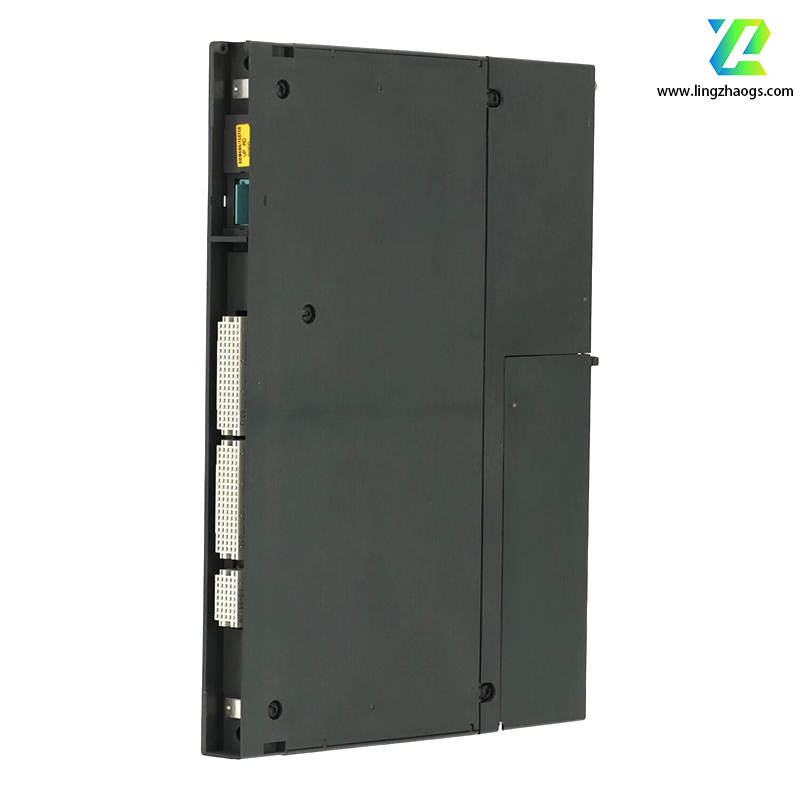

The Siemens 6DD1607-0AA2 is an application module belonging to the SIMATIC S7-400 series, specifically the FM458-1 DP application module. It is mainly used to handle complex automation tasks, especially in the fields of high-performance data processing and motion control. Here are the detailed contents in English:
- Brand: Siemens
- Part Number: 6DD1607-0AA2
- Product Type: SIMATIC S7-400, FM458-1 DP Application Module
- Processor: 64-bit RISC CPU
- Memory: 16MB DRAM, 64MB SDRAM, 512KB SRAM
- Input Voltage: 24V DC.
- Power Consumption: The typical power consumption is 12.5W. The voltage and current requirements are +5V/1.0A, +3.3V/0.05A, +12V/0.3A, and -12V/0.3A at 25°C respectively.
- Analog Output: 8 points, with an output voltage range of -10V to +10V and an output current of ±10mA. The resolution is 12 bits, and the general conversion time for each channel is 4μs.
- Analog Input: 8 points, and there are also 4 integrated analog input points.
- Digital Output: 16 points.
- Digital Input: 16 points.
- Encoder Input: 4 incremental encoder input points and 4 value encoder input points.
- Status Display: Equipped with 6 LEDs for status display.
- It supports the Profibus DP communication protocol through an RS-485 interface, and also has an RS-232 (V.24) interface and a dedicated X2 binary input interface, which is convenient for seamless integration into the existing control network.
- It has the functions of high-speed data acquisition and processing, and can handle complex logic operations and control tasks. With a 64-bit RISC central processing unit (CPU), this module ensures fast processing speeds and efficient handling of intricate control algorithms.
- It can be freely configured using the CFC (Continuous Function Chart) and optionally the SFC (Structured Control Chart). The module allows users to customize its functions according to specific needs, whether for advanced motion control applications or general industrial automation tasks.
- Size: The width is 24mm, the height is 290mm, and the depth is 210mm.
- Weight: Approximately 1.162kg.
It is suitable for motion control in numerical control machine tools, robots, and automated production lines, and can meet the real-time response requirements of industrial automation systems.
